ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard
ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard
Scan code: LN129792 Manufacturer code: PRIME B650-PLUS
£169.99
Add To Basket
Get it Friday, 06 DecIn stock
  • Thumbnail 1 : ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard
  • Thumbnail 2 : ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard
  • Thumbnail 3 : ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard
  • Thumbnail 4 : ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard

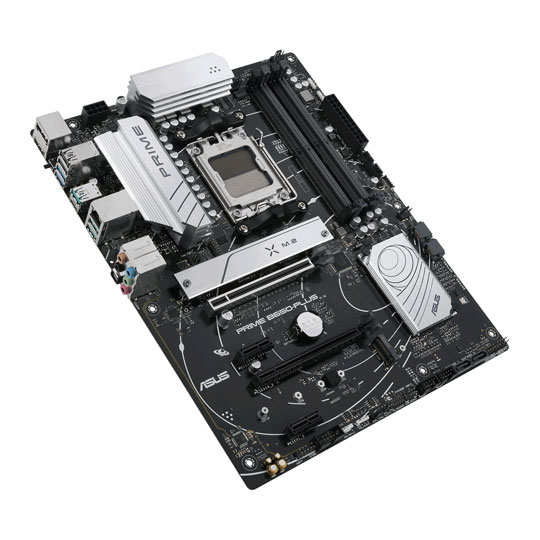

ASUS AMD PRIME B650-PLUS DDR5 ATX Motherboard

ASUS PRIME B650-PLUS, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, AMD EXPO™, ATX
MORE INFO
MORE INFO

Scan code: LN129792 Manufacturer code: PRIME B650-PLUS
£169.99
Order now and receive it by Friday, 6th December
Add To Basket
Get it Friday, 06 DecIn stock
  • By DPD On 6th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £14.17 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £14.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £169.99
    Total inc. interest: £169.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Frequently Bought Together

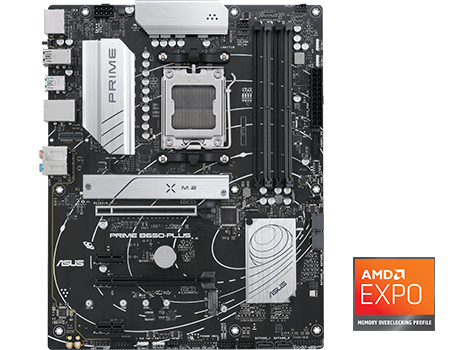

PRIME B650-PLUS AMD AM5 ATX Motherboard from ASUS

PRIME B650 Motherboard

The Latest Addition to the Prime SeriesASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. This AMD B650 motherboard features DDR5, PCIe 5.0 M.2 support, 2.5Gb Ethernet, DisplayPort, HDMI®, USB 3.2 Gen 2 Type-C®, BIOS FlashBack™, USB4® Support and Aura Sync. Boasting robust power design, comprehensive cooling solutions and intelligent tuning options, users and PC DIY builders are provided with a range of performance optimisations via intuitive software and firmware features.

AM5AMD Socket

B650Chipset

AMD Ryzen™ 7000 SeriesProcessors

ATXForm Factor

Outstanding Performance

Boost Your ProductivityThe PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

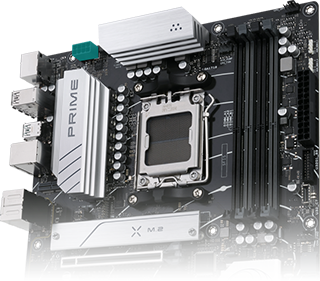

ProCool Connectors

ProCool ConnectorsProprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

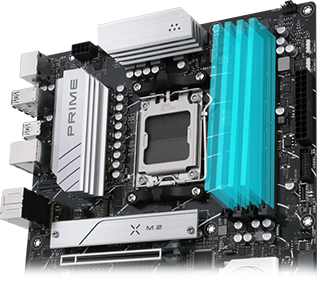

DDR5 Performance Enhancement

DDR5 Performance EnhancementComprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650-PLUS, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

Smart Protection

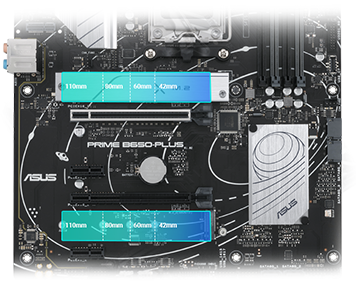

PCIe 5.0 M.2 SupportPRIME B650-PLUS offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.

Intelligent Control

FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.

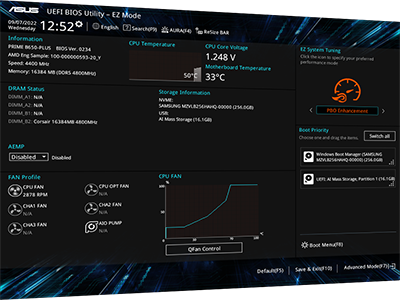

pbo

CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

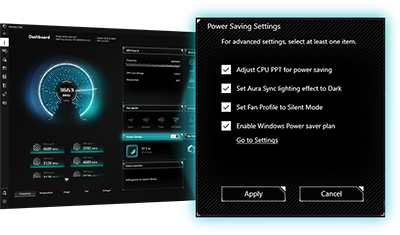

Power Saving

All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

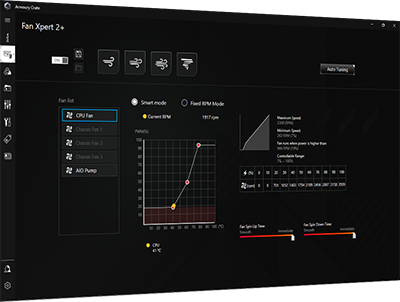

Fan Xpert 2+

Flexible Air-and Liquid-Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.

Fan Xpert 2+

Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

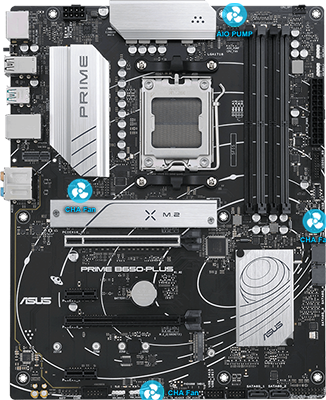

Cooler by Design

Configurable CoolingPrime B650 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

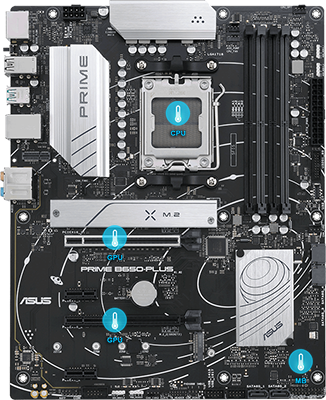

Multiple Temperature Sources

Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.

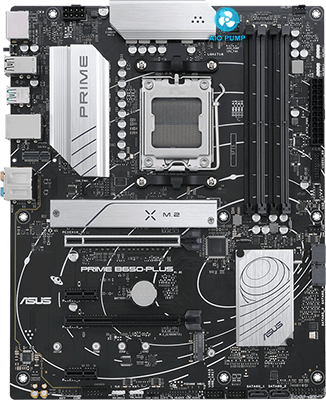

AIO Pump Header

AIO Pump HeaderA dedicated PWM/DC header for self-contained water-cooling setups.

Smart Protection

Smart ProtectionA dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

4-Pin PWM/DC FanEach onboard header supports auto-detection of PWM or DC fans.

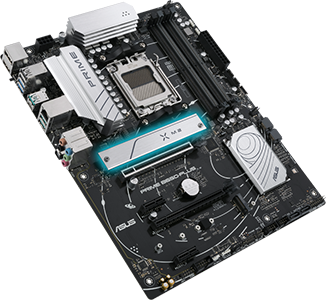

M.2 Heatsink

M.2 HeatsinkAn M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.

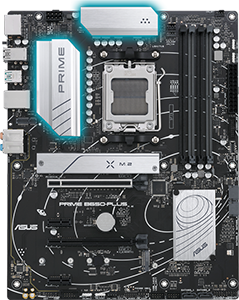

VRM Heatsinks

VRM Heatsinks and Thermal PadsVRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Add A Personal Touch

AURA SYNC

AURA SYNCA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware

Static

Static

Breathing

Breathing

Strobing

Strobing

Rainbow

Rainbow

Cycle

Colour Cycle

Starry

Starry Night

Music

Music Effect

Smart

Smart

Advanced Configuration Options

UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

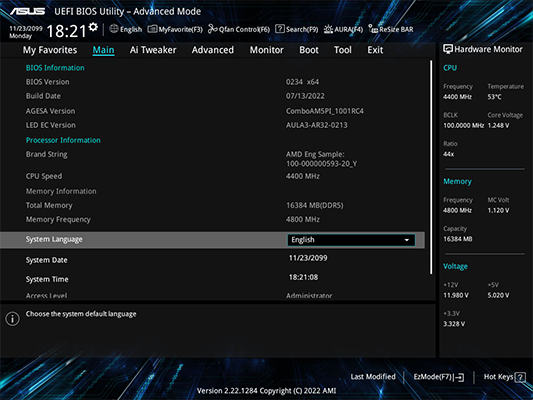

Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Advanced Tuning

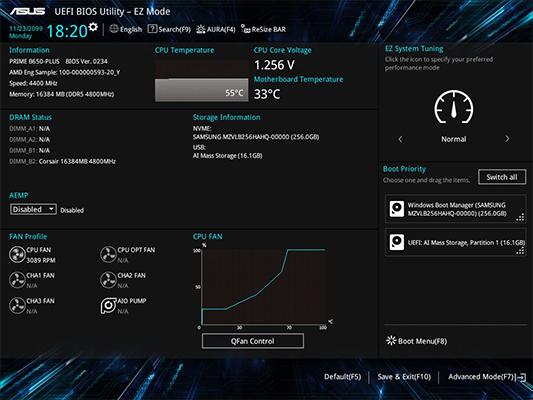

Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

EZ mode

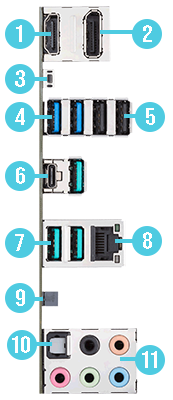

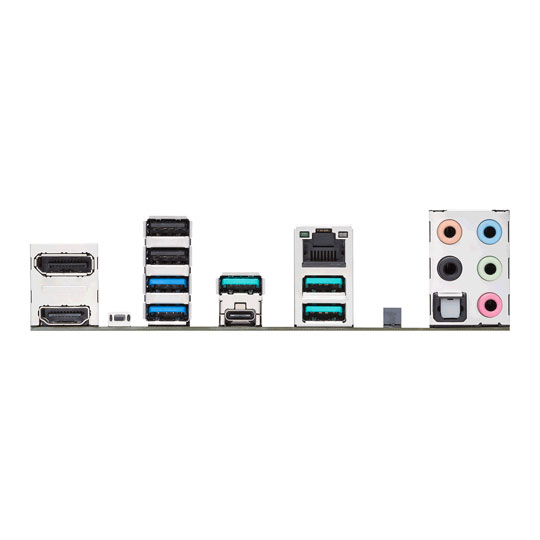

Lightning Fast Connectivity

back

1 - HDMI®
2 - DisplayPort
3 - BIOS FlashBack™ Button
4 - 2 x USB 3.2 Gen 1
5 - 2 x USB 2.0
6 - 1 x USB 3.2 Gen 2 Type-C®
7 - 3 x USB 3.2 Gen 2
8 - 2.5 Gb Ethernet
9 - Vertical M.2 slot (Key E)
10 - S/PDIF output
11 - 5 x Audio Jacks

Specifications
Core Specifications
Edition PRIME B650-PLUS
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 2 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Thunderbolt header
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN129792
Model Number PRIME B650-PLUS
GTIN 4711081923381
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
