ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard
Sale
ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard
Scan code: LN129786 Manufacturer code: 90MB1BP0-M0EAY0
Was: £226.99
£189.98
Get it Tomorrow, 05 DecIn stock
There are 10 people viewing this product
  • Thumbnail 1 : ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard
  • Thumbnail 2 : ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard
  • Thumbnail 3 : ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard
  • Thumbnail 4 : ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard
Sale

ASUS AMD Ryzen ROG STRIX B650-A GAMING WIFI AM5 PCIe 4.0 ATX Motherboard

ASUS ROG STRIX B650-A GAMING WIFI, AMD B650, AM5, DDR5, PCIe 4.0, 3x M.2, 2.5G/WiFi 6E, AMD EXPO™, ATX

Scan code: LN129786 Manufacturer code: 90MB1BP0-M0EAY0
Was: £226.99£189.98
Order now and get it tomorrow, Thu 5th Dec
Get it Tomorrow, 05 DecIn stock
  • By DPD On 5th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £15.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £15.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £189.98
    Total inc. interest: £189.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Frequently Bought Together

ROG STRIX B650-A GAMING WIFI Ryzen 7000 Series ATX Motherboard from ASUS

ROG STRIX B650 Motherboard

GET READY FOR THE NEWEST GENERATIONThe ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.

AMD B650Chipset

AMD AM5CPU Socket

AMD Ryzen 7000 SeriesDesktop Processors

ATXForm Factor

High Quality Power Design

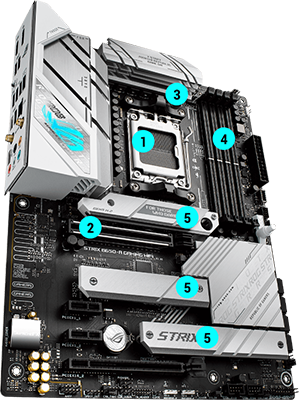

Breakdown

1 - AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
2 - 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 Slots
3 - 12 + 2 Power Stages
4 - DDR5 6400+ (OC)
5 - 1 x M.2 2242-2280 (PCIe 5.0 x4), 1 x M.2 2242-2280 (PCIe 4.0 x4), 1 x M.2 2242-22110 (PCIe 4.0 x4)

Experience All-Round Performance

Push frequency and timings to the max From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the ROG STRIX B650-A GAMING WIFI fully flexes AM5 and infuses AMD Ryzen™ 7000 Series processors with additional agility to plough through every task.

features

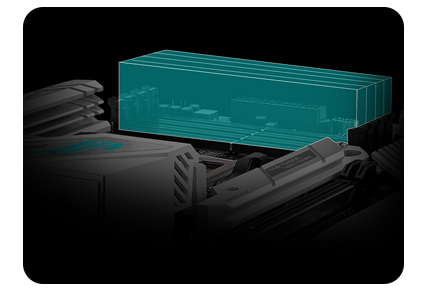

DDR5 Strength & AEMP FirmwareFor those who want to fly past stock DDR5 speeds, the Strix B650-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized profiles with higher frequency and tighter timings that you can effortlessly apply to unleash performance.

features

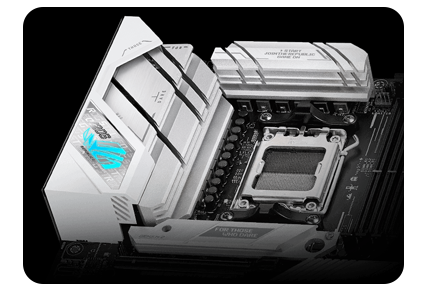

POWER ARCHITECTURE 12 + 2 power stages rated to 60A each deliver ample current in order to drive AMD Ryzen™ 7000 Series processors through any workload with ease. ALLOY CHOKES AND DURABLE CAPACITORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards. SIX-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

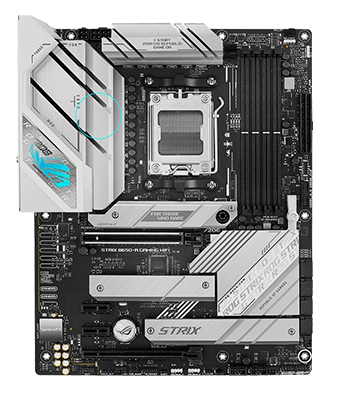

VRM

HIGH-CONDUCTIVITY THERMAL PADS High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures. Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 7000 Series processors.

heatsinks

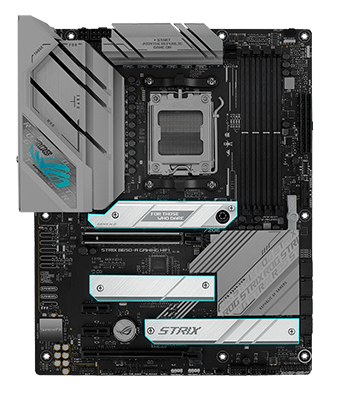

M.2 HEATSINKS Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

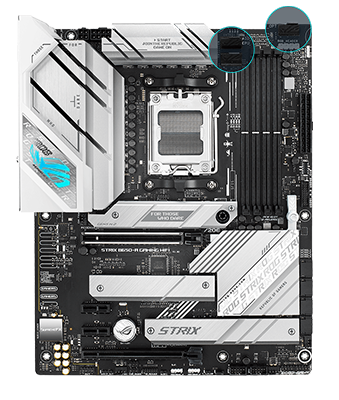

cpu

CPU fan headers A dedicated PWM/DC fan header provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.

chassis

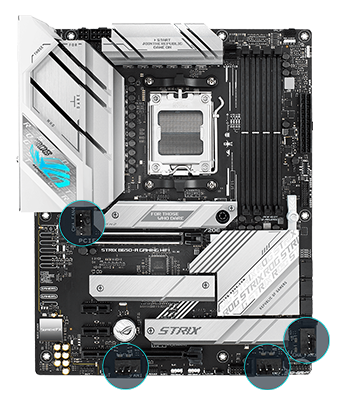

4-PIN FAN HEADERS Each header supports auto-detection of PWM or DC fans.

Outshine the Competition

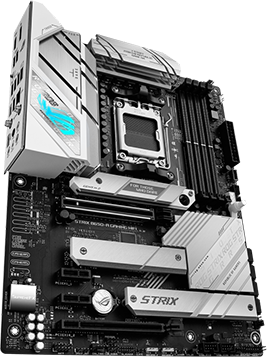

RGB

OUTSHINE THE COMPETITION ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Undeniably ROG Strix

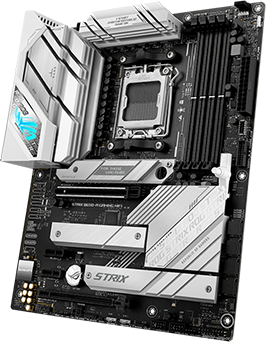

ID Design

The ROG Strix Ecosystem Awaits A bold silver and white aesthetic with a dash of RGB lighting delivers a build that looks as futuristic as its feature set. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. This design encompases the M.2 and chipset heatsinks as well, and the whole look is tied together with game-centric decals. Pair the Strix B650-A with other products from the diverse ROG ecosystem to create a fully-customised gaming setup that reflects your personal style.

Create a Fully Customised Gaming Setup

features

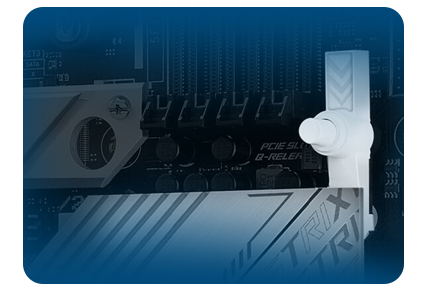

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card.

features

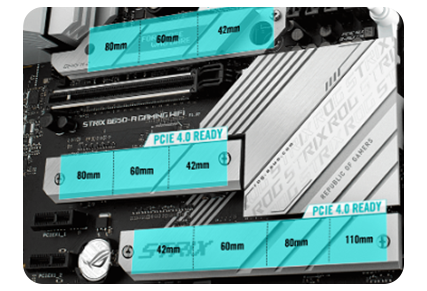

PCIe 5.0 PerformanceBlazing fast storage is at your command with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAIDXpert2. The top PCIe 4.0 x16 SafeSlot supports heavy graphics cards and features Q-Release for easy upgrades.

Supreme Networking Capability

Networking

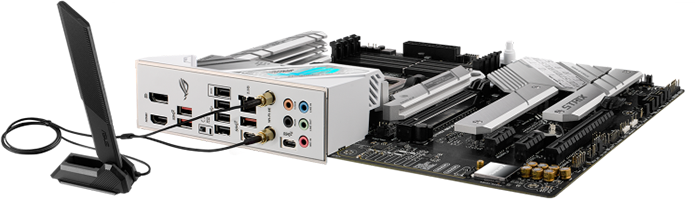

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

Fine-quality Components for Exceptional Clarity & Fidelity

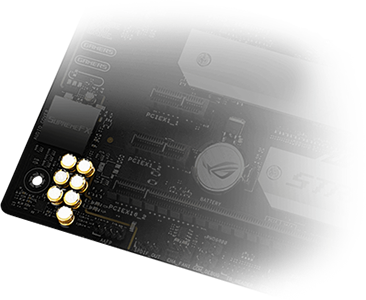

Audio

SUPREME FX ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

Leading Connectivity

Armed with all the essentials The ROG STRIX B650-A GAMING WIFI delivers a plethora of internal and external connectivity for low-latency networking and ultra-fast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Connectivity

I/O Ports 1 - 1 x HDMI® Port
2 - 1 x DisplayPort
3 - 4 x USB 3.2 Gen 2 Ports (2 x Type A)
4 - BIOS FlashBack™ Button
5 - 4 x USB 2.0 Ports (4 x Type-A)
6 - 2 x USB 3.2 Gen 2 Ports (1 x Type A, 1 x USB Type-C®)
7 - 1 x Intel® 2.5Gb Ethernet Port
8 - WiFi 6E
9 - 1 x USB 3.2 Gen 2x2 Port (1 x USB Type-C®)
10 - 5 x Audio Jacks

Connectors & Headers 11 - 1 x USB 3.2 Gen 2 Connector (Supports USB Type-C®)
12 - 1 x USB 3.2 Gen 1 Header (Supports 2 x USB 3.2 Gen 1 Ports
13 - 4 x SATA 6Gb/s Ports
14 - 2 x USB 2.0 Header (Supports 2 x USB 3.2 Gen 1 Ports)

Control your Rig with Armoury Crate

Armoury Crate

Account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX B650-A GAMING WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)
  • 1 x Intel® Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 50 x 244 mm
Note
Additional Information
Scan Code LN129786
Model Number 90MB1BP0-M0EAY0
GTIN 4711081917762
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
