Scan code: LN135338 Manufacturer code: 90DC00G3-B39010

ASUS PRIME AP201 MicroATX White Gaming Case

ASUS PRIME AP201, White, MicroATX Chassis w/ Tempered Glass, 1x 120mm Fan, USB 3.2 Gen2 Type-C, MicroATX/Mini-ITX

Thumbnail 1 : ASUS PRIME AP201 MicroATX White Gaming Case Thumbnail 2 : ASUS PRIME AP201 MicroATX White Gaming Case Thumbnail 3 : ASUS PRIME AP201 MicroATX White Gaming Case Thumbnail 4 : ASUS PRIME AP201 MicroATX White Gaming Case
Scan code: LN135338 Manufacturer code: 90DC00G3-B39010
Order now and receive it by Monday, 15th April
£89.99
Get it Monday, 15 AprIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Apr to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

PRIME AP201 MicroATX White Gaming Case from ASUS

PRIME AP201

GO BIG. STAY COMPACT. The ASUS Prime AP201 is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.



available in two coloursThe AP201 is available in either black or white, giving you options to create a rig that blends in or stands out.

Black AP201 white ap201

MicroATX / Mini-ITXMotherboard Form Factor

ATXPSU Support

1 x 120mmFans Included

MicroATXForm Factor

Breathe Freely

back

QUASI-FILTER MESH PANELSThe AP201 mesh design is comprised of over 57,000 precision-machined 1.5mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.

Optimized for Cooling

back

stay chilledWith support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

Specs, not Specks

back

removable dust filterThe two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.

Load Up

4K Recording

360mmRadiator

338mmGraphics Card Length

180mmPSU Length

INDUSTRY-LEADING SPATIAL EFFICIENCYDespite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.

Unrestricted Access

back

TOOL-FREE SIDE PANELSInstead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.

Tidy as you Like

back

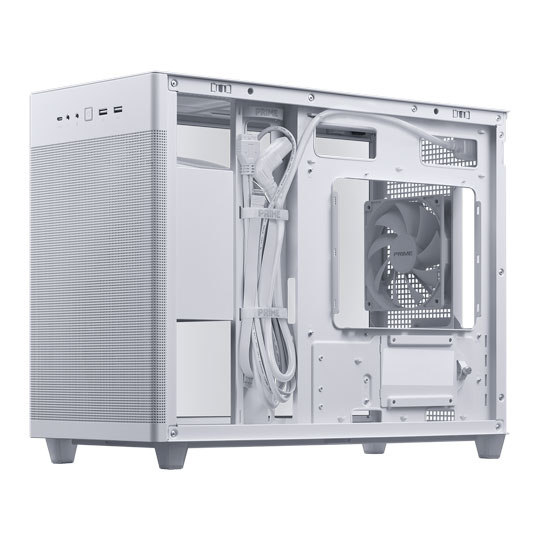

SIZEABLE CABLE-MANAGEMENTThe AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.

Nimble Connections

4K Recording

FRONT PANEL USB TYPE-C® SUPPORTIn addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards, users can use this port to enjoy transfer speeds of up to 10 Gbps.

Specifications
Core Chassis Specifications
Case Edition PRIME AP201
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 3 x 120mm
  • 3 x 120mm / 2x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters Bottom
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 170 mm
Max GPU Card Length 338 mm
Cable Routing Space 32 mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Front Mount
Max PSU Length 180 mm
Chassis Physical Specifications
Colour White
Chassis Construction Materials
Dimensions 205 x 350 x 460 (WxHxD mm)
Weight 5.8 kg (Approx)
