Scan code: LN53454 Manufacturer code: 90IG00R0-BM0G00

ASUS Wireless PCIe Adapter AC1900 with Triple desktop Antenna mount

ASUS PCE-AC68 Dual-band Wireless AC1900 PCI-E Adapter with 3 Antennas

Thumbnail 1 : ASUS Wireless PCIe Adapter AC1900 with Triple desktop Antenna mount Thumbnail 2 : ASUS Wireless PCIe Adapter AC1900 with Triple desktop Antenna mount
Scan code: LN53454 Manufacturer code: 90IG00R0-BM0G00
3xs Approved
£57.49
Add To Basket
In stock
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

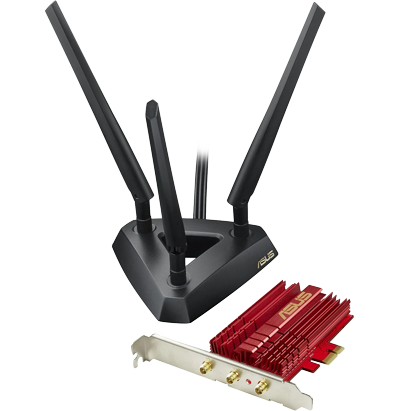

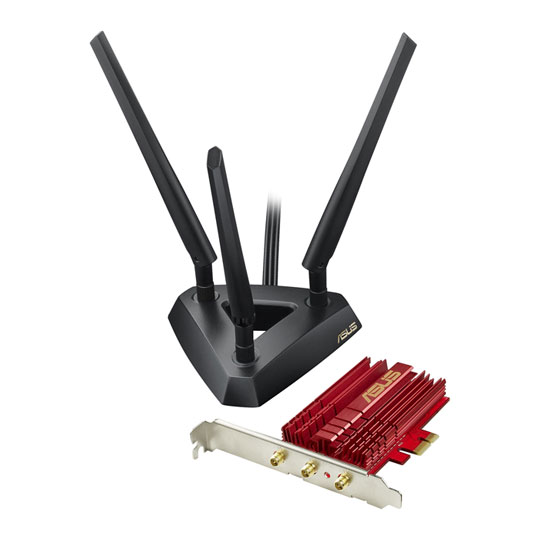

Product Overview The ASUS PCE-AC68 is a new 802.11ac Wi-Fi PCI Express adapter which upgrades your desktop from tangle-some Ethernet cables to carefree industry-leading 802.11ac at up to 1.3Gbps. Plus, the stylish external magnetized antenna base gives you more flexibility in adjusting antenna placement to get the best signal reception quality possible.


Next-generation Wi-Fi on both bands!
Broadcom TurboQAM™ hardware integrated on the PCE-AC68 brings the speed benefits of next-generation 802.11ac Wi-Fi to both 2.4GHz and 5GHz bands. At 600Mbit/s and 1.3Gbit/s respectively, they turn the PCE-AC68 into a formidable AC1900 wireless adapter, providing speeds that cannot be bettered by generic wireless adapters. Connect the PCE-AC68 to ASUS networks to attain the very highest possible Wi-Fi speeds.

Extend and strengthen your wireless connection

ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data-throughput speed, and enhanced stability. Wi-Fi-connection strength varies based on your environment, so the PCE-AC68 intelligently detects wireless router locations and ‘shapes’ data transmissions using three external antennas and high-powered beam-packing — assuring the fastest stable connection.

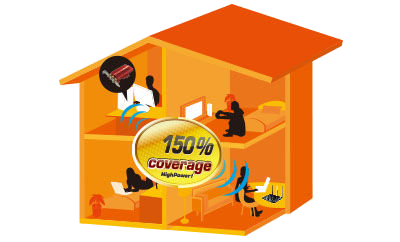

No more dead zones with 150% the coverage!
Powerful two-way transmission and a signal-boosting high-gain design give the PCE-AC66 improved two-way transmission that extends Wi-Fi range and coverage by up to 150% compared to generic client devices. This extended reach means the elimination of dead spots at any location, offering fast and uninterrupted HD streaming and smooth multiplayer gaming wherever you may be


Features http://www.asus.com/Networking/PCEAC68/specifications/

• 5th generation 802.11ac chipset gives you dual-band,2.4GHz/5GHz for up to super-fast 1.30Gbps

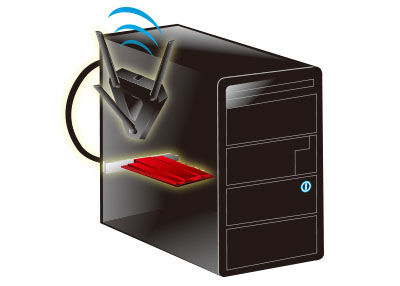

• Flexible extended antenna placement helps you pinpoint the best reception in your environment.
• Instant Wi-Fi upgrade for your desktop: no more messy Ethernet cables needed.
• High-power design clears up dead zones with 150% greater coverage

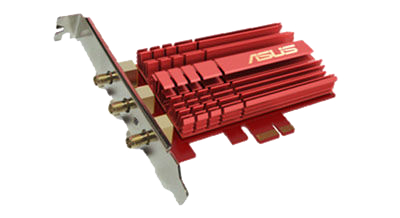

• Custom heatsink dissipates heat for more stable and reliable non-stop operation
Specifications
Interface PCI-E(x1)
Data Transfer Speed 1300 Mbps
Wireless Standards
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Frequency
  • 2.4 GHz
  • 5 GHz
Dual Band Yes
MU-MIMO Support No
Buttons
LED Indicators
Security
  • WEP (128 bit)
  • WEP (64 bit)
  • WPA-PSK
  • WPA2-PSK
Antenna External Antenna
OS Support
Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
