Scan code: LN97258 Manufacturer code: 90MC06P0-M0EAY0


ASUS HYPER M.2 Card V2, PCIe 3.0 x16, 4x M.2 PCIe 2242/60/80/110 Slots, Upto 128Gbps, Intel VROC + AMD Ryzen Support

Thumbnail 1 : ASUS HYPER M.2 PCIe x16 NVMe VROC RAID Card V2 Thumbnail 2 : ASUS HYPER M.2 PCIe x16 NVMe VROC RAID Card V2 Thumbnail 3 : ASUS HYPER M.2 PCIe x16 NVMe VROC RAID Card V2 Thumbnail 4 : ASUS HYPER M.2 PCIe x16 NVMe VROC RAID Card V2
Scan code: LN97258 Manufacturer code: 90MC06P0-M0EAY0
Order in the next 2 hrs 20 mins and get it tomorrow
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview


Hyper M.2 x 16 card V2 is compatible with Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen™ Threadripper™ platform for NVMe RAID support. Unused CPU PCle® lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.

Design for Unthrottled Transfer Speed

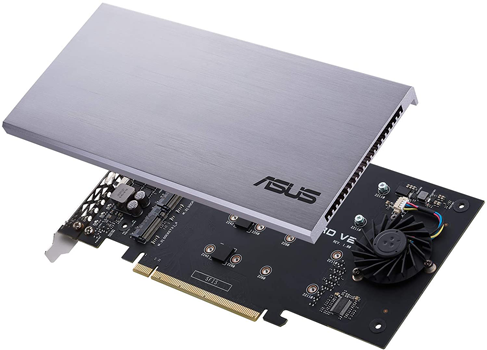

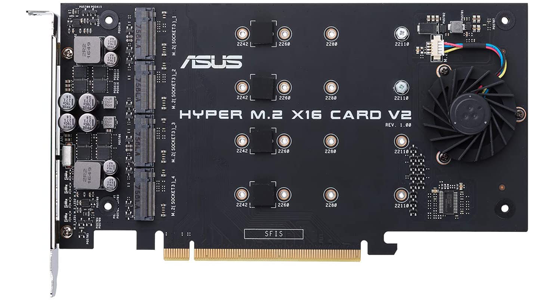

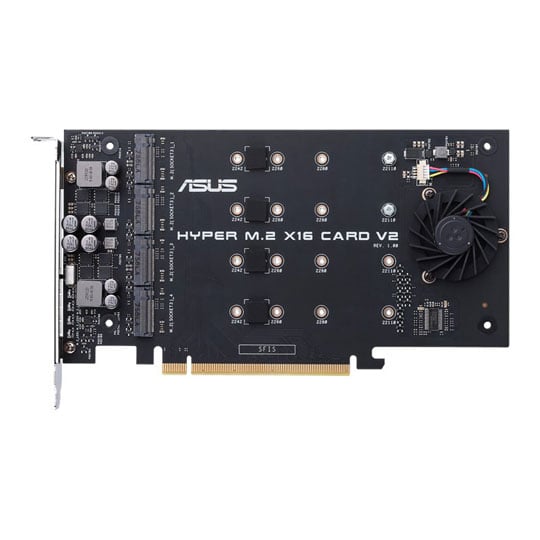

The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.

One Card - 4x the Bandwidth

Hyper M.2 x16 is designed specifically for Intel® Virtual RAID on CPU (VROC) and the AMD Ryzen™ Threadripper™ platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.

• New two-phase power solution with up to 14 Watt output supports the latest NVMe drives.
• Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability.
• Support for up to four PCIe® 3.0 M.2 drives with transfer bandwidth up to 128Gbps.
• Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes.

• Interface: PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps.
• External Connectors:4x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only).
• LED & Button: 1x M.2 FAN Power Switch, 4x M.2 access LEDs.
• Features: RAID function Support for:
- Intel® VROC ready for X299 & Z370 Series Motherboard models (It supports Intel® SSDs only.).
- AMD® X399/X470/B450/X370/B350 Series Motherboard models.
• Dimensions: 202 x 96 x 13 mm

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
01442 265548
Loading Please Wait

Please wait . . .

TekSpek Guides
System Buses & Bandwidth
System Buses & Bandwidth
Date Issued: 21st Oct 2008

In computing terms, system buses are used to connect various components to the motherboard’s core logic and, often, to each other. Modern PCs run with a multitude of high-speed buses ranging from the interconnects between, say, the chipset and the CPU, graphics card, memory, and peripherals.

Read More

Date Issued: 2nd Jul 2008

Serial ATA, or SATA, is a relatively new storage technology that is now being adopted in computers. It is the successor to Parallel ATA. SATA allows for faster transfers between the hard disk and the system, uses thinner cables and is easier to physically install

Read More

Date Issued: 14th Jun 2008

In this guide we will be examining a popular method used for increasing the performance and reliability of your hard drives and data storage

Read More

Gigabytes and Gibibytes
Gigabytes and Gibibytes
Date Issued: 23rd Aug 2005

If you've used a computer for any duration of time you'll have come across the terms “kilobyte, megabyte, gigabyte” and so on. Then there's “kilobit, megabit and gigabit” to add a bit of confusion and to top it all off you've maybe heard or read terms like “gibibyte” on occasion.

Read More

ASUS HYPER M.2 x16 Card V2, PCIe 3.0 x16, 4x M.2 PCIe 2242/60/80/110 Slots, Upto 128Gbps, Intel VROC + AMD Ryzen Support is rated 3.7 out of 5 by 3.
Rated 5 out of 5 by from Great kit that does the job as advertised While I have a motherboard with 2 NVME slots (1 occupied), installing another would have required removing the GFX card and soundcard to shift the heatsink plating. Plus, I wanted to have more than 2 drives, so this card provided the perfect solution. It is absolutely worth paying the extra cash than lower priced adapters for the cooling fan, heatsink and plating this one offers. Just make sure before you buy this, that your system can support this as it requires: A x16 PCI-Express 3.0 slot, and your BIOS needs to support Hyper M2 x16 mode if it is an Intel system (PCIe RAID Mode on an AMD system). If you have an ASUS BIOS like me, you can check this by going into the BIOS, pressing F7 for advanced mode, then going to the advanced section, then CPU Storage Configuration, and going to one of your PCI-Express slots to see if the Hyper M2 x16 option is available. There are mounting bolts for all 4 slots, though I found they were all hidden away in various bits of the box, so make sure to look carefully before discarding/storing it away! Worth noting as well that this card is for generation 3 NVME drives, so do not get this if you plan on buying generation 4 NVME drives, as you will not get the extra speed from the extra premium you would be paying for. At the time of this review, for a drive that offers the best between capacity, speed and value for money, I would highly recommend the Sabrent 2TB Rocket NVME M.2 2280 which comes in at around £240. It benchmarks at around 90% of the speeds of its Samsung EVO 2TB counterpart (but costs around £440) comes with a 5-year warranty, and links you to free drive cloning software should you need it. As a final note, while you can use NVME drives in a RAID setup, due to the latency caused by RAID drivers, you lose upwards of 40% of the speed gains you would otherwise enjoy than if you ran these drives all separately.
Date published: 2020-06-01
Rated 4 out of 5 by from Works well on Gigabyte X399 Designare Ex Solid build. Only concern is the tiny fan but the whole metal shroud acts like a heat sink any way so not concerned about heat. Fan is not too noisy but may irritate some - my GFX card fan is noiser so overrides it. There is a switch to turn off the fan. Fits into one slot only (16 lanes for 4 NVMEs, 8 lanes for 2 NVMEs). Make sure your motherboard has an updated BIOS that supports bifurcation (4x/4x/4x/4x for 16 lane slots, x4/x4 for 8 lane slots) and all should be good.
Date published: 2020-03-12
Rated 2 out of 5 by from Did not work on my MB Thought this would work with mu ASUS maximus X1 hero mother board, sorry to say, even on the PCIEx16 slot only one M.2 drive was shown.
Date published: 2020-01-23
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_97258, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Can this be used in any motherboard with a PCIEx16 Slot

it isn't clear from the description whether this can be used to add in M.2 SSD to any motherboard with a PCIEx16 slot - can it only be used for Intel Vroc or the Ryzen equivalent, or can it be used just to add M.2 storage?
Asked by: RickyKemp
In order for your system to be able to recognise more than a single disk connected to the card, the PCIe slot the card is plugged into must be "bifurcated" into 4x4x4x4 mode in the motherboard's BIOS / UEFI. Many motherboards do not support bifurcation. If that's the case with your motherboard, your only options are to either upgrade to a motherboard that supports bifurcation or buy a card that has bifurcation built in (which would probably cost the same as a new motherboard).
Answered by: FreeHat
Date published: 2020-04-04

Does it work on Mac Pro 5.1 on 16x pcie ?

Asked by: Macdi707
Good Morning, Unfortunately, we have not tested this so we would not be able to guarantee this would work, some similar devices we have tested have worked but will only show one drive. I would recommend speaking with Apple regarding this, they should be able to help you with this. Kind Regards,
Answered by: LukeW
Date published: 2019-10-11

Does this support OSX 10.15+?

Does this support OSX 10.15+? E.g. Mac OSX Catalina
Asked by: Hein
We would advise checking with the manufacturers website for up to date compatibility with your system.
Answered by: DavidScan
Date published: 2020-08-19

Is this card compatible with the Asus Sage x299 motherboard?

Asked by: Badger1
Good Afternoon, Yes, this should work fine with this motherboard for you. Kind Regards,
Answered by: LukeW
Date published: 2019-07-08

Would I be able to use this with two m.2 NVMe SSD's on my MSI Z97S Krait?

Asked by: Justin
Good Afternoon. From what I can see, this should work fine. Although, I would recommend logging a message with our technical support department to double-check this as they are more technically minded in that team. Kind Regards,
Answered by: LukeW
Date published: 2020-01-22
