Scan code: LN139412 Manufacturer code: PRIME H610M-A-CSM

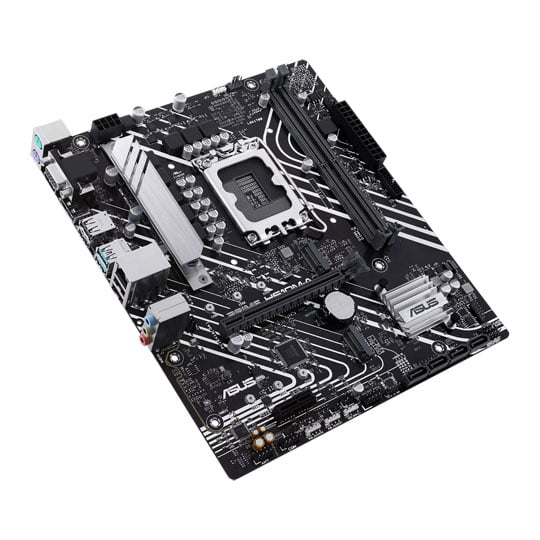

ASUS Intel H610M-A-CSM Micro-ATX Motherboard

ASUS H610M-A-CSM, Intel H610, S 1700, DDR5, SATA3, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen2, mATX

Thumbnail 1 : ASUS Intel H610M-A-CSM Micro-ATX Motherboard Thumbnail 2 : ASUS Intel H610M-A-CSM Micro-ATX Motherboard Thumbnail 3 : ASUS Intel H610M-A-CSM Micro-ATX Motherboard Thumbnail 4 : ASUS Intel H610M-A-CSM Micro-ATX Motherboard
Scan code: LN139412 Manufacturer code: PRIME H610M-A-CSM
£139.99Item currently awaiting an ETA
Pre order
From £12.69 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £12.69
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £152.16
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organisation to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Centre Express - server-grade IT management software.


ASUS Control Centre Express

ASUS Control Centre Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Centre Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimised solution for your business needs.


Optimise IT Endpoint Management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.


Automate IT Maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.


Securely Manage all of Endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.


Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.


All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimises power consumption and maximises energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.


Flexible Cooling Controls

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.


Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.


UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.


Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.


Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.


Cooling

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.


VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.


Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.


Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.


Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.


Dual M.2 slots (up to 32 Gbps)

PRIME H610M-A offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.


PCIe® 4.0

Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.


USB 3.2 Gen 2 Ports

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.


Intel® 1 Gb Ethernet

Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.


Two-Way AI Noise Cancelation

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.


Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.


Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.


Fortified PCIe Slot Prevents Damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.


World-Class Circuit-Protecting Power Design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.


3X Corrosion-Resistance for Greater Durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.


Pumped-Up Throughput 2.5X Higher Surge Tolerance

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Features

• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors.
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet and USB 3.2 Gen 2 support.
• Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
• ASUS Control Centre Express: Real-time IT monitoring and management software for enhanced data protection.

Specifications
Core Specifications
Edition PRIME H610M-A-CSM
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 5600
Max. Memory Capacity 96GB (2x48GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 2 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules

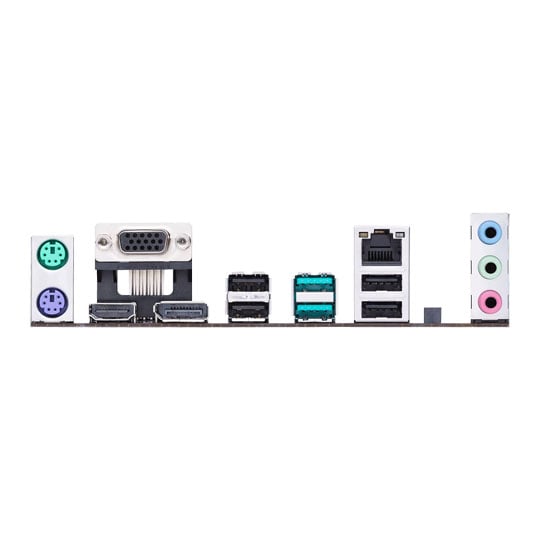

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN139412
Model Number PRIME H610M-A-CSM
GTIN 4711387293911
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
