ASUS ESC8000-E12-SKU2/3200W(3+1)

Eight Dual-Slot GPUs in a High-Density 4U Compute Server

ASUS ESC8000-E12, powered by Intel® Xeon® 6 dual-processors, delivers outstanding performance with top-tier GPUs, faster GPU interconnects, and a high-bandwidth fabric. This robust server directly supports up to eight dual-slot GPUs, available in both active and passive configurations, and provides flexible scalability through options like the NVIDIA® NVLink® Bridge. This setup ensures seamless scaling and performance optimization, making the ESC8000-E12 a perfect solution for handling demanding AI training and inferencing workloads.

Adaptable Storage Configurations

The ESC8000-E12 is designed to provide flexible and scalable storage solutions, supporting up to 32 DIMMs, two PCIe® 5.0 slots, two M.2 PCIe 5.0 slots and up to six 2.5-inch U.2 NVMe drives with optional RAID/HBA card. This configuration enables organizations to tailor their storage infrastructure to meet diverse workload demands, ensuring optimal performance and capacity.

Intel Xeon 6 Processors

Intel Xeon 6 processors represent a significant leap forward in performance and efficiency, specifically designed to meet the demands of advanced AI, networking and data center workloads. Featuring an all-P-core architecture, these processors deliver exceptional computational power, enabling enterprises to tackle the most demanding applications with ease. With support for high-speed DDR5 memory and PCIe 5.0 I/O, the Intel Xeon 6 processors ensure seamless scalability and enhanced data throughput, making them ideal for modern high-performance environments. Additionally, their optimized energy efficiency and robust design cater to the evolving needs of next-generation data centers, solidifying Intel's leadership in AI and networking solutions.

Optimised Server Configuration

Delivering next-level performance and an optimised configuration, ESC8000-E12 is designed to meet the demands of modern workloads. With two direct-connected PCIe 5.0 slots, this server enables seamless integration of high-bandwidth PCIe NICs and DPUs for unparalleled performance scaling. Enhance your storage capabilities with flexible RAID options, supporting up to six U.2 NVMe with an optional HBA/RAID card for data back-up and protection. Whether you're handling data-intensive applications or accelerating compute workloads, ESC8000-E12 delivers the power and flexibility you need to stay ahead.

Effortless Maintenance with A Toolless Design

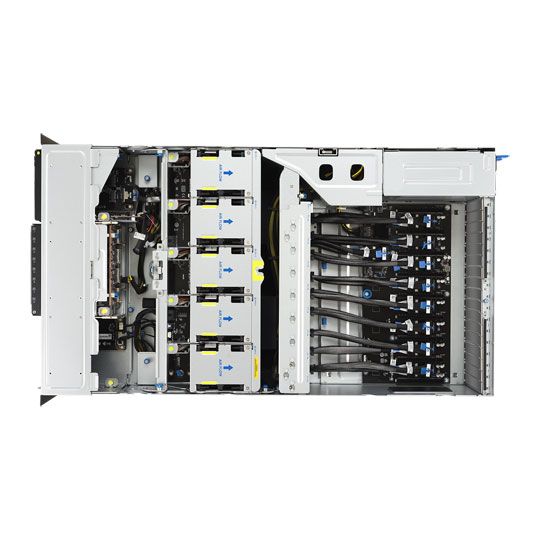

Designed for easy maintenance with a refined mechanical structure, ESC8000-E12 allows the entire machine to be disassembled completely without tools – with even the RAID card being easily disengaged from the connector.

Server-Management Solution

Remote Server Management
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.

Trusted Platform Module 2.0
ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

• High-performance server configuration: Supports Intel Xeon® 6 processors featuring 86 cores, eight-channel DDR5 memory up to 6400MHz and a maximum TDP of 350 watts per socket.
• High-density 4U server: Designed to support up to eight high-end GPUs in dual-slot configurations and supports up to 600 watts each, ideal for handling demanding workloads.
• Optimized Performance: GPU, NIC/DPU, and dual M.2 boot drives are directly connected to the CPU, minimizing latency and enhancing speed without occupying storage.
• Flexible storage options: Supports up to six 2.5-inch U.2 NVMe drives with customizable hardware RAID configurations, delivering scalable and high-performance storage solutions.
• Optimized design: Efficiently handles diverse workloads by supporting high-bandwidth NICs and DPUs to ensure superior performance and efficient data processing.
• Efficient maintenance: Features ASUS-exclusive toolless design for streamlined maintenance and maximum efficiency.
• Advanced management: Includes ASUS Control Center IT-management software and a hardware-level Root-of-Trust solution to enhance security and control.
