ASUS Chromebox 5 Intel Core i5 Mini PC

ASUS Chromebox 5 G5104UN Mini PC, i5-1240P, Iris Xe Graphics, 8GB DDR4, 128GB NVMe M.2, WiFi 6E, 2.5 GbE, USB 3.2 Gen2

Thumbnail 1 : ASUS Chromebox 5 Intel Core i5 Mini PC Thumbnail 2 : ASUS Chromebox 5 Intel Core i5 Mini PC Thumbnail 3 : ASUS Chromebox 5 Intel Core i5 Mini PC Thumbnail 4 : ASUS Chromebox 5 Intel Core i5 Mini PC
Scan code: LN135451 Manufacturer code: 90MS02N1-M002B0
Order now and receive it by Friday, 14th June
£769.99
Get it Friday, 14 JunIn stock
From £26.97 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £69.76
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £769.99
Total inc. interest: £837.09
Monthly Payment: £37.60
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £769.99
Total inc. interest: £902.29
Monthly Payment: £26.97
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £769.99
Total inc. interest: £970.58
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £20.46 / month (APR 19.9%)
Delivery Options
  • By DPD On 14th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS Chromebox 5 Intel Core i5 Mini PC

ASUS Chromebox 5

Ready for Any Task ASUS Chromebox 5 offers outstanding performance and instantaneous response for incredible productivity. It's powered by a 12th Gen Intel® Core™ i5 processor that delivers blistering processing speeds to cater to the most demanding tasks. And with 8 GB DDR4 memory, ASUS Chromebox 5 enables easy multitasking without slowdowns.

In addition, Intel UHD graphics deliver unmatched processing power for stunning, super smooth visuals. A PCIe® Gen 4 x4 M.2 SSD provides ultrafast data transfers and app launches.

Overall, ASUS Chromebox 5 offers an exceptional user experience that combines superior performance and cutting-edge features for next-level productivity.

Intel Core i5Processor

Intel UHDGraphics

8GBDDR4 Memory

128GBM.2 PCIe NVMe SSD

Aesthetic Design

4K Recording

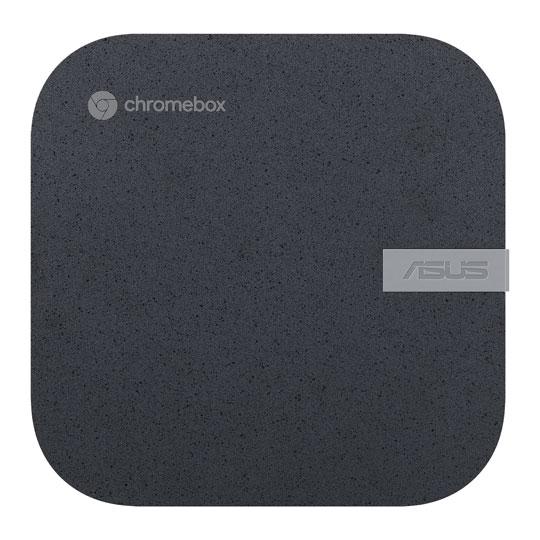

small & sleekThe ASUS Chromebox 5 has an aesthetic that's both stylish and eco-friendly, with a sleek single-piece top cover made entirely of recycled plastic. ASUS Chromebox 5 also features a textured, scratch-resistant finish that maintains its pristine look for longer. The new Chromebox is a smart and sustainable choice for organizations looking to upgrade their IT fleet.

Impressive Connectivity

4K Recording

Quad-display with True 4K UHDASUS Chromebox 5 is able to support up to four 4K displays, allowing users to extend their workspace for improved productivity.

Even More Convenient

4K Recording

concealed wireless chargerFor added convenience, ASUS Chromebox 5 has a built-in WPC-certified Qi wireless charger that provides up to 15-watt output. Plus, a Foreign Object Detection (FOD) feature ensures the charger only works when a compatible device is detected, preventing overheating or damage to a non-compatible device.

Lightning-fast Thunderbolt™ 4

DJI Air 3 Drone

40 Gbps Thunderbolt™ 4

DJI Air 3 Drone

DisplayPort 1.4

DJI Air 3 Drone

15W to bus-powered devices

unmatched speedsThunderbolt™ 4 connectivity offers users unrivaled versatility with ultrafast speeds. It supports USB-C® Power Delivery and provides data transfer speeds of up to 40 Gbps when connected to high-performance peripherals. It can be used in tandem with the included two HDMI ports and DisplayPort to support up to four displays.

Enterprise-Grade Protection

DJI Air 3 Drone

Titan C security chipThis security chip is designed to keep ASUS Chromebox 5 secure, protect user identity and ensure the integrity of the system.

DJI Air 3 Drone

Kensington lock slotThis anti-theft feature makes it easy to secure ASUS Chromebox 5 in a designated location.

To protect vital business and personal data, ASUS Chromebox 5 offers comprehensive business-grade security — ranging from integrated hardware and firmware to software and physical protection. To ensure maximum reliability and durability, ASUS Chromebox 5 has been tested through military standard MIL-STD-810H

Specifications
Edition Chromebox 5 G5104UN
Form Factor
CPU Included Yes
CPU Type Intel Core i5
CPU Model 1240P
Architecture Alder Lake 12th Gen
Manufacturing Process 10 nm
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency 4.4 GHz
CPU Cache 12MB
CPU Cooler
TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4
Memory Included Yes
Memory Capacity Included 8GB (2x4GB)
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip Intel® Iris® Xe Graphics
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included Yes
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity 128GB
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x MicroSD Slot
  • 2 x USB 3.2 Gen2 Type-A

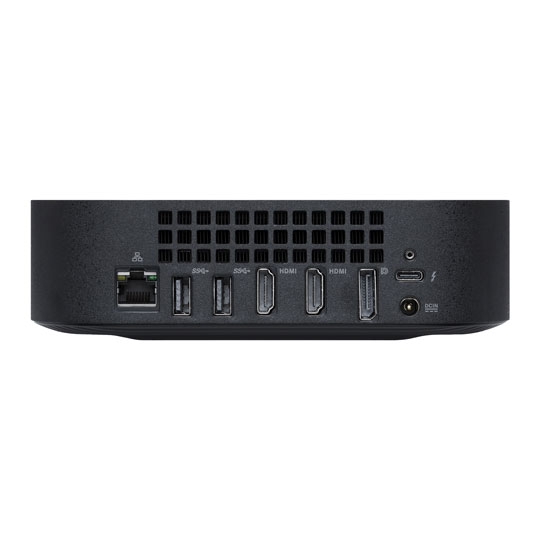

Back Panel
  • 1 x DC-In Jack
  • 1 x DisplayPort
  • 2 x HDMI
  • 1 x RJ-45
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 4.0 Type-C/Thunderbolt 4
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 150 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included Yes
Operating System Chrome OS
Colour Black
Dimensions 166.5 x 165.8 x 45.9 mm (mm WxHxD)
Weight 0.6 kg
Includes
Notes
Additional Information
Scan Code LN135451
Model Number 90MS02N1-M002B0
