Scan code: LN121059 Manufacturer code: 90-MXBHY0-A0UAYZ

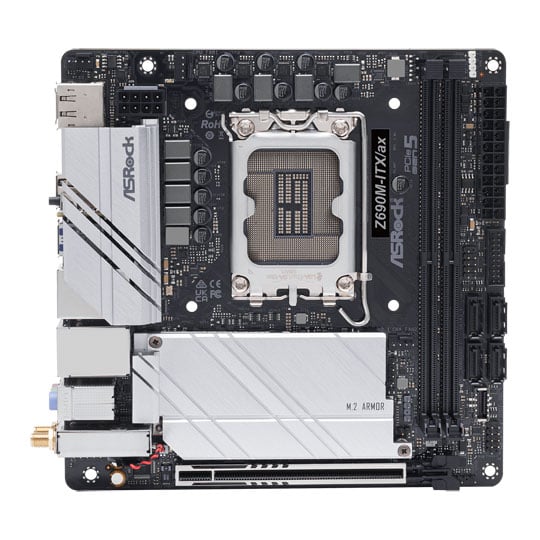

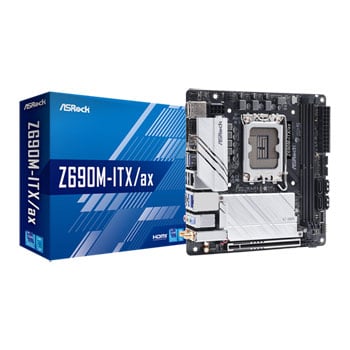

ASRock Intel Z690M-ITX/ax mITX Motherboard

ASRock Z690M-ITX/ax, Intel Z690, S 1700, DDR4, SATA3, PCIe 5.0, 2x M.2, 2.5GbE, USB 3.2 Gen2x2, Mini-ITX

Thumbnail 1 : ASRock Intel Z690M-ITX/ax mITX Motherboard Thumbnail 2 : ASRock Intel Z690M-ITX/ax mITX Motherboard Thumbnail 3 : ASRock Intel Z690M-ITX/ax mITX Motherboard Thumbnail 4 : ASRock Intel Z690M-ITX/ax mITX Motherboard
Scan code: LN121059 Manufacturer code: 90-MXBHY0-A0UAYZ
£229.99Item due on 07 December 2021
Due 7th Dec
From £9.59 / month (APR 0%) or 0% for 4 months
Monthly Payment: £19.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £229.99
Monthly Payment: £9.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £229.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

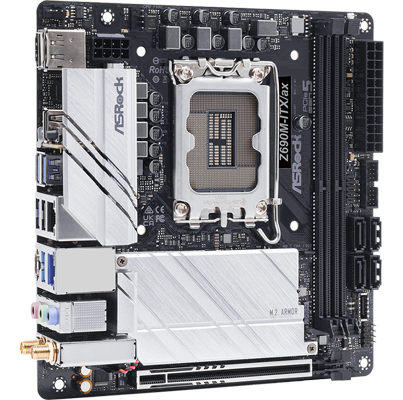

ASRock Z690M-ITX/ax DDR4 12th Gen Intel m-ITX Motherboard

ASRock Z690

Compact Size, Powerful Performance The ASRock Z690M-ITX/ax is here to herald the arrival of the new 12th generation Intel core processors; with a new generation comes new performance thresholds and ASrock aren't shy when it comes to implementing new technologies. The Z690M-ITX/ax boasts an 8 phase DR. MOS power design, supports DDR4 5000 MHz (OC) memory, PCIe 5.0, incredible storage support with 2x Gen4x4 m.2, Dragon 2.5G LAN, Wifi 6E & Type-C connectivity and HD audio. Plus with Polychrome RGB support you can sync compatible LED illuminated devices together to create your own beautiful lighting ecosystem using the onboard RGB and ARGB headers. Perfect for daily users and enthusiasts alike Welcome the Z690M-ITX/ax.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

Mini-ITXForm Factor

Heavily Optimised VRM Design

Optimised VRM Design

DR. MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

The Latest Generation

PCIe 5 technology

PCIe 5.0 + Surface-Mount TechCompared to the conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximises stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Maximise Your Storage Capabilities

4K Recording

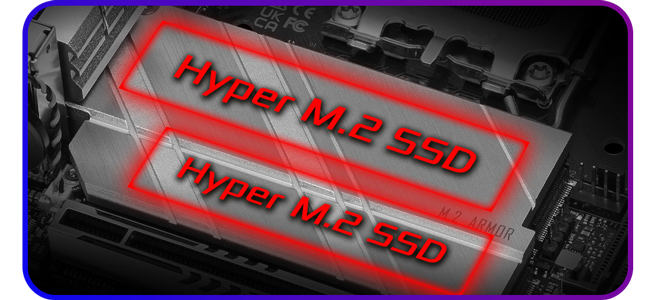

Pcie gen4 x4 for SSDThis motherboard is capable of accommodating multiple M.2 storage devices, both of which can support PCI Express 4.0 M.2 SSD, capable of performing at twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Stay Connected with Ease

4K Recording

Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Superspeed Your Network

4K Recording

Wi-Fi 6E 802.11axWiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Surround yourself in Stunning Sound

4K Recording

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Create a Beautiful Ecosystem

4K Recording

Polychrome RGB Sync SupportThis motherboard features onboard RGB headers and an addressable RGB header that allows your motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

Specifications
Core Specifications
Edition Z690M-ITX/ax
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 5000+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Dragon RTL8125BG (2.5GbE LAN)
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2

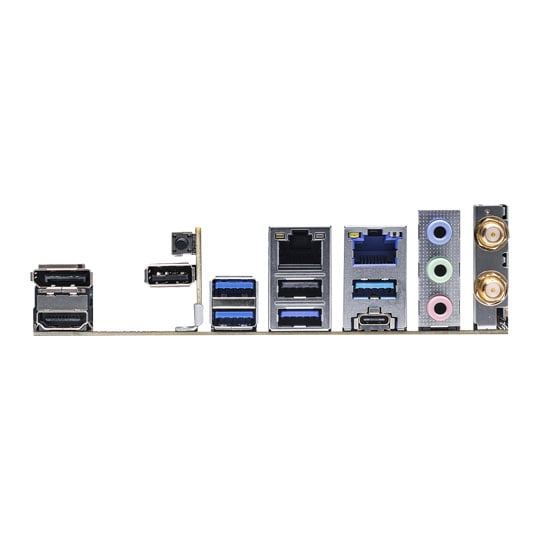

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN121059
Model Number 90-MXBHY0-A0UAYZ
GTIN 4710483936180
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
