Scan code: LN121054 Manufacturer code: Z690 Taichi Razer Edition DDR5

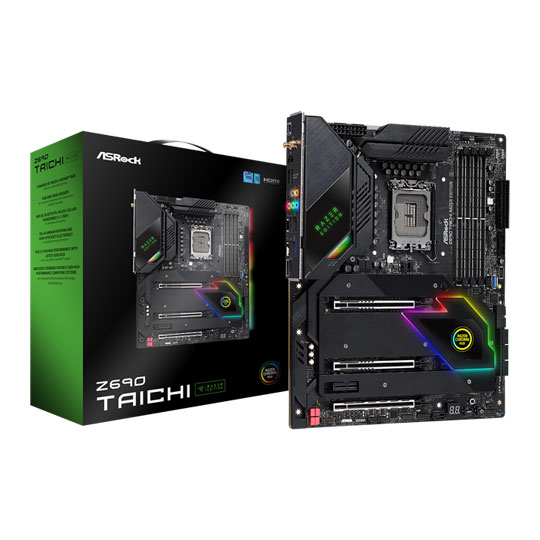

ASRock Intel Z690 Taichi Razer Edition ATX Motherboard

ASRock Z690 Taichi Razer Edition, Intel Z690, S 1700, DDR5, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, TB4, ATX

Thumbnail 1 : ASRock Intel Z690 Taichi Razer Edition ATX Motherboard Thumbnail 2 : ASRock Intel Z690 Taichi Razer Edition ATX Motherboard Thumbnail 3 : ASRock Intel Z690 Taichi Razer Edition ATX Motherboard Thumbnail 4 : ASRock Intel Z690 Taichi Razer Edition ATX Motherboard
Scan code: LN121054 Manufacturer code: Z690 Taichi Razer Edition DDR5
£559.99Item due on 07 December 2021
Due 7th Dec
From £15.56 / month (APR 0%) or 0% for 4 months
Monthly Payment: £46.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £559.99
Total inc. interest: £559.99
Monthly Payment: £23.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £559.99
Total inc. interest: £559.99
Monthly Payment: £15.56
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £559.99
Total inc. interest: £559.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.99 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

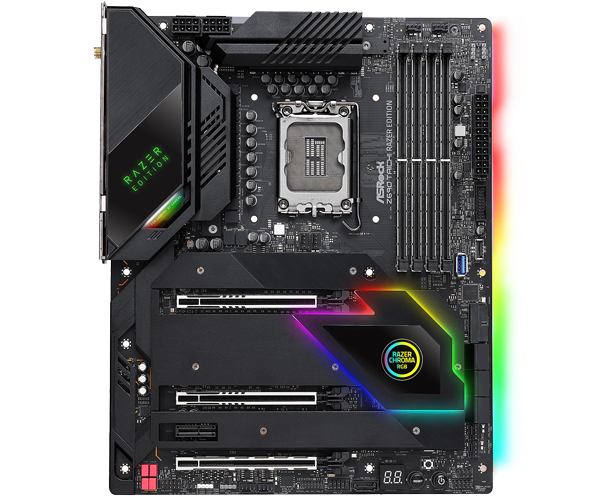

ASRock Z690 Taichi Razer Edition Intel 12th Gen ATX Motherboard

ASRock Z690 Taichi Razer Edition ATX Motherboard

For Gamers. By Gamers. Introducing the new Z690 series of ATX motherboards from ASRock. The COOLEST flagship motherboard, ASRock Taichi, stands out for its incredible OC performance and premium specification. The Z690 Taichi Razer Edition motherboard supports 12th Generation Intel® Core™ processors. Experience a powerful performance, support for DDR5 memory, while the DIY-friendly design makes installation seamless. It is also the ultimate control center for all things Chroma RGB, and enables universal compatibility with thousands of ARGB components directly into the ecosystem. Gamers can take pleasure from the rapid speed that this motherboard delivers. The Killer Networking is designed specifically for competitive gamers, prioritize real time offering an uninterrupted online entertainment experience.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.
***Supports ASRock Hyper BCLK Engine V.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Optimized VRM Design

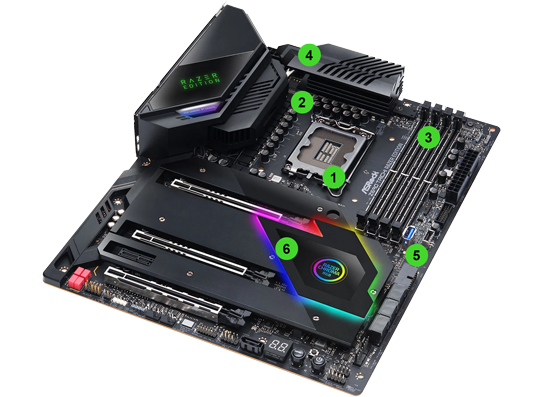

Breakdown

Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

1. Supports 12th Generation Intel® Core™ processors
2. 20 Power Phase Design, SPS (Smart Power Stage) & DR.MOS
3. SMT (Surface Mount Technology) DDR5 DIMM slots
4. XXL Aluminium Heatsink and High-Efficiency Electronics
5. USB 3.2 Gen2 Type-C Front Panel Header
6. Z690 Taichi Razer Edition with support for Razer Chroma

Expansion Slots: 3 x PCIe 5.0 x16 / 6 x SATA 6GB/s / 1 x PCIe 3.0 x1
M.2 Key E (Occupied by Wi-Fi Module) / M.2 PCIe Gen3/SATA / M.2 PCIe Gen4x4
Networking: WiFi 6E, Bluetooth, Killer 2.5G LAN & Thunderbolt 4/USB4

DDR5 Memory with Protection Circuit

features

Reinforced DIMM SlotThe reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

features

DIY Friendly DesignDue to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

How Sound is Meant to be Heard

Audio

Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

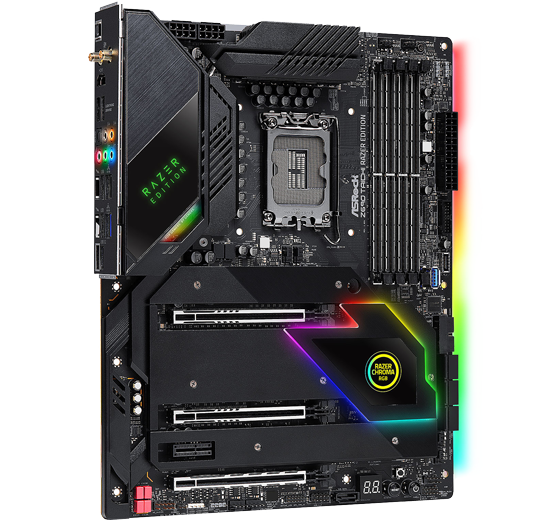

The Possibilities are Endless with Razer Chroma

RGB
lighting effects

lighting effectsWhether it’s enhancing your immersion through Chroma-integrated games, or designing your setup, Razer offers a level of RGB lighting customization that can’t be found anywhere else.

chroma studio

chroma studioIf you're looking for an RGB lighting effect that’s truly unique, tweak and tinker to your heart’s content with our Chroma Studio – where you can modify our existing effects or design your own.

chroma connect

chroma connectFrom one convenient dashboard, sync up all your Chroma-enabled devices with Chroma-integrated games and applications for a truly immersive lighting experience.

chroma visualiser

chroma visualiserEnjoy a dynamic level of audio visualization with colourful sound waves that jump up and down on your device as you play your favourite music, games, and videos.

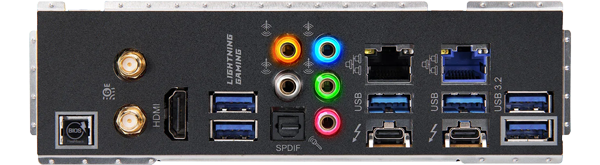

Superb Connectivity and Lightning Gaming Ports

io

8 USB 3.2 Gen1 (4 Rear, 4 Front) The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Includes 8 USB 3.2 Gen1 (4 Rear, 4 Front), 2 x Thunderbolt™ 4/USB4 Type-C, 2 x USB 3.2 Gen2 (Rear) and much more.

Specifications
Core Specifications
Edition Z690 Taichi Razer Edition
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz) DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.1
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 5.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 4 x Chassis Water Pump/Fan Connector
  • 1 x Clear CMOS Button
  • 2 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 3 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x VRM Heatsink Fan Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2
  • 1 x Killer E3100G (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45 with LED
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x USB 4 Type-C / PD / DP / TB4
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 224 mm
Note
Additional Information
Scan Code LN121054
Model Number Z690 Taichi Razer Edition DDR5
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
