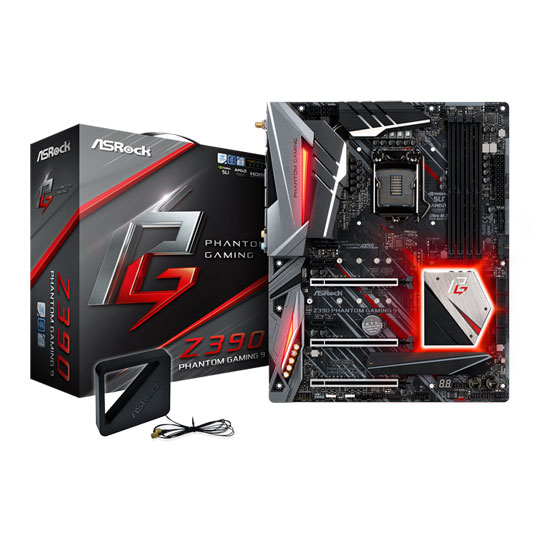

ASRock Intel Z390 Phantom Gaming 9 WiFi ATX Motherboard

ASRock Z390 Phantom Gaming 9, Intel Z390, S 1151, DDR4, SATA3, 3x M.2, USB 3.1 Gen2 A+C, 2.5GbE, ac WiFi, ATX

Thumbnail 1 : ASRock Intel Z390 Phantom Gaming 9 WiFi ATX Motherboard Thumbnail 2 : ASRock Intel Z390 Phantom Gaming 9 WiFi ATX Motherboard Thumbnail 3 : ASRock Intel Z390 Phantom Gaming 9 WiFi ATX Motherboard Thumbnail 4 : ASRock Intel Z390 Phantom Gaming 9 WiFi ATX Motherboard
Scan code: LN94151 Manufacturer code: 90-MXB8Z0-A0UAYZ
£273.49
From £13.13 / month (APR 14.9%)
Monthly Payment: £47.46
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £273.49
Total inc. interest: £284.75
Monthly Payment: £24.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £273.49
Total inc. interest: £294.61
Monthly Payment: £16.93
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £273.49
Total inc. interest: £304.72
Monthly Payment: £13.13
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £273.49
Total inc. interest: £315.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.83 / month (APR 15.9%)
Delivery Options
  • By DPD On 21st Dec 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

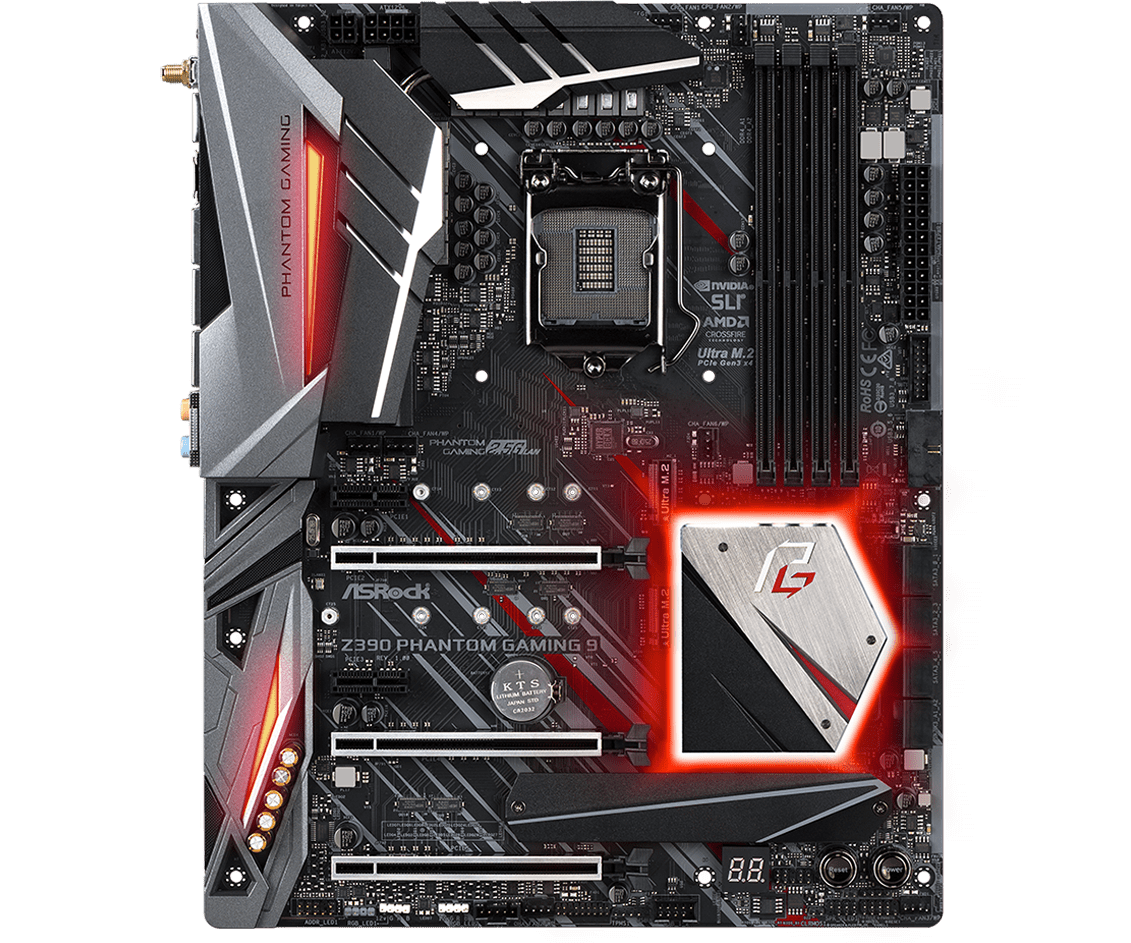

Z390 PHANTOM Gaming 9 - Intel 9th Gen Motherboard with WIFI

ASRock Z390 PHANTOM Gaming 9

excellent Performance & networking with ASRockASRock Z390 motherboards are the most seamless motherboard for gamers who want powerful components. The Z390 PHANTOM Gaming 9 motherboard boasts incredible audio realism, Intel® WIFI and intelligent Intel® technologies. The supremacy of the alloy design advances your system, whilst smart ASRock hardware and software provide a great performance. You can customize your system with ASRock Polychrome SYNC, enjoy different lighting effects with the integrated LED illumination. Featuring on-board RGB headers for compatible LED devices allowing complete synchronization.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

Boost Your Networking Performance

dual m.2 slot

Phantom Gaming 2.5Gb/s LAN The smart Phantom Gaming 2.5Gb/s LAN platform is designed for a supreme networking performance for challenging requirements of home networking, content creators, online gamers and first-class streaming media. Increase networking performance up to 2.5X the bandwidth, compared to the standard gigabit Ethernet, you can appreciate the quicker and uncompromised connectivity experience for gaming, file transfers and backups.

12 Power Phase Design

12 power phase design

IR® DIGITAL PWM Featuring durable components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Expressive Lighting with Polychrome RGB

rgb rgb

ON-BOARD RGB LED HEADERS Not only does this Z390 motherboard feature built-in RGB illumination, it also includes on-board RGB headers and an addressable RGB header that enable the motherboard to be connected to other compatible LED devices such as strip, CPU fans, coolers, chassis and more. You may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to produce their own exclusive lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Immersive Audio Realism

sound blaster audio

Enhance your listening experience Discover a new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

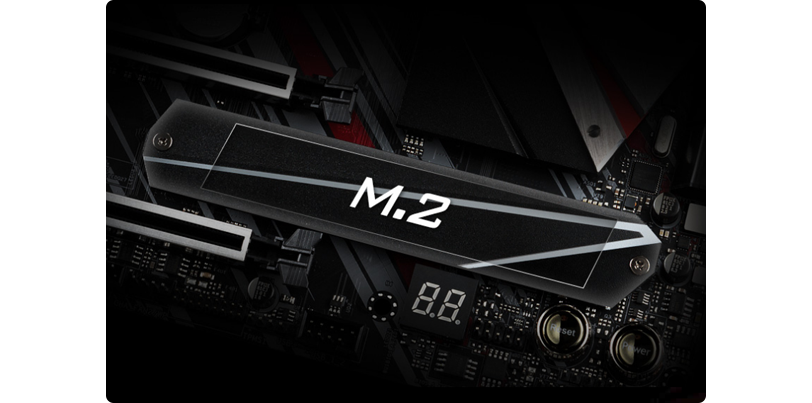

M.2 Heatsink

m.2 heatsink

Maintaining Fast Speeds of the M.2 SSD The Z390 PHANTOM Gaming 9 motherboard includes a huge full coverage M.2 heatsink, which is capable of dissipating heat resourcefully to guarantee your high speed M.2 SSD continuously works at its greatest.

On-board Dual USB 3.1 Gen2

vr

up to 10 Gbps data transfer rates The Z390 PHANTOM Gaming 9 motherboard features a pair of on-board Type-A and Type-C USB 3.1 Gen2 ports, built on the rear i/o for supporting next generation USB 3.1 Gen2 devices, which delivers up to 10 Gbps data transfer rates.

Intel® Technology

Intel WIFI

BLISTERING FAST WIRELESS INTERNET CONNECTIONS Avoid weak WiFi signals and sluggish internet, with the Z390 motherboard that comes with the next generation Intel® Wireless-AC 9560 adapter. This module supports the integrated wireless 802.11ac solutions and provides Bluetooth® 5 and 2x2 802.11ac 2.4/5Ghz Wi-Fi including wave 2 features such as 160MHz channels, delivering up to 1.73Gbps and downlink MU-MIMO. The doubled WiFi speed with superior Bluetooth signal quality can dramatically improve your connected experience at home, work, or on the move.

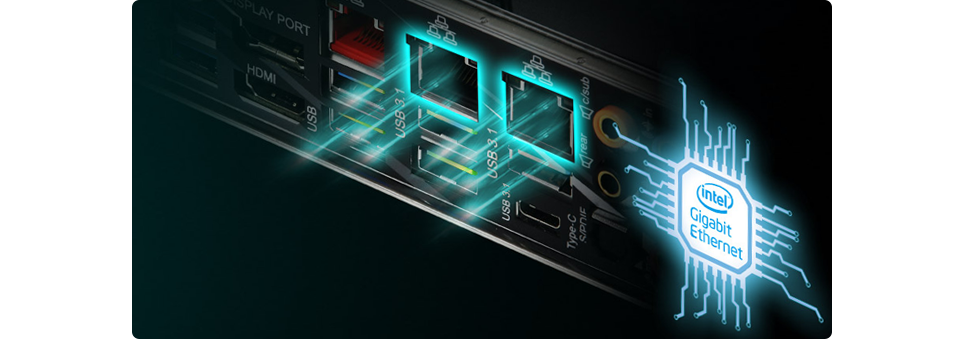

dual Intel LAN

Effective data transmission Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.

Intel 4 POOL Tech

Powerful POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

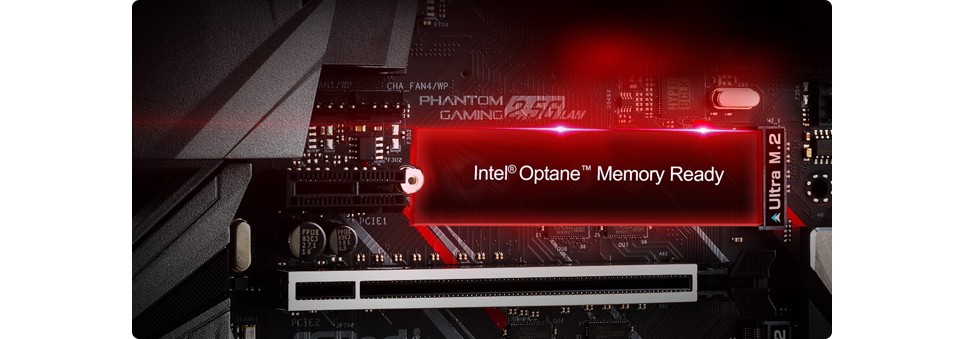

Intel Optane Memory

Optane™ Memory Ready Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Superior Motherboard Alloy

heatsink

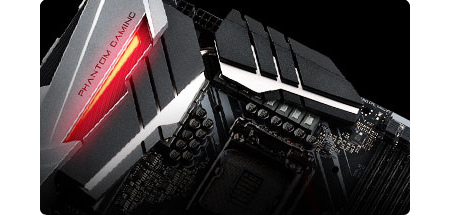

XXL Aluminium Alloy HeatsinkExtra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

power choke

PREMIUM 60A POWER CHOKE Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

choke

Premium Memory Alloy ChokeSpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

up

Dual-Stack MOSFET (DSM) Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.

Combo Caps

Combo CapsA combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

12K Black Caps

Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

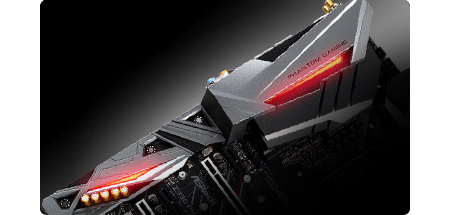

I/O Armor

I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

pcb

MATTE BLACK PCBWitness the new mysterious matte black and copper colour scheme to match the prestigious components on ASRock's high-end motherboards.

pcb

HIGH DENSITY GLASS FABRIC PCBASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition Phantom Gaming 9
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC1220 7.1 HD Audio w/ SB Cinema5
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, PCIe 3.0/SATA
  • 2 x M.2, 2230/2242/2260/2280/22110, PCIe 3.0/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 8 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology Support
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Performance Mode/Easy OC Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 2 x RGB Header
  • 6 x System Fan header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Type-C Front Header
External Connectivity
Network Interface Type
  • 2.5 Gigabit LAN
  • 802.11ac WiFi LAN
Network Chip/Modules
  • 1 x 802.11ac WiFi + BT5
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8125AG
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 3 x RJ-45
  • 4 x USB 3.1 Gen1 Type-A
  • 3 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
