ASRock X870 STEEL LEGEND WiFi DDR5 AMD ATX Motherboard

ASRock STEEL LEGEND X870 DDR5 AM5 Motherboard for Ryzen 8000/9000 Series

ENGINEERED FOR PRECISION STEEL LEGEND personifies the essence of industrial might, where shimmering steel components come to life in a sprawling assembly line. Built on the AMD X870 chipset with AM5 socket support, it surges forward with cutting-edge technologies. Equipped with DDR5 memory, PCIe 5.0 lanes, and three lightning-fast M.2 slots, this motherboard is crafted for those ready to push boundaries. Picture cables snaking through the space like veins of power, channeling data at unprecedented speeds through USB 4.0 connectivity, 2.5G Ethernet, and WiFi 7. With AMD EXPO fine-tuning memory overclocking, this ATX form factor stands ready to deliver rock-solid stability and relentless performance, thriving in the most demanding gaming environments. In this realm, every connection clicks with precision.

X870AMD Chipset

AM5CPU Socket

DDR5 DIMMMax. 256GB (2x12GB)

ATXForm Factor

Expertly Assembled VRM

High-Quality 20K Caps

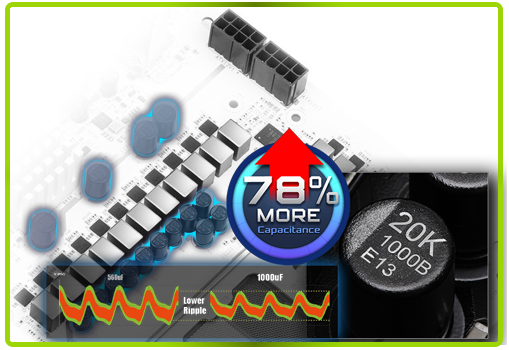

20K CapacitorsThe upgraded 20K Black capacitor is more than just an endurance enhancement, boosting lifespan to 20,000 hours and raising capacitance from 560uF to 1000uF. This upgrade delivers a range of benefits in one compact package: higher capacitance enables more charge storage, supporting the system under heavier loads. Ripple effects are reduced, ensuring smoother power delivery, while stable current output eliminates the risk of voltage instability.

1,000UFCapacitance

20,000HrLifespan

14+2+1 Phases

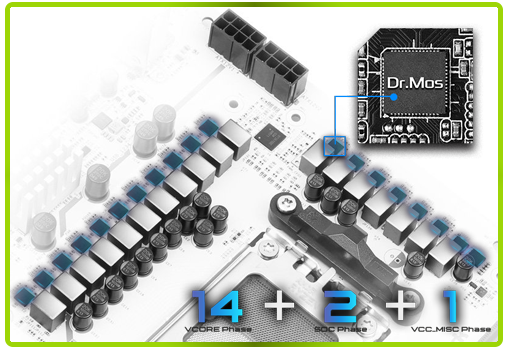

Dr. Mos & Power PhasingBuilt with a robust 14+2+1 power phase design, this board ensures flawless power delivery to your CPU, setting the stage for seamless overclocking and a performance boost that advanced gamers crave. The enhanced thermal efficiency keeps temperatures under control, even when pushing your system to its limits. At the heart of this is the Dr.MOS integrated power stage, which streamlines current delivery by optimising each phase for superior thermal management.

14VCORE Phases

2SOC Phases

1VDD_MISC Phases

Durable Power Connections

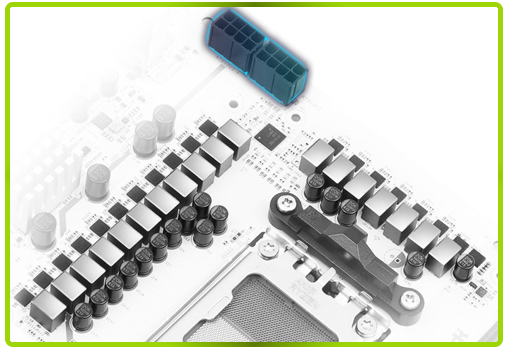

Hi-Density ConnectionFor demanding CPU overclocking, higher currents are essential, and this is where ASRock’s Hi-Density Power connectors come into play. Designed to endure significantly higher currents than traditional 8-pin CPU and 24-pin ATX connectors, they offer improved stability and security. These connectors provide peace of mind to overclockers and ensure the system remains cool and controlled, even under intense conditions.

Unlock Memory Overclocking

PCB

8-Layer PCBAn advanced 8-layer board supports the most cutting-edge memory modules, pushing them to achieve extreme performance. By reinforcing both thermal management and signal integrity, the 8-layer PCB creates the optimal foundation for meticulously shifting DDR5 memory to its limits.

XMP

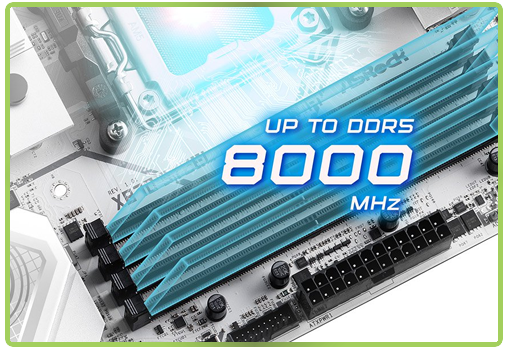

DDR5 XMP & EXPOASRock’s commitment to stability and reliability shines through every layer of its design. By enabling pre-tested profiles, users can push the limits of their system with confidence. For seamless overclocking, ensure that your memory modules are Intel® XMP or AMD EXPO™ compatible.

PCI Power

4K Recording

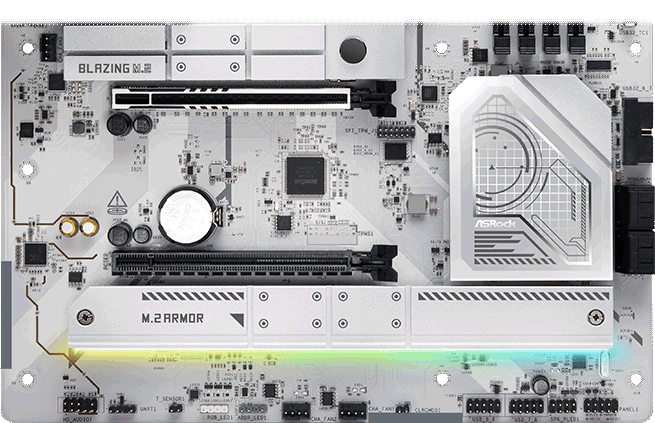

Express ExcellenceThe Blazing M.2 pulses with life, harmonising power and speed through PCI Express 5.0, delivering an electrifying 128GB/s transfer speed. Flanking this powerhouse, the dual Hyper Gen4 M.2 slots add further velocity, ensuring your data flows smoothly and swiftly.

No Tools NeededASRock introduces an innovative M.2 heatsink quick release mechanism, simplifying the installation process and allowing for effortless upgrades without tools.

Smooth Heat DissipationThe M.2 bottom heatsink efficiently dissipates heat from the SSD through the motherboard PCB, optimising performance while ensuring system stability.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Intelligent Cooling Solutions

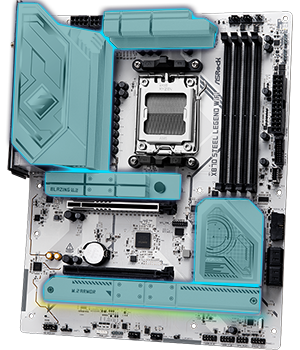

Aluminium Heatsink

Aluminium Heatsink An optimised aluminium heatsink is used for efficient heat dissipation under heavy workloads such as gaming or productivity tasks. This ensures effortless system stability and durability.

PWM/DC Fan Support

PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

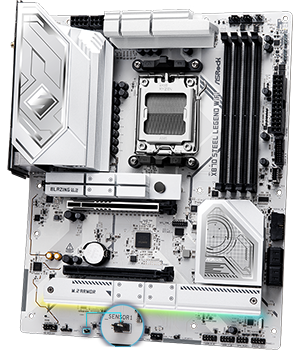

Thermistor Header

Thermistor Header The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customised thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI.

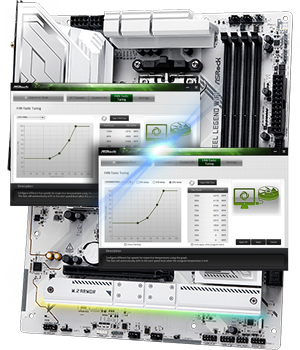

Fan-Tastic Tuning

Fan-Tastic TuningThe Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the UI, meeting the system's cooling performance and noise requirements.

Nahimic Audio

Nahimic Audio

Audio Matters Nahimic Audio delivers an immersive listening experience that is vibrant and rich in detail, regardless of whether you're using headphones, a headset, external or internal speakers.

Clear Communication Powerful algorithms deliver clear, noise-free conversations with consistent vocal levels, enhancing sound quality and reducing interference for better clarity and less fatigue.

Sound Tracker The Sound Tracker visually indicates the direction of prominent sounds, displaying them in a 360° radar for complete immersion during gameplay.

Freedom & Flexibility

User-Friendly Design With comprehensive control over cooling and lighting, users can effortlessly optimise performance while tailoring their rig to perfection. This board stands as the ultimate ally for creating a unique system, allowing for maximum creativity with minimal hassle.

Colour Your Rig with EaseThe ARGB Splitter Cable makes managing multiple ARGB devices a breeze. With a single controller, it splits the signals efficiently, offering a seamless lighting setup that brings a cohesive and vibrant look to your system’s aesthetics.

Precise Thermal Monitoring Using a thermistor cable and header, you can take control of cooling with additional temperature monitoring. This provides a more tailored thermal management solution to fit your workload and ensures peak performance.

Pushing the Envelope of Connectivity

High-Quality 20K Caps

Intel Killer E3100 With advanced Intel Killer Ethernet at the helm, every frame and every action feels responsive, providing the edge needed to dominate in any competitive scenario. Enjoy a networking experience that’s as thrilling as the games themselves, turning every session into a high-octane adventure.

14+2+1 Phases

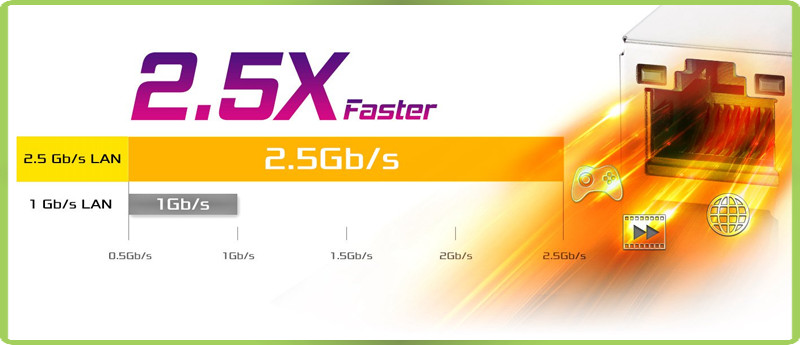

Dragon 2.5Gb LAN The 2.5Gb/s LAN platform is designed to deliver top-tier networking performance, perfect for home networks, content creators, online gamers, and high-quality streaming. Offering up to 2.5 times the bandwidth of standard gigabit Ethernet, it ensures faster, reliable connectivity for gaming, file transfers, and backups without compromise.

Durable Power Connections

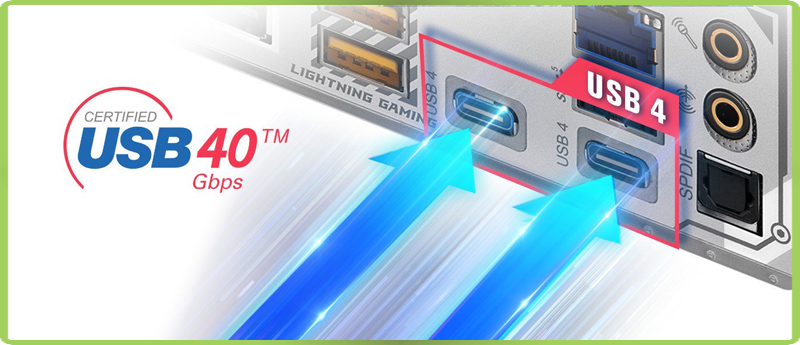

Lightning Fast USB4 This motherboard features the cutting-edge USB Type-C interface, capable of blazing data transfer speeds of up to 40Gbps, streamlining your workflow whether at work or home. Experience the seamless fusion of speed and functionality, empowering you to push the boundaries of your digital world.

Unlimited Connections

  • Performance See full performance features

    Click to Zoom

    Connectivity See full connectivity features

    Click to Zoom

Flexible I/O Shield Unlike many pre-mounted I/O shields that focus primarily on aesthetics, ASRock's design prioritises functionality with adjustable features. They provide extra tolerance space, allowing the I/O shield to be adjusted during installation to ensure a perfect fit with your chassis, eliminating any potential mechanical issues.

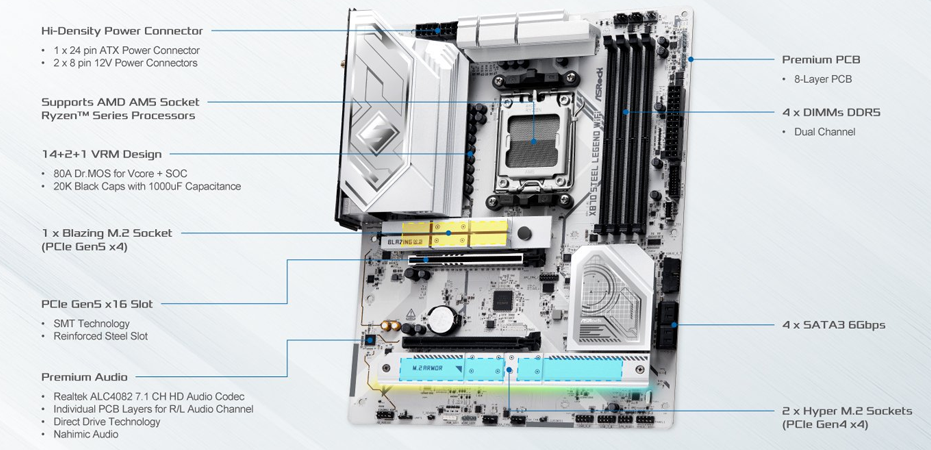

Specifications
Core Specifications
Edition X870 Steel Legend WiFi
Form Factor ATX
CPU Socket AM5
Chipset AMD X870
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • HDMI 2.1
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 2 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11be WiFi 7
  • 1 x Dragon RTL8125BG (2.5GbE LAN)

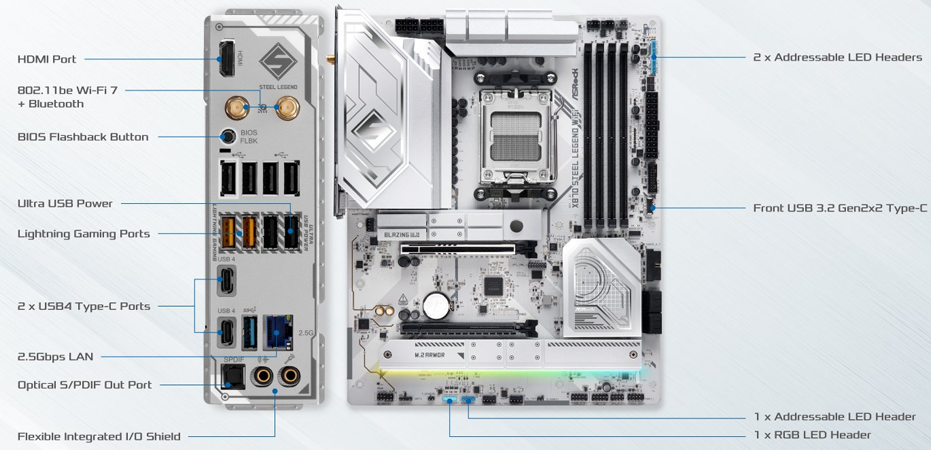

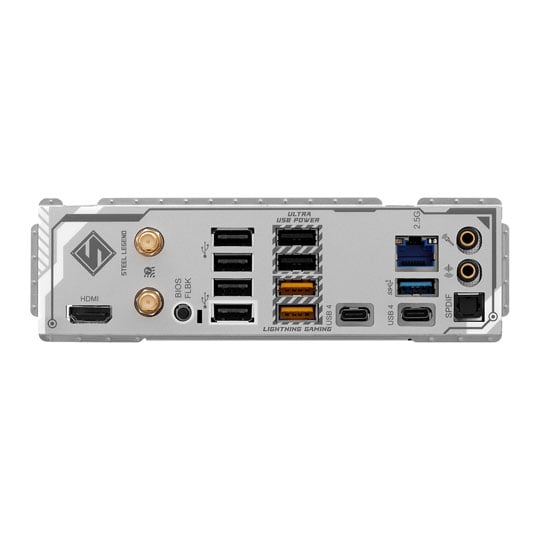

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x HDMI 2.1
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x USB 4.0 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN151936
Model Number 90-MXBPJ0-A0UAYZ
GTIN 4710483949340
