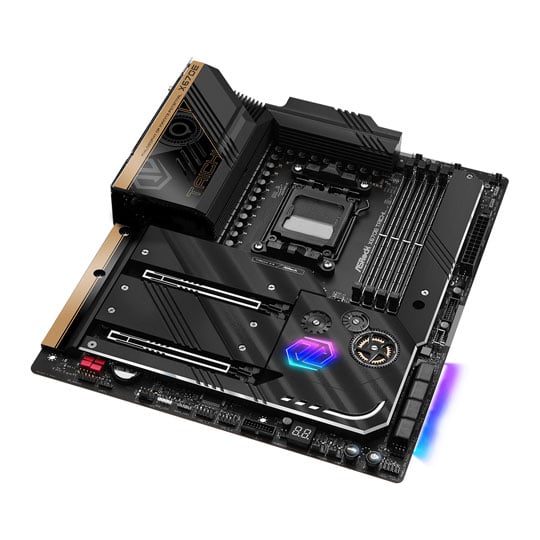

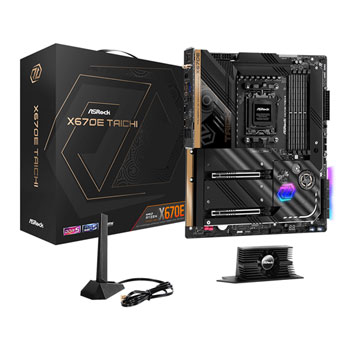

ASRock AMD Ryzen X670E Taichi AM5 PCIe 5.0 E-ATX Motherboard

ASRock X670E Taichi, AMD X670, AM5, DDR5, PCIe 5.0, 4x M.2, Killer 2.5G/WiFi 6E, USB 4.0 Type-C, AMD EXPO™, E-ATX

Thumbnail 1 : ASRock AMD Ryzen X670E Taichi AM5 PCIe 5.0 E-ATX Motherboard Thumbnail 2 : ASRock AMD Ryzen X670E Taichi AM5 PCIe 5.0 E-ATX Motherboard Thumbnail 3 : ASRock AMD Ryzen X670E Taichi AM5 PCIe 5.0 E-ATX Motherboard Thumbnail 4 : ASRock AMD Ryzen X670E Taichi AM5 PCIe 5.0 E-ATX Motherboard
Scan code: LN129120 Manufacturer code: 90-MXBJ0-A0UAYZ
Order by 8:30 PM today and get it tomorrow
£529.99
Get it Tomorrow, 23 AprIn stock
From £18.56 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £48.02
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £529.99
Total inc. interest: £576.18
Monthly Payment: £25.88
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £529.99
Total inc. interest: £621.06
Monthly Payment: £18.56
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £529.99
Total inc. interest: £668.12
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £14.08 / month (APR 19.9%)
Delivery Options
  • By DPD On 23rd Apr to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

X670E Taichi Ryzen 7000 Series E-ATX Motherboard from ASRock

ASRock Taichi motherboard

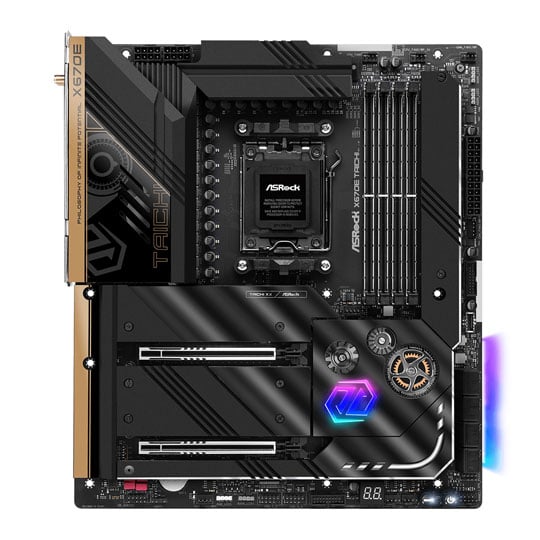

Get the latest hardware for the latest CPUThe ASRock X670E Taichi is a motherboard built for AMD Ryzen™ 7000 Series Processors and supports DDR5 6600+(OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. The X670E Taichi offers 2x PCIe 5.0 slots and a Blazing M.2 Gen5 slot with fan heatsink for improved heat dissipation and ultra fast performance. Get super fast and reliable connections with WiFi 6E and Killer E3100G 2.5G Ethernet.

AMD X670Chipset

AM5CPU Socket

Ryzen™ 7000 Series ProcessorsCompatible CPU

E-ATXForm Factor

Synchronise your Devices with Polychrome RGB

ASRock Taichi motherboard

Get incredible control over your lighting and effectsIn addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

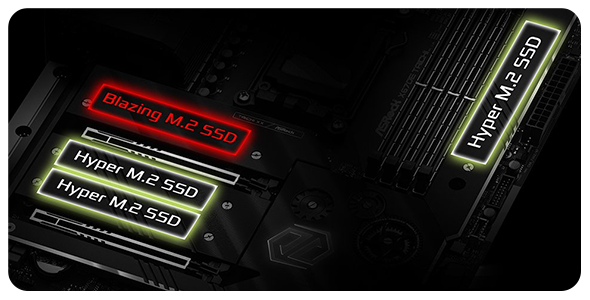

High Speed M.2 Solution

ASRock Taichi motherboard

PCIe Gen5 Blazing M.2The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

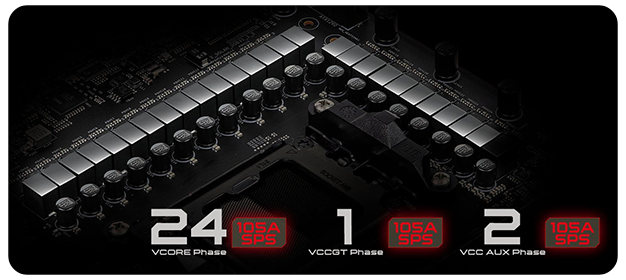

Enhanced Performance & Unmatched Overclocking Capabilities

ASRock Taichi motherboard

Sturdy 24+2+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

back

DDR5 EXPO & XMP SupportAll X670E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/Intel® XMP capable and overclocking can be made so affordable and simple.

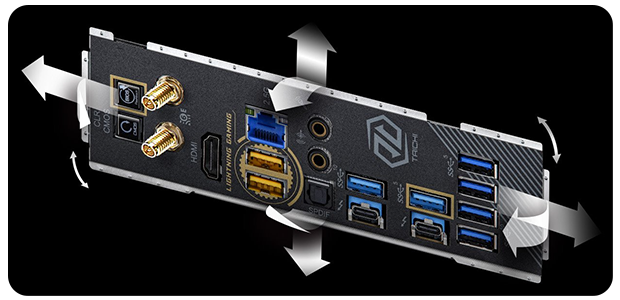

Flexible Integrated I/O Shield

ASRock Taichi motherboard

Adjustable Fit for easy installationASRock go above and beyond expectations when it comes to the I/O. Aside the sleek colour scheme, they reserve more tolerance space for greater adjustability during installation, thus fitting the chassis perfectly without any mechanical issues.

Support for Next Generation USB 3.2 Devices

ASRock Taichi motherboard

Front USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

New Intel Wi-Fi 6E with 2.5G Wired Speeds

ASRock Taichi motherboard

KiLLER E3100G + Wi-Fi 6EThe Killer Ethernet controller is designed specifically for competitive gamers and performance-hungry users. This motherboard comes with both a Killer E3100G 2.5G Ethernet & WiFi 6E solution. The enhanced detection and prioritisation engine provides the ultimate networking experience for gaming and multimedia applications.

Premium High Definition Sound

ASRock Taichi motherboard

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

ASRock X670E Taichi Motherboard Features

down

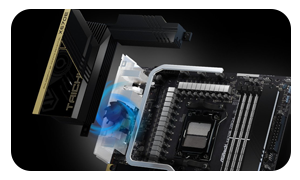

Composite
VRM Heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminium sink and heat pipe for maximum heat dissipation.

up

Enhanced
USB4 Type-C
USB4 technology enables lightning-fast data transfer up to 40Gbps and supports up to 9V@3A 27W with the next generation PD 3.0 for superfast charging!

up

BIOS
Flashback
Convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply.

down

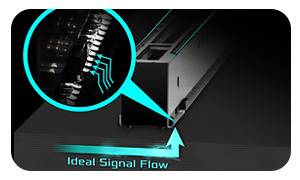

PCIe 5.0 &
Surface-Mount Tech
Compared to conventional DIP style PCIe slots, the SMT type PCIe slot improves signal flow and maximises stability under high speed. A key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

up

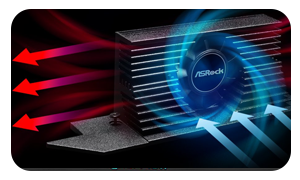

M.2
Fan-Heatsink
To unleash the full potential of the latest PCIe Gen5 x4 M.2 SSD, a M.2 Fan Sink was specially designed for this ASRock motherboard. It is able to deliver maximum cooling performance for stability and performance.

up

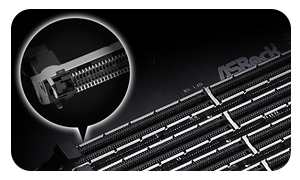

Reinforced
DIMM Slot
The reinforced DIMM slot is surfaced mounted onto the motherboard for better physical strength and memory signal stability. With this superior design, DRAM modules can be overclocked up to insane frequencies.

Specifications
Core Specifications
Edition X670E Taichi
Form Factor E-ATX
CPU Socket AM5
Chipset AMD X670
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek® ALC4080 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 3 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 2 x PCIe 5.0 x16
  • 8 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Clear CMOS Header
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power button
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Killer E3100G (2.5GbE LAN)

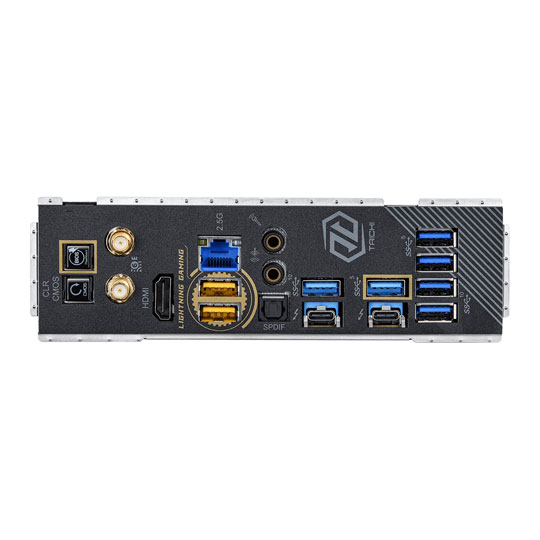

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 2 x Killer E3100 LAN
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x S/PDIF-Out (Optical)
  • 3 x USB 3.2 Gen1 Type-A
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x USB 4.0 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 267 x 50 x 305 mm
