Product Overview

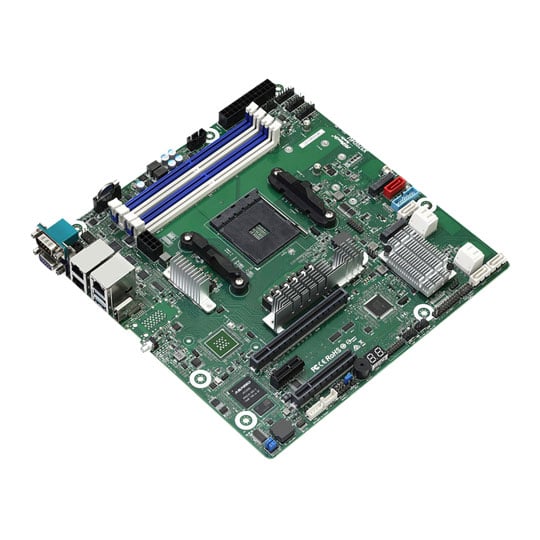

ASRock Rack X570 Micro-ATX AM4 Motherboard

The ASRock X570D4U Micro-ATX form factor motherboard supports AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics, while further being compatible with 3000 series desktop processors including 2nd Gen desktop processors with Radeon™ Vega Graphics. Featuring 4 DIMM slots supporting DDR4 ECC and non-ECC UDIMM up-to 3200Mhz*, dual PCIe 4.0x4 M.2 slots with SATA support, eight SATA 6 Gb/s, dual Gigabit Ethernet, IPMI dedicated management GLAN, HDMI output* and USB 3.2 Gen2 ports.

* Support varies by CPU.

Features

• micro-ATX (9.6"x 9.6").
• supports AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics.
• 4 DIMMs.
• 1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1.
• Dual 1 GbE RJ45.
• 2 M.2 (PCIe4.0x4/ SATA).
• 8 SATA 6Gb/s.
• HDMI.
• AST2500 Remote management (IPMI).

Specifications
Core Specifications
Edition X570D4U
Form Factor MicroATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio N/A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x8
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin Fan
  • 1 x 8-pin (Power)
  • 1 x Auxiliary Panel Header
  • 1 x BMC_SMB Header
  • 1 x Buzzer
  • 1 x Clear CMOS (Short Pad)
  • 3 x Fan Header
  • 1 x Front Panel Connector
  • 1 x IPMB Connector/Header
  • 1 x LAN Activity LEDs
  • 1 x PMBus Connector
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 1 x TPM Header
  • 1 x TR1
  • 1 x VGA Port Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 2 x Intel® I210 (Gigabit LAN)
  • 1 x Realtek RTL8211E (Management LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x RJ45 Dedicated IPMI port
  • 1 x Serial (COM)
  • 1 x UID Button/UID LED
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
