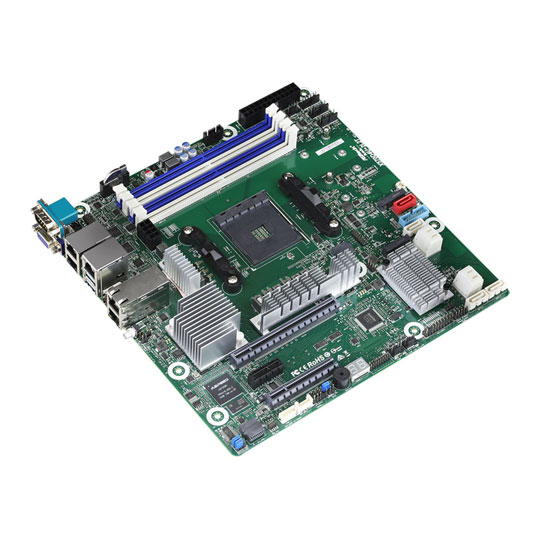

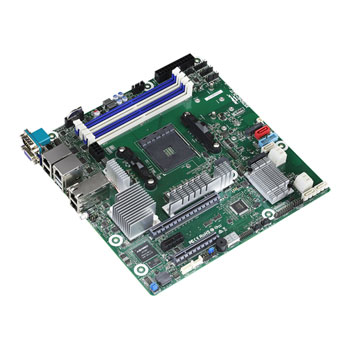

ASRock AMD Ryzen X570 X570D4U-2L2T AM4 PCIe 4.0 mATX Motherboard

ASRock X570M X570D4U-2L2T, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, Dual GbE + 10GbE, USB 3.2 Gen2, Micro-ATX

Thumbnail 1 : ASRock AMD Ryzen X570 X570D4U-2L2T AM4 PCIe 4.0 mATX Motherboard Thumbnail 2 : ASRock AMD Ryzen X570 X570D4U-2L2T AM4 PCIe 4.0 mATX Motherboard Thumbnail 3 : ASRock AMD Ryzen X570 X570D4U-2L2T AM4 PCIe 4.0 mATX Motherboard
Scan code: LN114397 Manufacturer code: X570D4U-2L2T
£448.99
Order in the next 45 mins and get it tomorrow
From £21.55 / month (APR 14.9%)
Monthly Payment: £40.31
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £448.99
Total inc. interest: £483.69
Monthly Payment: £21.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £448.99
Total inc. interest: £517.22
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.21 / month (APR 15.9%)
Delivery Options
  • By DPD On 4th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

ASRock Rack X570 Micro-ATX AM4 Motherboard

The ASRock X570D4U-2L2T Micro-ATX form factor motherboard supports AMD Ryzen™ 3000 series desktop processors including 2nd Gen desktop processors with Radeon™ Vega Graphics. Featuring 4 DIMM slots supporting DDR4 ECC and non-ECC UDIMM up-to 3200Mhz*, dual PCIe 4.0x4 M.2 slots with SATA support, eight SATA 6 Gb/s, dual Gigabit Ethernet, dual 10 Gigabit LAN, IPMI dedicated management GLAN, HDMI output* and USB 3.2 Gen2 ports.

* Support varies by CPU.

Features

• micro-ATX (9.6"x 9.6").
• Supports 3rd Gen AMD Ryzen™ Processors.
• 4 DIMMs.
• 1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1.
• Dual 10 GbE RJ45.
• Dual 1 GbE RJ45.
• 2 M.2 (PCIe4.0x4/ SATA).
• 8 SATA 6Gb/s.
• HDMI.
• AST2500 Remote management (IPMI).

Specifications
Core Specifications
Edition X570D4U-2L2T
Form Factor MicroATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio N/A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Integrated ASPEED AST2500
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x8
  • 8 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Auxiliary Panel Header
  • 1 x BMC_SMB Header
  • 1 x Buzzer
  • 1 x Clear CMOS (Short Pad)
  • 3 x Fan Header
  • 1 x Front LAN LED
  • 1 x Front Panel Connector
  • 1 x IPMB Connector/Header
  • 1 x PMBus Connector
  • 1 x speaker header
  • 2 x TPM Header
  • 1 x TR1
  • 1 x VGA Port Header
External Connectivity
Network Interface Type
  • Dual Wired 10G LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 2 x Intel® I210 (Gigabit LAN)
  • 1 x Intel® X550 Dual Port (10GbE)
  • 1 x Mgmt LAN
Rear I/O Connectors
  • 1 x HDMI
  • 4 x RJ-45
  • 1 x RJ-45 Mgmt LAN
  • 1 x Serial (COM)
  • 1 x UID Button/UID LED
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN114397
Model Number X570D4U-2L2T
GTIN 4710483932427
