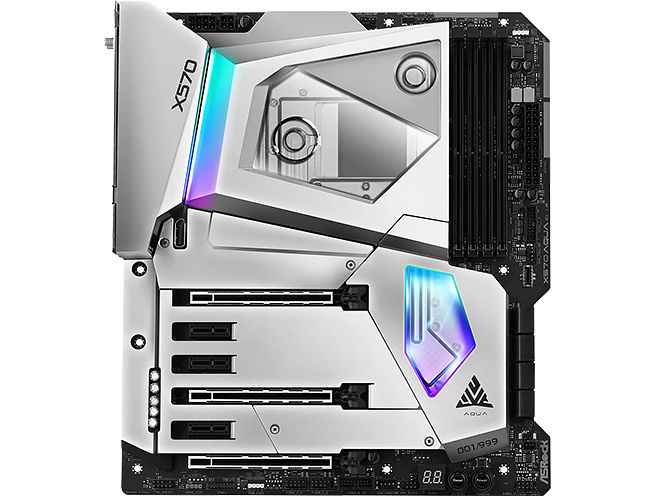

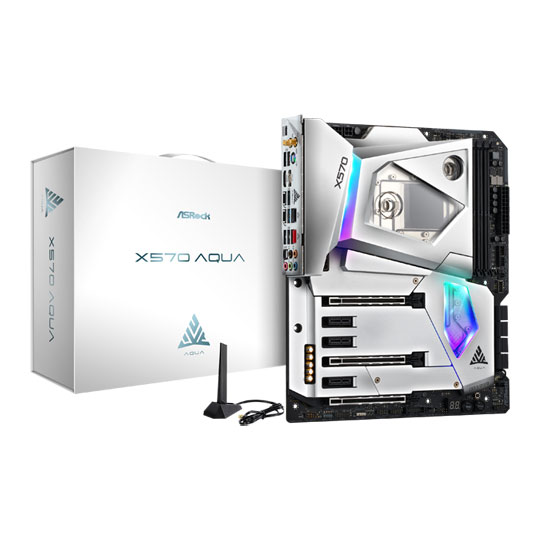

ASRock X570 AQUA AMD Ryzen AM4 PCIe 4.0 Watercooled Ultimate ATX Motherboard

ASRock X570 AQUA, AMD X570, AM4, DDR4 5000+, PCIe 4.0, M.2 SSD, 3-way CrossFireX, ax WiFi, Thunderbolt3™, ATX

Thumbnail 1 : ASRock X570 AQUA AMD Ryzen AM4 PCIe 4.0 Watercooled Ultimate ATX Motherboard Thumbnail 2 : ASRock X570 AQUA AMD Ryzen AM4 PCIe 4.0 Watercooled Ultimate ATX Motherboard Thumbnail 3 : ASRock X570 AQUA AMD Ryzen AM4 PCIe 4.0 Watercooled Ultimate ATX Motherboard Thumbnail 4 : ASRock X570 AQUA AMD Ryzen AM4 PCIe 4.0 Watercooled Ultimate ATX Motherboard
Scan code: LN101542 Manufacturer code: 90-MXBAZ0-A0UAYZ
There are 6 people viewing this product
£999.98
From £48.00 / month (APR 14.9%)
Monthly Payment: £173.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,041.12
Monthly Payment: £89.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,077.24
Monthly Payment: £61.90
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,114.20
Monthly Payment: £48.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,151.94
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £24.97 / month (APR 15.9%)
Delivery Options
  • By DPD On 21st Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

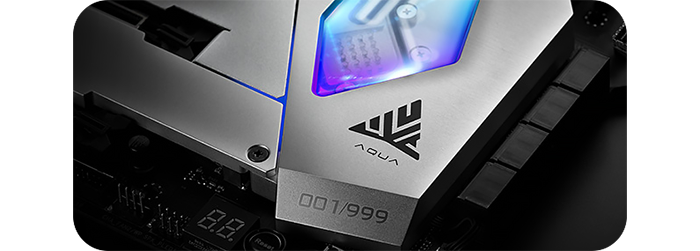

Product Overview EXTREME LIMITED QUANTITY "LIMITED EDITION" - LIMITED TO ONE PER CUSTOMER

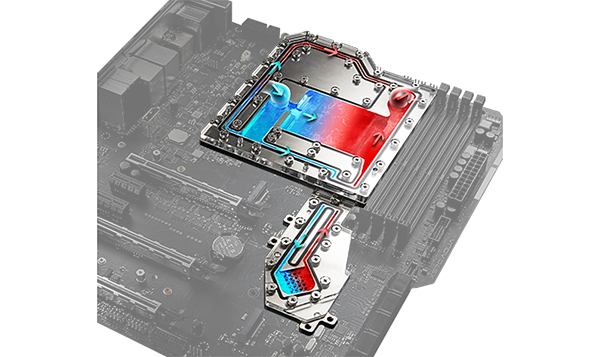

Aqua Cooling Armor
The water passage of this custom cooling armour has been skilfully designed to ensure the heat produced by the CPU, VRM and chipset is dispersed efficiently. Coolant is split into three passages so that each area can be cooled separately without interfering each other, this design also lowers the water resistance inside the cooling block, giving faster water flow to maintain best cooling effectiveness.

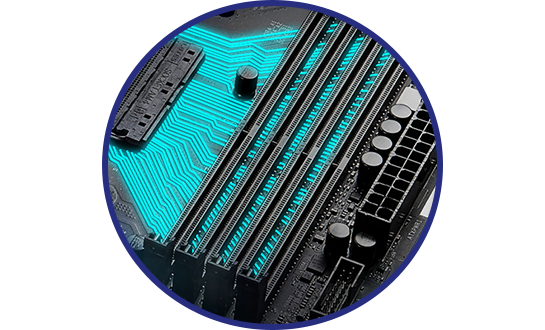

Supports Up to DDR4-5000
Unlike traditional memory signal designs that are easily distorted, Hyper DDR4 uses an optimized trace design and the memory circuitry is isolated, thus providing higher quality memory signals for compatibility, stability and performance.

14 Power Phase Design (IR® Digital PWM)
Featuring sturdy components and completely smooth power delivery to the CPU, it offers unmatched overclocking capabilities and enhanced performance whilst maintaining low temperatures for hardcore gamers as well.

Dr. MOS
IR3555 Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal results and superior performance.

Server-Grade Low-Loss PCB
The server grade PCB prevents the PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability. giving you a reliable and long-lasting system without any compromise.

Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock’s motherboard is equipped with the next generation Intel® Wi-Fi 6 802.11ax adapter. This can deliver speeds of up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet is not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media centers, workstations and gaming PCs.

Rule Your Own Lighting Way - Polychrome RGB
ASRock motherboards delivers stunning performance and superior aesthetics to rule your own colourful lighting! ASRock offers very comprehensive controls for the built-in RGB LEDs or connected LED strips, CPU fans, coolers, chassis and any other RGB devices. Devices can be synchronized across Polychrome RGB Sync-certified accessories as well.

Thunderbolt™ 3 Technology
Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick charging with [email protected] (15W).
Get ready to experience the world's fastest connectivity with Thunderbolt™ ready motherboards!

Steel Slot with New-Gen PCI Express 4.0
The next generation PCI Express 4.0 is capable of performing at twice the speed compared to the previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards can be installed into the PCI-E slot safely.

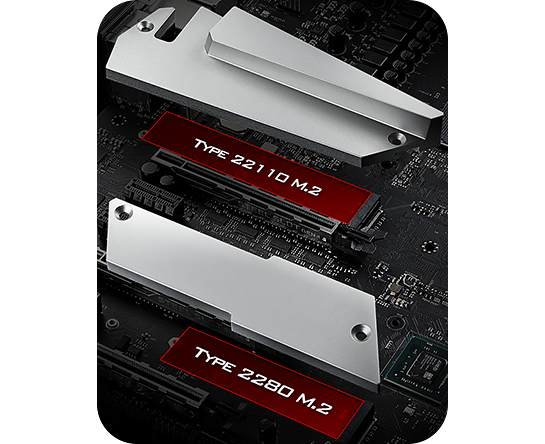

A Solid M.2-Solution Performer
Dual Hyper M.2 SSD: Supports the next generation PCI Express 4.0 M.2 SSDs providing a lightning fast data transfer experience.
M.2 Armours: Good M.2 SSD protection is important for a longer life-span and system stability. ASRock provides a complete M.2 armour solution that ensures SSDs run at low temperatures.

Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shields that is only provide decoration with fancy colour schemes. We reserve more tolerance space and ensure the IO shield is adjustable when installing, thus fitting the chassis perfectly without any mechanical issues.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Features • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors.
• Supports DDR4 5200+ (OC).
• Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0.
• AQUANTIA® 10G LAN, Intel® Gigabit LAN.
• 3 PCIe 4.0 x16, 3 PCIe 2.0 x1.
• NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™.
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec).
Supports Supports DTS Connect
• 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
• 1 Front USB 3.2 Gen2 Type-C, 10 USB 3.2 Gen1 (4 Front, 6 Rear)
• 2 Intel® Thunderbolt™ 3 Type-C
Specifications
Core Specifications
Edition X570 AQUA
Form Factor E-ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4666+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x PCIe 2.0 x1
  • 3 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x Clear CMOS Button
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x DisplayPort In
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 1 x RGB LED connector
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
Network Chip/Modules 1 x 802.11ax WiFi + BT5
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI In
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-In (Optical)
  • 6 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-C / Thunderbolt 3 / DP
Additional Specifications
Water Cooled Yes
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 350 x 267 mm
Note
Additional Information
Scan Code LN101542
Model Number 90-MXBAZ0-A0UAYZ
GTIN 4717677339338
