ASRock AMD Ryzen X470 Master SLI AM4 ATX Motherboard

ASRock X470 Master SLI, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 2-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

Thumbnail 1 : ASRock AMD Ryzen X470 Master SLI AM4 ATX Motherboard Thumbnail 2 : ASRock AMD Ryzen X470 Master SLI AM4 ATX Motherboard Thumbnail 3 : ASRock AMD Ryzen X470 Master SLI AM4 ATX Motherboard Thumbnail 4 : ASRock AMD Ryzen X470 Master SLI AM4 ATX Motherboard ASRock AMD Ryzen X470 Master SLI AM4 ATX Motherboard : video thumbnail 1
Scan code: LN89315 Manufacturer code: X470 Master SLI
£135.98
From £12.21 / month (APR 14.9%)
Monthly Payment: £23.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £135.98
Total inc. interest: £141.58
Monthly Payment: £12.21
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £135.98
Total inc. interest: £146.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Aug 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

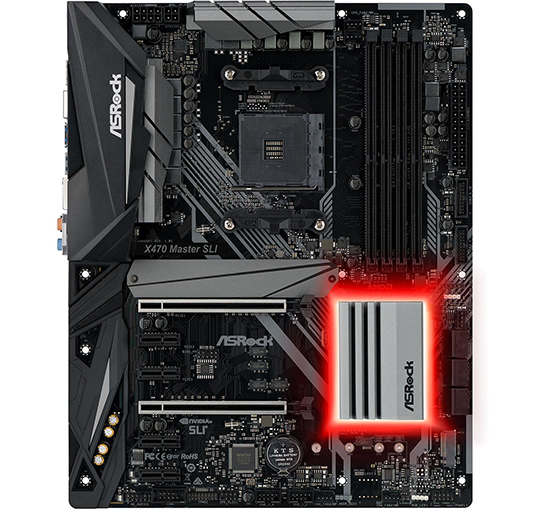

Product Overview X470 Master SLI

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
*AMD StoreMI software is only free with 400-series chipset based motherboards.

Rule Your Own Lighting Way: Polychrome RGB
In addition to the built-in RGB illumination, it also features on-board RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Lighting Effects:
• Static.
• Breathing.
• Strobe.
• Music.
• Cycling.
• Wave.
• Random.

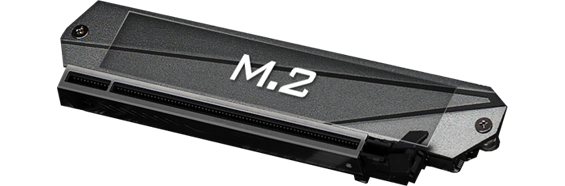

Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

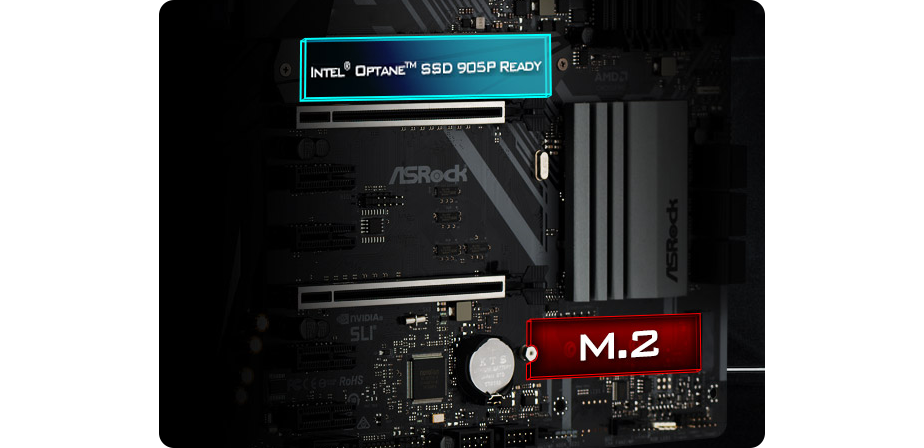

Dual M.2 for SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
*Intel® 905P NVMe SSD is only compatible when ASRock M.2 heatsink is installed.

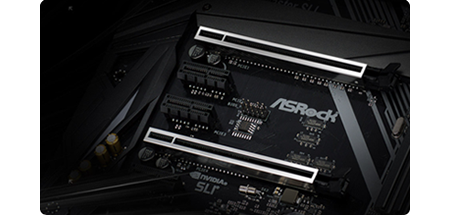

PCI-E Steel Slots
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

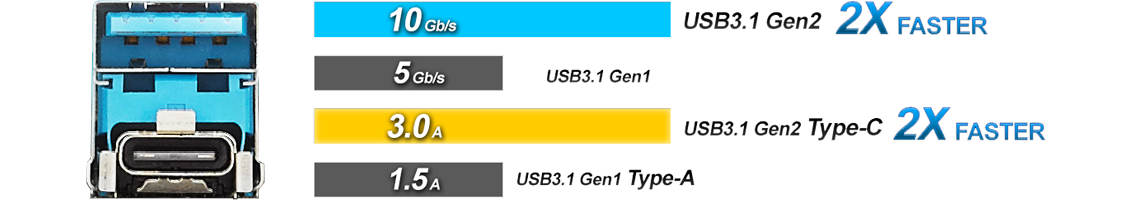

Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of on-board Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Super Alloy Motherboard

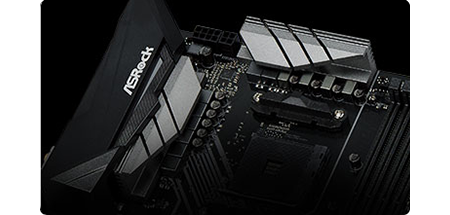

• XXL Aluminium Alloy Heatsink: Extra-large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

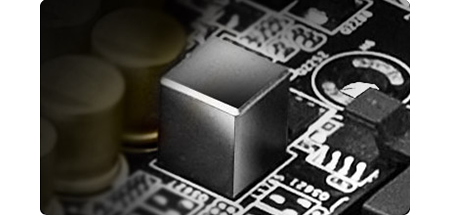

• Premium 45A Power Choke: Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

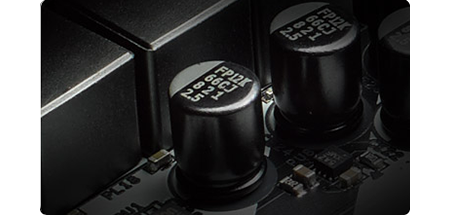

• Nichicon 12K Black Caps: Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

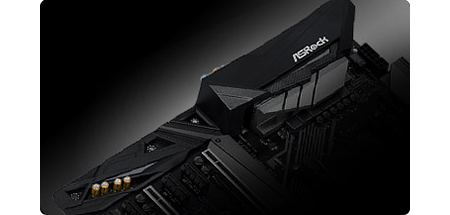

• I/O Armour: A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

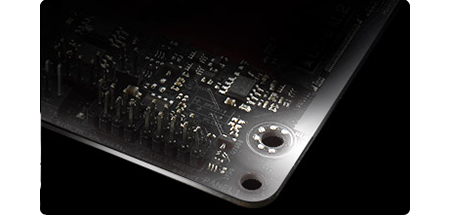

• Sapphire Black PCB: Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

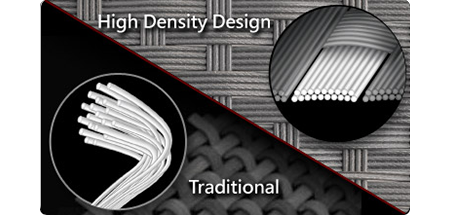

• High Density Glass Fabric PCB: High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

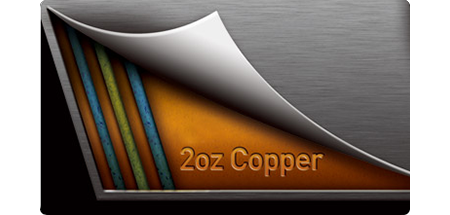

• 2oz Copper PCB: Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

A-Tuning
A-Tuning is ASRock's multi-purpose software suite with a new interface, more new features and improved utilities.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Features • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge).
• Supports DDR4 3466+ (OC).
• 2x PCIe 3.0 x16, 4x PCIe 2.0 x1.
• NVIDIA® Quad SLI™, AMD Quad CrossFireX™.
• Graphics Output: HDMI.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps.
• 6x SATA3, 1x Ultra M.2 (PCIe Gen3 x4 & SATA3), 1x M.2 (PCIe Gen2 x2 & SATA3).
• 2x USB 3.1 Gen2 (rear Type-A+C), 10x USB 3.1 Gen1 (4x Front, 6x Rear).
• Intel® Gigabit LAN.
Specifications
Core Specifications
Edition X470 Master SLI
Form Factor ATX
CPU Socket AM4
Chipset AMD X470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3466+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, PCIe 2.0/SATA
  • 1 x M.2, 2230/2242/2260/2280/22110, PCIe 3.0/SATA
  • 4 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 1 x AMD LED Fan USB Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
ASRock X470 Master SLI, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 2-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Excellent quality product. Just built a new PC with Ryzen 2700, Saphire RX580, ASRock X470 SLI MasterMB, Corsair Carbide Series 100R case, 600W Cooler Master PSU. The only downside with this motherboard is that I could not find drivers for Windows 7 (my preference) so had to move to Windows 10. Other that that it is an excelent piece of kit, well designed and reasonably easy to install (the printed manual could be improved). As this is a X470 chipset I have taken advantage of the FREE StoreMI software from AMD and use a 250GB SSD (Samsung 960 EVO) along with the 3TB Seagate Baracuda Harddrive. This software+hardware combination works extreamly well, giving me a massive C: drive, along with frequently used applications loading almost instantly.
