ASRock WS TR 360D Black All in One Liquid Server CPU Cooler

Exclusively Designed for AMD Threadripper Workstation Platforms

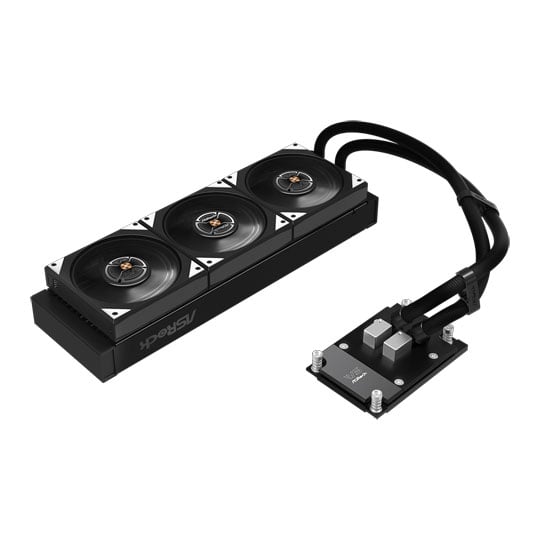

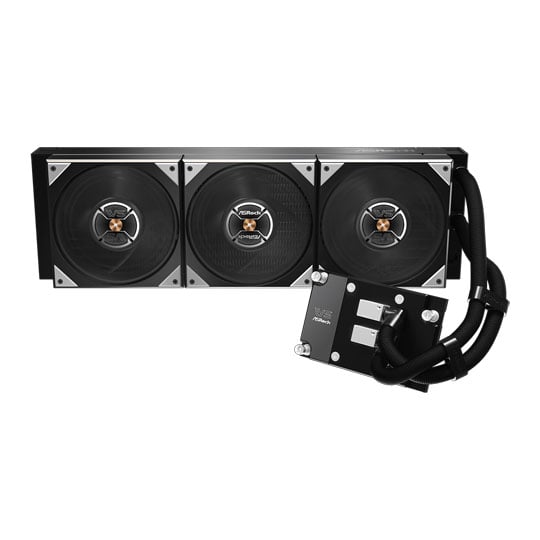

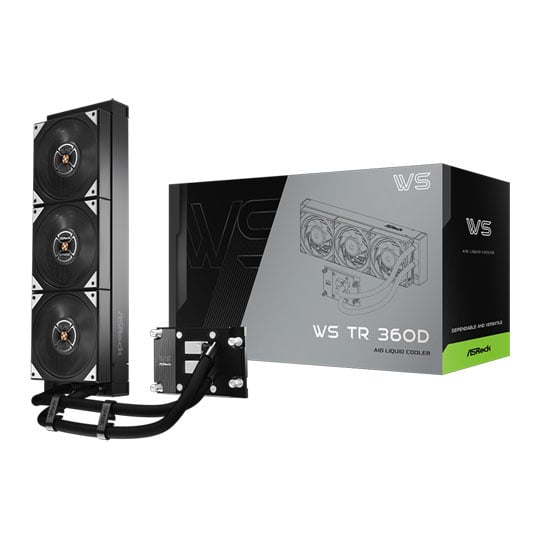

The ASRock WS TR 360D AIO is a 360mm all-in-one liquid cooler built for AMD Threadripper and EPYC processors, with support for sTR5, SP6, sWRX9, sWRX8, sTRX4, TR4 and SP3 sockets. Featuring three 120mm dual-ball bearing fans running at 0–3000 ±10% RPM for up to 89.7 CFM airflow and 4.7 mmH2O air pressure, it combines a 4000 ±10% RPM pump with a copper cold plate and 450mm IIR + EPDM tubing. Built for workstation and server environments, the WS series uses a dual-pump architecture, 38mm high-density radiator and brazed full-copper cold plate to deliver stable thermal performance for high-core processors, while precision CNC mounting, LCP fan blades and industrial-grade dual-ball bearings support lasting reliability and continuous performance for professional creators and engineers. A 6-year AIO cooler module warranty is included, along with ASRock Therm-X1 thermal grease.

Dual-Pump Architecture with Buzzer Alarm

Ensures redundant, uninterrupted cooling for high-core, long-duration workloads—delivering stability and reliability for professional workstation environments. Audible alert activates instantly if one pump fails, ensuring system protection and minimizing downtime risk.

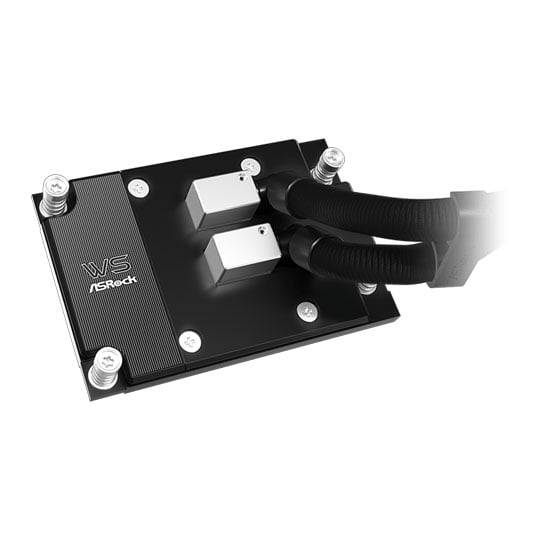

38mm Radiator and Brazed Full-Copper Cold Plate

Thick, high-density fin array provides exceptional heat dissipation capacity to sustain continuous heavy workloads, while a precision-brazed monolithic copper cold plate enables maximum thermal conductivity and zero-leak integrity for ultra-reliable 24/7 operation.

Aerospace-Grade LCP Fan

Crafted from aerospace-grade LCP (Liquid Crystal Polymer), the striped ring blades maintain flawless geometry under extreme RPM and thermal stress — ensuring enduring precision, durability, and performance stability. The dual-bearing mechanism delivers consistent, long-lasting performance even under continuous high-temperature operation. Built for superior concentricity, ensuring stable and effortless rotation under extreme conditions. It also has a Zero RPM mode.

IP54 Rated Cooling with Hidden Connectors

IP54 environmental protection safeguards the motor and bearing assembly, improving reliability in dust-prone and high-humidity operating conditions. Cables remain hidden between fans, with only a single cable required to connect to the motherboard for a cleaner build. Integrated connectors provide a firm and precise connection between fans to ensure stable power and signal transmission for consistent operation.

Industrial-Grade IIR + EPDM Sleeved Tubing

The 450mm tubing uses a multi-layer IIR + EPDM construction with a braided outer sleeve, providing high pressure resistance, low coolant permeation, and long-term bend durability. Multifunctional tube clips allow secure placement, installation and a whole new level of organisation in server racks.

Pre-applied ASRock Therm-X1 Thermal Grease

Pre-applied ASRock Therm-X1 Thermal Grease ensures consistent contact, improves heat transfer, and streamlines installation for reliable long-duration performance.

• 360mm All-in-One liquid cooler with 3x 120mm fans for AMD Threadripper and EPYC Processors.
• AMD sTR5, SP6, sWRX9, sWRX8, sTRX4, TR4 and SP3 socket compatibility.
• Dual-ball bearing fans with 0–3000 ±10% RPM speed, up to 89.7 CFM airflow, 4.7 mmH2O air pressure and 39.7 dB(A) noise.
• Copper cold plate.
• 4000 ±10% RPM pump speed with 3-pin connector.
• 450mm IIR + EPDM tubing.
• ASRock Therm-X1 thermal grease included.
• 6-year AIO cooler module warranty.
