ASRock AMD EPYC 7003 ROMED8U-2T SP3 PCIe 4.0 MicroATX Motherboard

ASRock ROMED8U-2T, EPYC 7003, SP3 LGA4094, DDR4, PCIe 4.0, M.2, Dual 10GbE, USB 3.2 Gen1, MicroATX
MORE INFO
MORE INFO

Scan code: LN125555 Manufacturer code: ROMED8U-2T
£689.99
£5.48 Next day delivery
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £230.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £24.17 / month (APR 16.9%) for 36 months or 0% for 4 months
  • With a 10% deposit from just £17.23 / month (APR 15.9%)
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

Product Overview

A Compact Solution for your Business Needs

Offering 8x DIMM slots, 3x PCIe4.0 x16, 2x SlimSAS (PCIe4.0 x8), 1x M.2, 11x SATA, 2x 10GbE RJ-45 and support for an AMD EPYC™ 7003 processor, this compact MicroATX motherboard will provide your business with exceptional long-lasting performance.

Features

• Micro-ATX (9.6" x 9.6").
• Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors.
• 8 DIMM slots (1DPC), supports DDR4 DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS.
• 3 PCIe4.0 x16.
• 2 SlimSAS (PCIe4.0 x8).
• Supports 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s).
• 11 SATA 6Gb/s.
• 2 RJ45 (10GbE) by Intel® X710-AT2.
• Remote Management (IPMI).

Specifications
Core Specifications
Edition ROMED8U-2T
Form Factor MicroATX
CPU Socket SP3
Chipset System-on-Chip
RAM Memory Support
Memory Type DDR4
Memory Channel
Memory Type (ECC)
Memory Type (R/U) RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 256GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Integrated ASPEED AST2500
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 3 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 6-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Fan Header
  • 1 x HDD activity LED connector
  • 1 x IPMB Connector/Header
  • 1 x NMI Button
  • 1 x PMBUS Header
  • 1 x Power Switch with LED
  • 11 x SATA III - 6Gb/s
  • 1 x SGPIO header
  • 1 x SMBus header
  • 1 x speaker header
  • 1 x TPM Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 10G LAN
Network Chip/Modules
  • 2 x Intel® X710-AT2 (10G LAN)
  • 1 x Realtek RTL8211E (PHY)

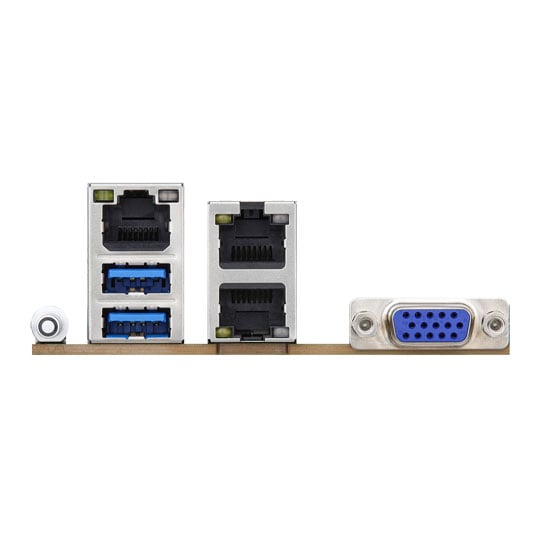

Rear I/O Connectors
  • 2 x RJ-45
  • 1 x RJ45 Dedicated IPMI port
  • 1 x UID Button/UID LED
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
