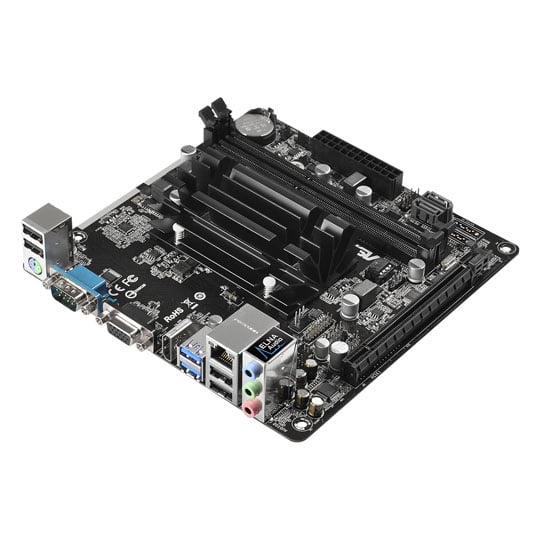

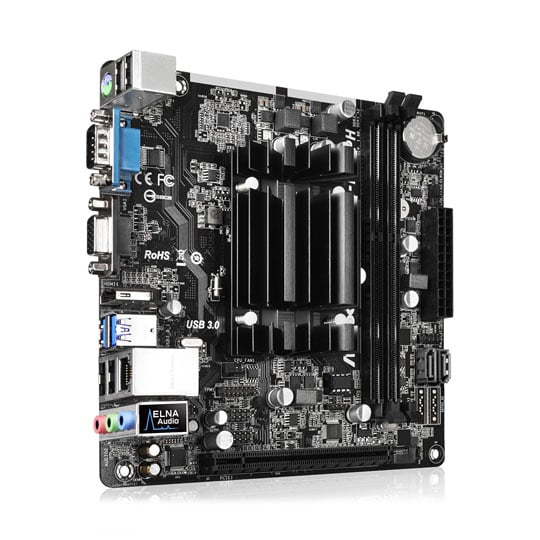

ASROCK Integrated AMD A4-5000 Quad Core CPU Mini ITX Motherboard with Radeon HD8330 GPU

ASRock QC5000M-ITX/PH, Integrated CPU, Quad Core AMD A4-5000 1.5GHz, System-on-Chip, DDR3, Radeon HD 8330 GPU, Mini ITX

Scan code: LN70501 Manufacturer code: QC5000M-ITX/PH Request call
End Of Life
High End
Product Overview AMD 15W A4-5000 Quad-Core APU
Accelerated Processing Unit (APU) is the unique combination of CPU and GPU computing technologies. The onboard AMD A4-5000 not only provides excellent computing capability with its four cores, but also vastly improves today's Internet, video processing, playback, and gaming experience.

Passive Heatsink Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

4K x 2K
4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Get ready to lose yourself in this eye popping virtual reality.
* Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.

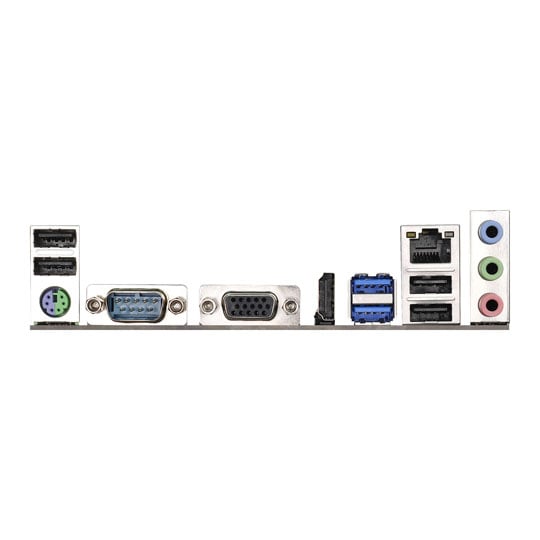

Packed with a D-Sub + HDMI combo, plus an extra COM port.

High Expandability
Two USB 3.0 5Gb/s ports for supporting all of your peripherals with fast data transfer speed.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Surge Protection
Protects the motherboard from excessive surges from the power supply unit.

Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.

ESD Protection
USB: Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN: Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs: MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process. Features • AMD FT3 Kabini A4-5000 Quad-Core APU
• All Solid Capacitor design
• Supports DDR3 1600
• 1 PCIe 2.0 x16
• Graphics Output Options : D-Sub, HDMI
• Integrated AMD Radeon™ HD 8330 Graphics, DX11.1, PS5.0
• 2 x USB 3.0, 8 x USB 2.0 (4 Front, 4 Rear), 2 x SATA3, 1 x COM Port
• Realtek Gigabit LAN
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• Supports ASRock Full Spike Protection, USB Key
