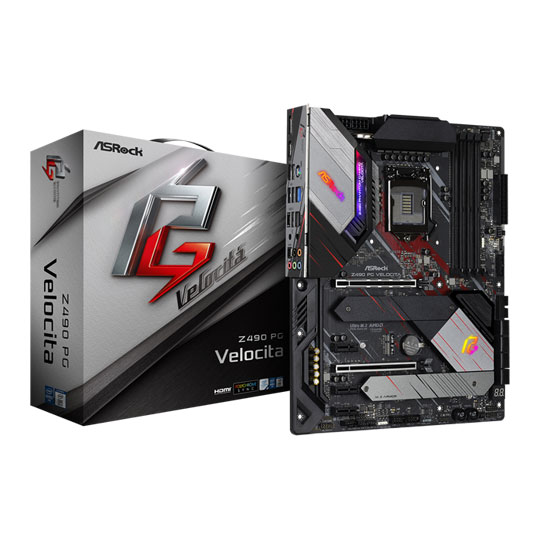

ASRock Z490 Phantom Gaming Velocita ATX Motherboard

ASRock Phantom Gaming Velocita, Intel Z490, S 1200, DDR4, SATA3, 2x M.2, CrossFire, 2.5GbE, USB 3.2 A+C, ATX

Thumbnail 1 : ASRock Z490 Phantom Gaming Velocita ATX Motherboard Thumbnail 2 : ASRock Z490 Phantom Gaming Velocita ATX Motherboard Thumbnail 3 : ASRock Z490 Phantom Gaming Velocita ATX Motherboard Thumbnail 4 : ASRock Z490 Phantom Gaming Velocita ATX Motherboard
Scan code: LN107247 Manufacturer code: 90-MXBBT0-A0UAYZ
Was: £263.99
£218.78
Order now and get it tomorrow, Fri 2nd Oct
From £9.12 / month (APR 0%)
Monthly Payment: £18.24
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £218.78
Total inc. interest: £218.78
Monthly Payment: £9.12
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £218.78
Total inc. interest: £218.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 2nd Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

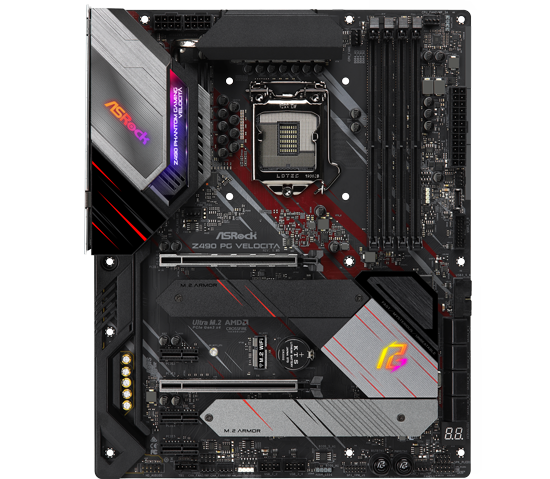

ASRock Z490 PG Velocita Intel 10th Gen Series ATX Motherboard

ASRock Z490 PG Velocita Intel 10th Gen ATX Motherboard

FAST. MYSTERIOUS. UNBEATABLE. Improve your gaming marathons with revolutionary Z490 motherboards. Introducing the ASRock Z490 PG Velocita ATX motherboard, which supports 10th Gen and future generation Intel® Core™ Processors and AMD Quad CrossFireX™ and CrossFireX™ slots. The Z490 Phantom Gaming Velocita features sturdy components and completely smooth power delivery to the CPU. Plus, the 12 Power Phase Design offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Light up your style with Polychrome RGB Lighting where gamers can choose from various effects whilst Polychrome RGB Sync-compatible devices can be synchronized. Featuring a wealth of I/O ports, next generation connectivity and Phantom Gaming 2.5 Gb/s LAN up to 2.5X than standard Gigabit LAN.


Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

Phantom Gaming is Designed by Gamers and for Gamers!

Design of ASRock PG Velocita

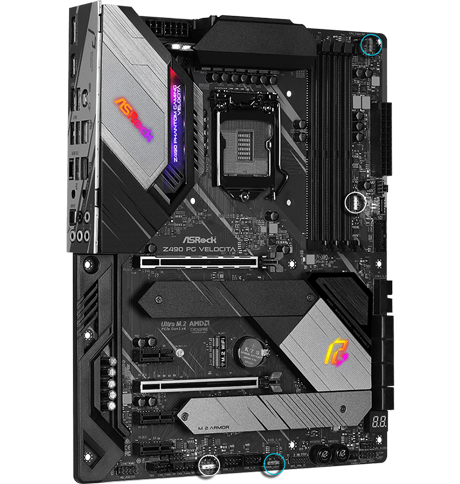

OWN YOUR UNIQUE GAMING STYLE WITH POLYCHROME RGB LIGHTING It’s all about bringing a new gaming experience to gamers! A design that delivers and is more reliable, your PC transformed with revolutionary Z490 motherboards. With outstanding performance and superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes two Addressable RGB LED Headers and two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

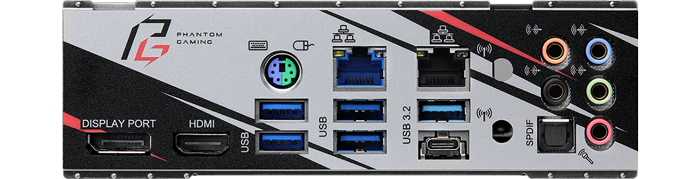

Boosted for Maximum Networking Performance

networking connectivity

PHANTOM GAMING 2.5G LAN   |   DUAL USB 3.2 Gen2 (Type A & C)   |   Front USB 3.2 Gen1 Type-C Featuring the flexible integrated I/O shield that reserves tolerance for fitting perfectly without fuss. Boost your networking performance with Phantom Gaming 2.5 Gb/s LAN up to 2.5X than standard Gigabit LAN. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Additionally, a Front USB 3.2 Gen1 Type-C header delivers up to 5Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

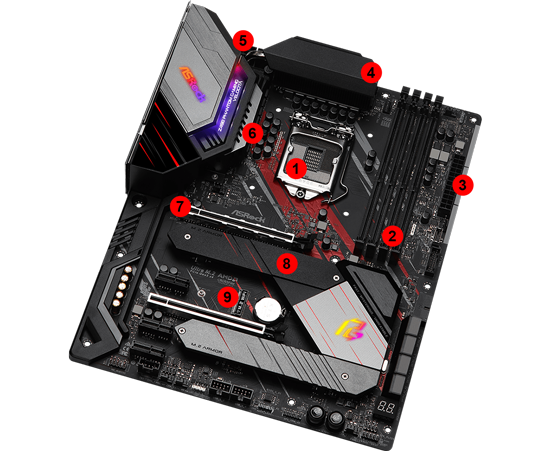

Z490 PG Velocita Component Breakdown

Design of ASRock

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. XXL Heatsink   |   5. 8+8 Pin Hi-Density Connector
6. Digi Power with Dr.MOS   |   7. Dual PCIe Steel Slots / 15μ Gold Contact in VGA PCIe Slot
8. Dual Ultra M.2 Sockets PCIe Gen3 x4 & SATA3   |   9. M.2 (Key E) Slot for Wi-Fi (*Module is not included)

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   GOLD AUDIO CAPS   |   Realtek Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Z490 PG Velocita motherboard offers completely immersive audio and which gold audio jacks this provides stable sound transmission.

Built with a Huge Boost featuring PCI Express 4.0

Hardware Ready and Reinforced! Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! Z490 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard

PCIe Gen4

PCIE 4.0 CLOCK GENERATORAn additional external base clock generator that delivers PCI Express 4.0 standard.

Steel Slot

PCIE 4.0 STEEL SLOTEquipped with reinforced steel slot which is based on PCI Express 4.0 hardware requirement.

M.2 Socket

PCIE 4.0 M.2 SOCKETHyper M.2 Key M socket, wth PCI Express 4.0 hardware for x4 high speed SSDs.

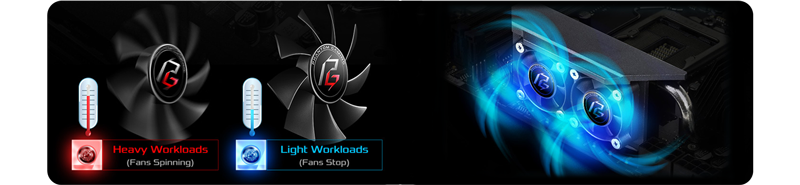

Optimized for Effective Water Cooling

Heatsink Design

XXL ALUMINIUM ALLOY HEATSINK WITH ACTIVE FAN DESIGN TThe XXL Aluminium Alloy Heatsink design with active fan, effectively improves heat dissipation and promotes overall performance. This is aimed for devoted gamers and enthusiasts to bring a new computing experience paired with Intel’s 10-Core processors. Plus, with 0dB Silent Cooling gamers can experience completely silent computing, as this silent cooling feature automatically adjusts fan speed and even command it stop working when the temperature goes low. An integrated water pump header offers a maximum of 2A power for supporting the most popular water pumps. Adjust the voltage of water pump to get higher cooling with lower noise.

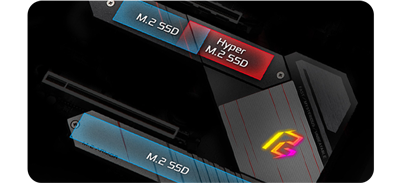

A Solid M.2 Solution and SSD Armor Protection

M.2 Heatsink Armor

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. ASRock provides an M.2 armor solution that makes SSDs run in a certain low temperature.

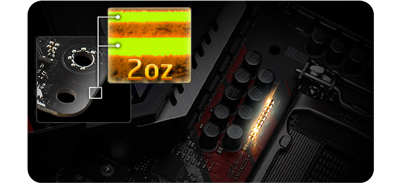

Heat Dissipating PCB Technology

PCB 2oz copper

Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees. 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Z490 Phantom Gaming Velocita
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • Intel Rapid Storage Technology 17
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 2 x RGB LED connector
  • 8 x SATA III - 6Gb/s
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45 with LED
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 305 mm
Note
Additional Information
Scan Code LN107247
Model Number 90-MXBBT0-A0UAYZ
GTIN 4710483931123
