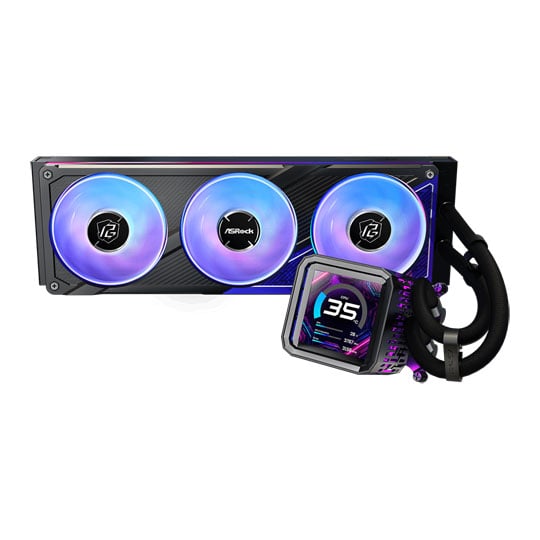

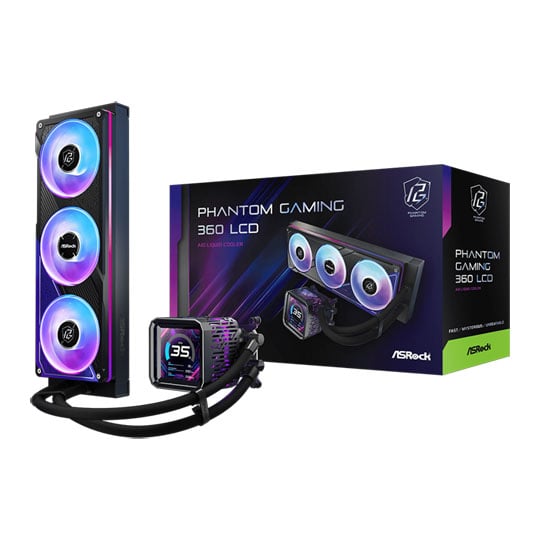

ASRock Phantom Gaming 360 LCD Black All in One Liquid CPU Cooler
ASRock Phantom Gaming 360 LCD AIO Hydro CPU Cooler, Black, 3 x 120mm ARGB PWM Fans, Intel / AMD
Email me when the availability or price changes
Finance this product
- From £13.34 / month (APR 0%) for 12 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Phantom-Powered Domination
The ASRock Phantom Gaming LCD brings a gaming-focused feature set to high-performance AIO cooling, combining powerful airflow with a customisable 3.4-inch IPS LCD display. Compatible with AMD AM5 and AM4, plus Intel LGA1851 and LGA1700 sockets, it features Fluid Dynamic Bearing fans running at 0–2400 ±10% RPM for up to 61.28 CFM airflow and 3.11 mmH2O air pressure, alongside a dedicated 3000 ±10% RPM VRM fan. A 1200–3100 ±10% RPM PWM pump, copper cold plate and 450mm IIR + EPDM tubing support the cooling system, while the 480 × 480, 24-bit, 60 Hz IPS display lets gamers explore built-in animations or import their own for a fully customised experience. Backed by a 6-year AIO cooler module warranty and 2-year display module warranty, Phantom Gaming puts its gamer-designed, gamer-focused identity directly into the cooler.

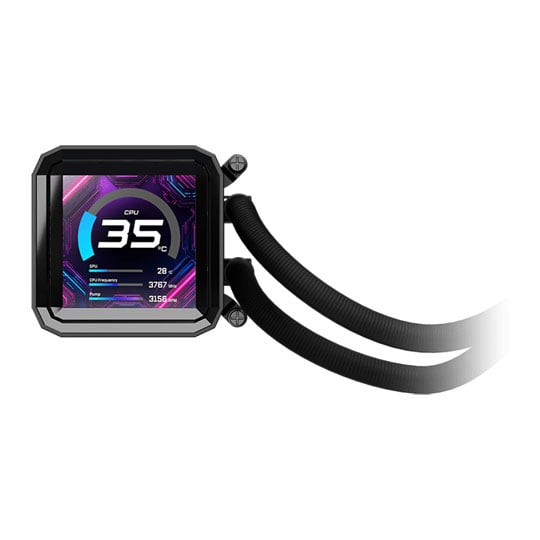

Polychrome DISPLAY
The LCD water block combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support. Explore built-in animations or import your own for a fully customized display experience.
3-Phase Pump Motor
The pump uses a precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor. Its design delivers stronger coolant flow, extended durability and consistent cooling performance for CPU stability.
Optimised Thermal Fan Design
Integrated radial ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency.
Next-Gen Cooling System
The pump incorporates a continuous rotating magnetic field for higher energy conversion efficiency, while low torque ripple supports smooth, stable operation. Balanced current distribution minimises copper loss, with reduced core loss improving overall operating efficiency. Lower thermal output helps maintain efficiency during prolonged operation, while the simplified motor architecture removes the need for starting capacitors or coils to improve reliability.
Striped Ring FDB Fans
The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator, driving high-volume intake to keep power delivery components cool and stable, while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency. Fluid Dynamic Bearing minimizes friction and vibration for whisper-quiet, stable cooling and long service life.

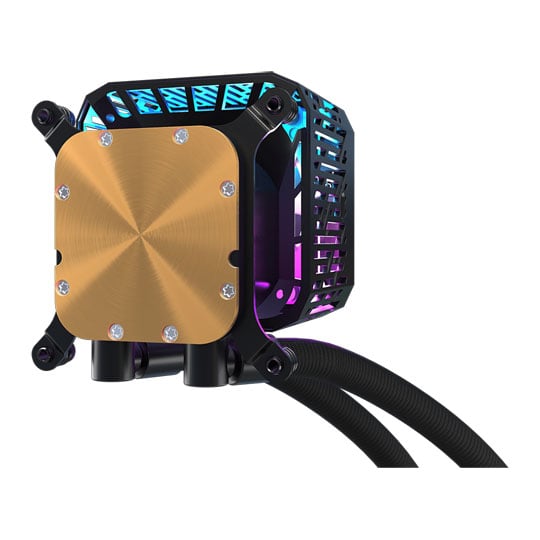

Precision-Machined Copper Cold Plate
The finely crafted copper cold plate provides close surface contact for efficient heat conductivity and long-lasting cooling performance.
ASRock Polychrome RGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.
Premium Durable Tubing
The tubing uses an IIR+EPDM core designed to resist coolant evaporation and deformation, reinforced with a braided sleeve for added durability and protection.
Pre-Installed Fans & Tube Clips
Radiator fans come pre-installed with neatly routed cables to simplify installation. Multifunctional tube clips secure tubing placement and help maintain a tidy finished build.
ASRock Therm-X1 Thermal Grease
ASRock Therm-X1 thermal grease offers high thermal conductivity for efficient heat transfer, supporting system stability and helping extend CPU lifespan.
• 360mm All-in-One liquid cooler with ARGB ambient lighting, 3x 120mm fans and a 3.4-inch IPS LCD display for AMD Ryzen and Intel Core Processors.
• AMD AM5 and AM4 socket compatibility.
• Intel LGA1851 and LGA1700 socket compatibility.
• Fluid Dynamic Bearing fans with 0–2400 ±10% RPM speed, up to 61.28 CFM airflow, 3.11 mmH2O air pressure and 31.4 dB(A) noise.
• 3000 ±10% RPM VRM fan with PWM 4-pin connector
• Copper cold plate.
• 1200–3100 ±10% RPM pump speed with PWM 4-pin connector.
• 3.4-inch IPS LCD display with 480 × 480 resolution, 24-bit colour, 250 cd/m² brightness and 60 Hz refresh rate.
• USB Type-C to motherboard 9-pin display connector.
• 450mm IIR + EPDM tubing.
• ASRock Therm-X1 thermal grease included.
• 6-year AIO cooler module warranty.
• 2-year display module warranty.
