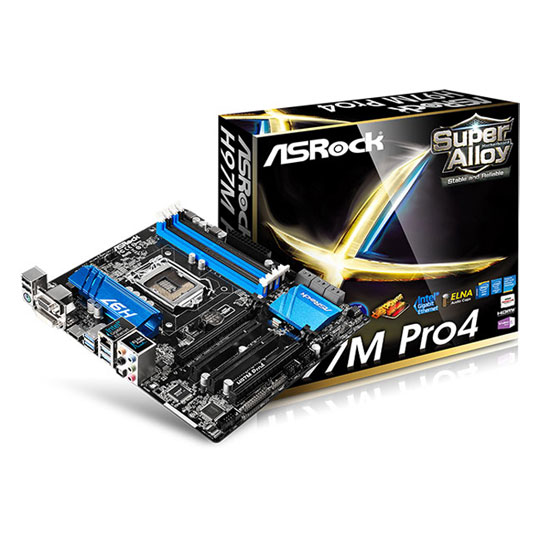

ASRock H97M PRO4 Micro-ATX Motherboard
Scan code: LN60447
Manufacturer code: H97M PRO4
End Of Life
ASRock H97M PRO4 Micro-ATX Motherboard
ASRock H97M PRO4, Intel H97, S1150, DDR3, PCIe 3.0 (x16), Quad CrossFireX, VGA/DVI/HDMI, Micro ATX
Scan code:
LN60447
Manufacturer code:
H97M PRO4
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
Premium Alloy Choke
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 m?, delivering higher efficiency and lower temperature.
Sapphire Black PCB
ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
ELNA Audio Caps
Who says high quality audi is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
Digi Power
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card. Features • ASRock Super Alloy
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- NexFET™ MOSFET
- Sapphire Black PCB
• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Solid Capacitor design, Digi Power
• Supports Dual Channel DDR3 1600
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCI
• Supports AMD Quad CrossFireX™ and CrossFireX™
• Graphics Output Options: D-Sub, DVI-D, HDMI
• Supports Triple Monitor
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
• Intel® Gigabit LAN
• 6 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
• 1 Printer Port Header, 1 COM Port Header, 1 Thunderbolt™ AIC Connector
• Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 m?, delivering higher efficiency and lower temperature.
Sapphire Black PCB
ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
ELNA Audio Caps
Who says high quality audi is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
Digi Power
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card. Features • ASRock Super Alloy
- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- NexFET™ MOSFET
- Sapphire Black PCB
• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Solid Capacitor design, Digi Power
• Supports Dual Channel DDR3 1600
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCI
• Supports AMD Quad CrossFireX™ and CrossFireX™
• Graphics Output Options: D-Sub, DVI-D, HDMI
• Supports Triple Monitor
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
• Intel® Gigabit LAN
• 6 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
• 1 Printer Port Header, 1 COM Port Header, 1 Thunderbolt™ AIC Connector
• Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
