Scan code: LN55743 Manufacturer code: H81 PRO BTC R2.0

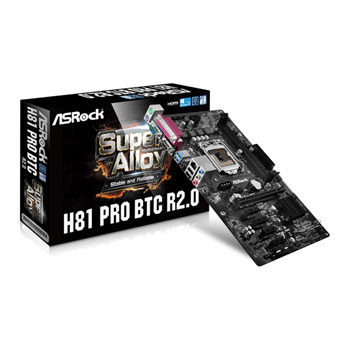

ASRock Intel H81 Pro R2.0 BTC Cypto Coin Mining ATX Motherboard

ASRock H81 PRO BTC R2.0, Intel H81, S 1150, DDR3, 1 PCIe x16, 5 PCIe x1, SATA3, Realtek GbE, USB 3.1 Gen1 A, ATX

Thumbnail 1 : ASRock Intel H81 Pro R2.0 BTC Cypto Coin Mining ATX Motherboard Thumbnail 2 : ASRock Intel H81 Pro R2.0 BTC Cypto Coin Mining ATX Motherboard Thumbnail 3 : ASRock Intel H81 Pro R2.0 BTC Cypto Coin Mining ATX Motherboard Thumbnail 4 : ASRock Intel H81 Pro R2.0 BTC Cypto Coin Mining ATX Motherboard
Scan code: LN55743 Manufacturer code: H81 PRO BTC R2.0
3xs Approved
£71.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview ASRock’s BTC motherboards are equipped with six PCI expansion slots, so that miners may install up to six graphics cards to mine simultaneously. Maximize your chances of getting bitcoins now!

Besides adequate PCIe expansion slots, ASRock’s BTC motherboards also have two extra 4-pin power connectors for offering more power for your graphics cards. Never underestimate these two small power connectors that distinct ASRock’s BTC motherboards from other fake mining motherboards! They provide stable voltages and greatly reduce the risks of burning your motherboard or graphics cards.

Additional information can be found in the pdf manual below below:
Data Sheet Features • ASRock Super Alloy.
• Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150).
• All Solid Capacitor design.
• Digi Power, 4 Power Phase design.
• Supports Dual Channel DDR3 1600.
• 1x PCIe 2.0 x16, 5x PCIe 2.0 x1.
• Graphics output options: D-Sub, HDMI.
• 5.1 CH HD Audio (Realtek ALC662 Audio Codec).
• 2x SATA3, 2x SATA2.
• 2x USB 3.1 Gen1, 6 USB 2.0 (4x Front, 2x Rear).
• Realtek Gigabit LAN.
• Supports Full Spike Protection, ASRock Live Update & APP Shop.
Specifications
Core Specifications
Edition H81 Pro BTC R2.0
Form Factor ATX
CPU Socket 1150
Chipset Intel H81
Specifications
Cooling
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
Max. Memory Capacity 16GB (2x8GB)
Audio
Audio Realtek ALC662 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 2.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 5 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
SATA Support SATA3 / SATA2
RAID Support via Not Supported
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin CPU Fan Connector
  • 1 x 3-pin Power Fan Connector
  • 1 x 3-pin System Fan Connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin Molex for PCIe (Power)
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Front Panel Audio Header
  • 1 x IR Header
  • 1 x Power LED Header
  • 1 x S/PDIF-Out Header
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111GR (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x Parallel (LPT) Port with ECP/EPP Support
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 178 mm
Note
Additional Information
Scan Code LN55743
Model Number H81 PRO BTC R2.0
GTIN 4717677322453
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Intel Z97 Chipset
Intel Z97 Chipset
Date Issued: 11th May 2014

In June, 2013, Intel launched an assemblage of new 'Haswell' Core series processors presented in the LGA 1150 form factor. Inherently different to the LGA 1155 form factor it succeeded, LGA 1150 spurred the release of a new chipset family known as the 8-series.

Read More

New 4th Generation CPUs
New 4th Generation CPUs
Date Issued: 9th May 2014

Intel launched a bevy of Haswell Core processors last June. Presented in a LGA1150 form factor and therefore physically different to the LGA1155 Ivy Bridge processors of the year before, new chipsets were also launched to support these new chips.

Read More

Reviews
ASRock H81 PRO BTC R2.0, Intel H81, S 1150, DDR3, 1 PCIe x16, 5 PCIe x1, SATA3, Realtek GbE, USB 3.1 Gen1 A, ATX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Great quality nice stealthy black design. Fantastic motherboard with great quality everything you would need. However, would be nice to have seen usb 3.0 compatability and if the molex 4pin power connectors were a bit more convenient would be perfect but overall still great.
Date published: 2017-09-21
  • y_2019, m_8, d_16, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_55743, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

how many Sata ports

The listing only says supports SATA 3 not how many sockets (I need 6)
Asked by: BrianD
Hi, 2 x SATA3, 2 x SATA2, 2 x USB 3.0, 6 x USB 2.0 (4 Front, 2 Rear) Regards,
Answered by: LukeW
Date published: 2019-01-09
