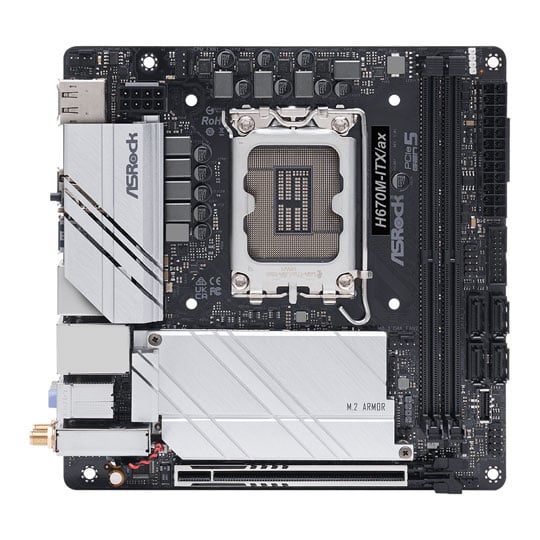

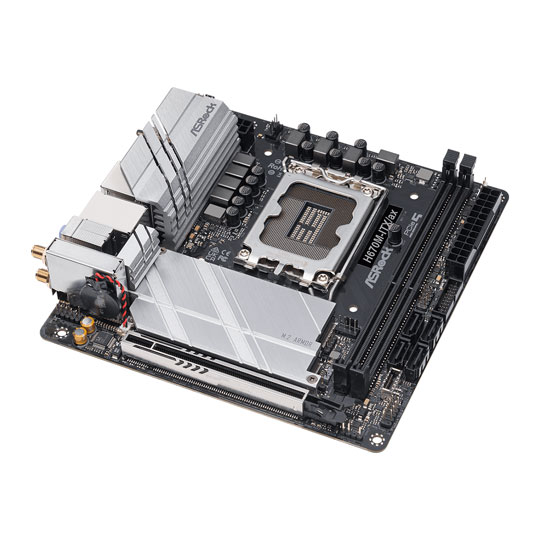

ASRock Intel H670M-ITX/AX PCIe 5.0 Mini-ITX Motherboard

ASRock H670M-ITX/AX, Intel H670, S 1700, DDR4, PCIe 5.0, SATA3, 2x M.2, 2.5GbE, ax WiFi/BT, Mini-ITX

Thumbnail 1 : ASRock Intel H670M-ITX/AX PCIe 5.0 Mini-ITX Motherboard Thumbnail 2 : ASRock Intel H670M-ITX/AX PCIe 5.0 Mini-ITX Motherboard Thumbnail 3 : ASRock Intel H670M-ITX/AX PCIe 5.0 Mini-ITX Motherboard Thumbnail 4 : ASRock Intel H670M-ITX/AX PCIe 5.0 Mini-ITX Motherboard
Scan code: LN122927 Manufacturer code: 90-MXBHZ0-A0UAYZ
There are 5 people viewing this product
£179.99Item due on 31 January 2022
Due 31st Jan
From £15.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £15.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £179.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

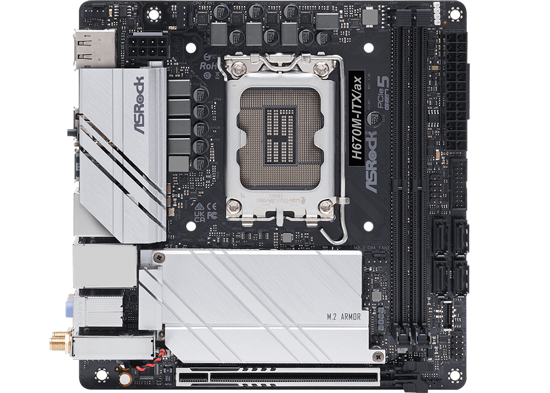

ASRock H670M-ITX/ax PCIe 5.0 Intel 12th Generation Motherboard

ASRock H670M-ITX/ax Motherboard

Compact. Blazing Speed. Easy-to-use. Introducing the new H670 series of motherboards from ASRock. The H670M-ITX/ax PCIe 5.0 supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR4 memory and optimized power phase design. The innovative design of the H670M-ITX/ax has built-in RGB headers, users can customize and synchronize RGB LED devices with Polychrome RGB Sync-certified accessories. Underneath its appearance lie plentiful powerful features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.

Intel H670Chipset

LGA 1700CPU Socket

Intel 12th GenerationCompatible Processors

Mini-ITXForm Factor

Optimized VRM Design

Breakdown

Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Compared to traditional discrete MOSFETs, DR.MOS intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking!

1. SPS (Smart Power Stage)
2. 8 Power Phase Design
3. Supports 12th Gen Intel® Core™ Processors
4. Supports DDR4 5000MHz (OC)

How Sound is Meant to be Heard

Audio

Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

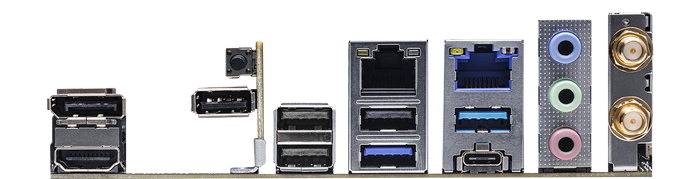

Superb Connectivity, Convenient USB Ports

ports

with Dragon 2.5 Gb/s LAN This motherboard has the latest USB 3.2 Gen2x2 Type-C, which delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing-fast data transfer interface with reversible USB Type-C design that fits the connector either way. The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet.

Polychrome RGB Illumination

RGB

Light up your rig This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

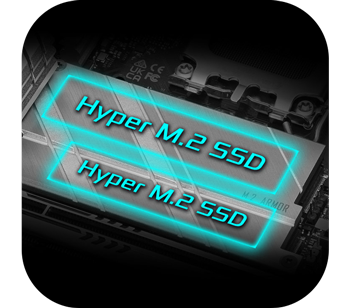

High Speed M.2 Solution

m2

PCIe 4.0 for SSD This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

PCIe 5.0 and Surface-Mount Tech

pcie

Breathtaking bandwidth Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Lower Latency with High-Speed WiFi 6E

usb

Wi-Fi 6E 802.11axWiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Specifications
Core Specifications
Edition H670M-ITX/AX
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel H670
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 3200
  • DDR4 - 5000+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 1 x Thunderbolt AIC Connector
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Dragon RTL8125BG (2.5GbE LAN)

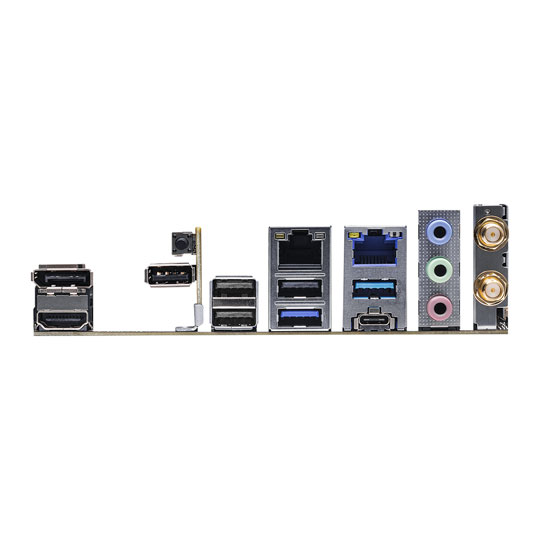

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 2 x RJ-45 with LED
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
