End Of Life Sale

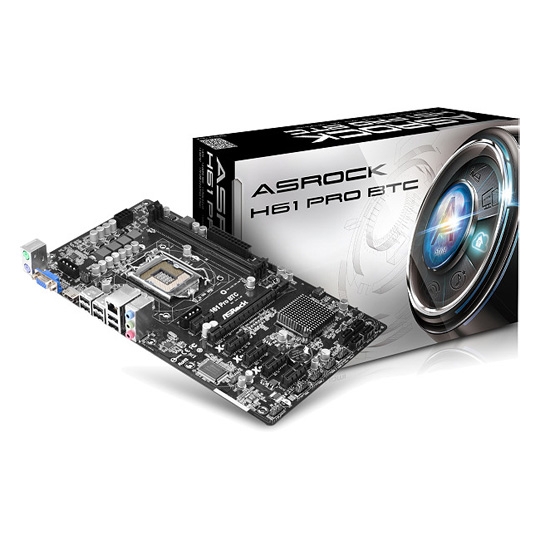

H61 Pro BTC Intel S1155 ASRock ATX Motherboard

ASRock H61PROBTC, Intel H61, S1155, DDR3, SATA II 3Gb/s 6 PCI Express Slots D-Sub (VGA) HDMI, ATX

ASRock
Scan code: LN55919 Manufacturer code: H61 PRO BTC Request call
End Of Life
Mid Range
Product Overview Secret #1
Does your motherboard have enough PCIE slots? - Bitcoin mining

Bitcoin is a digital currency that is recognized globally, and this motherboard is specifically designed for mining bitcoins. This robust mining machine is built with the best materials to help miners hit jack pot.


ASRock’s BTC motherboards are equipped with six PCI expansion slots, so that miners may install up to six graphics cards to mine simultaneously. Maximize your chances of getting bitcoins now!

Secret #2
Can your motherboard provide stable voltages

Besides adequate PCI expansion slots, ASRock’s BTC motherboards also have two extra 4-pin power connectors for offering more power for your graphics cards. Never underestimate these two small power connectors that distinct ASRock’s BTC motherboards from other fake mining motherboards! They provide stable voltages and greatly reduce the risks of burning your motherboard or graphics cards.

All Solid Capacitor Design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.

Next-Gen PCI-E 3.0 Support
This ASRock motherboard supports the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth of the next-gen PCI Express 3.0 VGA cards, thus providing ultimate graphics performance.

AXTU - The All-in-1 Tuning Software
ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA, IES and XFast RAM. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to adjust the CPU frequency, ratio and some voltages for optimal system performance. In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance. In XFast RAM, it fully utilizes the memory space that cannot be used under Windows® OS 32-bit CPU. Features • Supports 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 package
• 100% All Solid Capacitor design
• Supports Dual Channel DDR3 1600
• 1 x PCIe 3.0 x16, 5 x PCIe 2.0 x1
• Graphics Output Options : D-Sub, HDMI
• Realtek Gigabit LAN
• 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
• 4 x SATA2, 10 x USB 2.0 (4 Front, 6 Rear)
• Supports XFast 555, Dehumidifier, OMG, Fast, Restart to UEFI
