Scan code: LN88792 Manufacturer code: 90-MXB6R0-A0UAYZ

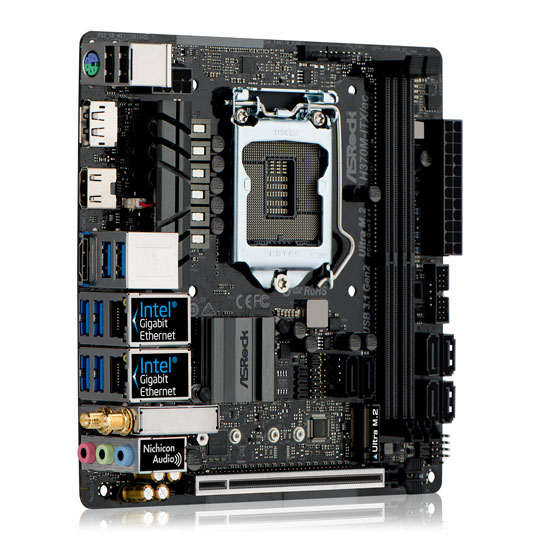

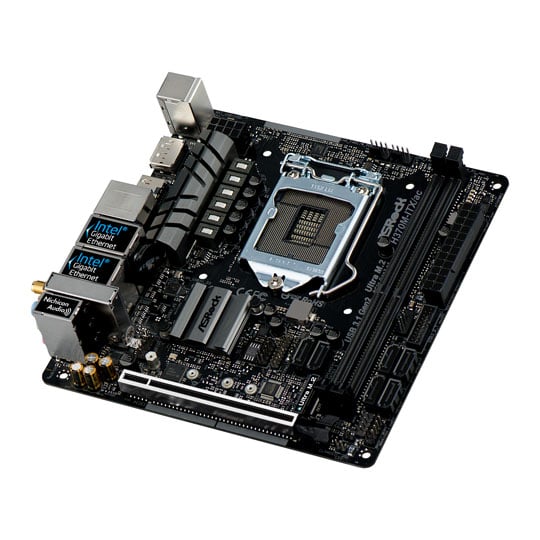

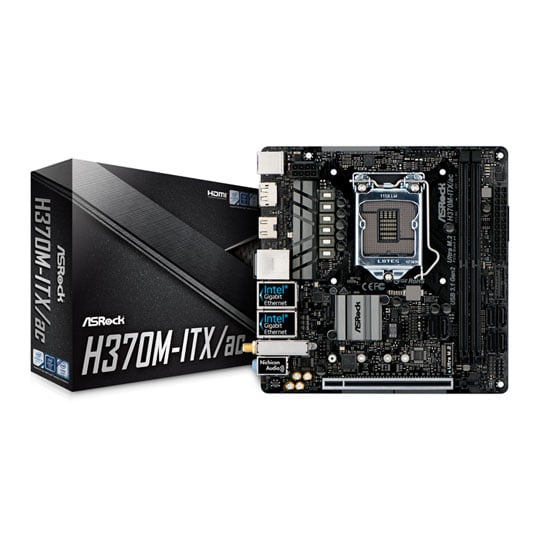

ASRock Intel H370M-ITX/ac WiFi Coffee Lake Mini ITX Motherboard

ASRock H370M-ITX/ac, Intel H370, S 1151, DDR4, SATA3, M.2, Dual GbE, ac WiFi, BT4.2, USB 3.1 Gen2 A, Mini-ITX

Thumbnail 1 : ASRock Intel H370M-ITX/ac WiFi Coffee Lake Mini ITX Motherboard Thumbnail 2 : ASRock Intel H370M-ITX/ac WiFi Coffee Lake Mini ITX Motherboard Thumbnail 3 : ASRock Intel H370M-ITX/ac WiFi Coffee Lake Mini ITX Motherboard Thumbnail 4 : ASRock Intel H370M-ITX/ac WiFi Coffee Lake Mini ITX Motherboard
Scan code: LN88792 Manufacturer code: 90-MXB6R0-A0UAYZ
£105.98Item currently awaiting an ETA
Pre order
From £9.52 / month (APR 14.9%)
Monthly Payment: £18.39
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £105.98
Total inc. interest: £110.33
Monthly Payment: £9.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £105.98
Total inc. interest: £114.16
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview ASRock H370M-ITX/ac Motherboard
For users that need the most compact platform available for the brand new Intel 8th Gen. Coffee Lake CPUs; enter the ASRock H370M-ITX/ac Mini-ITX Motherboard. Utilising Intel’s latest chipset; H370, the ASRock H370M-ITX/ac Motherboard crams a wealth of features designed to deliver fantastic performance & configurability into the ultra-compact Mini ITX form-factor, whilst bringing out the very best from your chosen Coffee Lake Processor. An Ultra M.2 Slot support blazingly fast PCIe NVMe SSDs for the ultimate in storage performance or SATA-based M.2 SSDs for more budget conscious system builders. Dual Gigabit Ethernet ports provide alternative LAN connectivity options, while the inclusion of on-board 802.11ac WiFi ensures your PCIe 3.0 x16 slot stays available for a discrete GPU, & all USB ports reserved for other peripherals, instead of being taken up by a 3rd party Wireless adapter. Home Theatre PC Builders will be pleased by the pair of HDMI ports & single DisplayPort on the rear panel, enabling users to get the most out of Intel’s improved UHD Graphics on the new 8th Gen Coffee Lake CPUs, & keeping systems slim. In addition, the Four USB 3.1 Gen2 Type-A ports on the backpanel, ensure the ASRock H370M-ITX/ac is ready for connection to a great deal of 10Gbps USB devices arriving in the near future.

Ultra M.2 (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit.

Dual Intel® Gigabit LAN
The on-board dual Intel® Gigabit LAN that ensure lower CPU utilization, better throughput and deliver better performance.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Dual Band 802.11ac WiFi
Besides the on-board LAN ports, users may also choose 802.11ac (2.4/5 GHz) wireless connections.

Triple Monitor
Choose up to three display interfaces to connect monitors and use them simultaneously.

PCI-E Steel Slots
Tailor-made for Heavy VGA cards.

Super Alloy Power
• Premium 60A Power Choke.
• Dual-Stack MOSFET.
• Nichicon 12K Black Caps.
• Sapphire Black PCB.
• High Density Glass Fabric PCB.
• 6 Phase Digi Power. Features • Supports 8th Generation Intel® Core Processors (Socket 1151).
• Supports DDR4 2666.
• 1 PCIe 3.0 x16.
• Graphics Output Options: 2 x HDMI, DisplayPort.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps.
• 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
• 4 USB 3.1 Gen2 10Gb/s (Rear).
• 4 USB 3.1 Gen1 (2 Front, 2 Rear).
• Dual Intel® Gigabit LAN.
• Intel® 802.11ac WiFi + BT 4.2.
Specifications
Core Specifications
Edition H370M-ITX/ac
Form Factor Mini-ITX
CPU Socket 1151
Chipset Intel H370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 2230/2242/2260/2280, PCIe 3.0/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 15
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector, Max. 1A (12W)
  • 1 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Intel® I219V (Gigabit LAN)

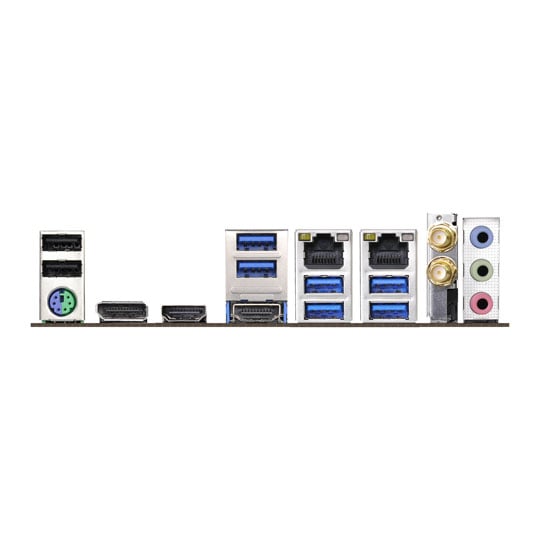

Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 2 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 4 x USB 3.1 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 170 x 170 mm
