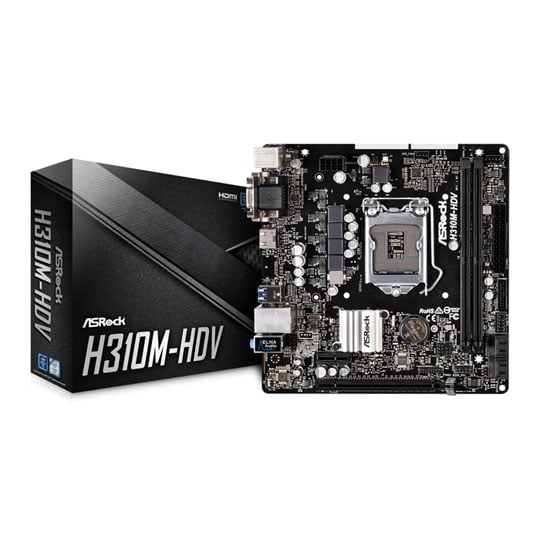

ASRock Intel H310M-HDV Coffee Lake Micro ATX Motherboard

ASRock H310M-HDV, Intel H310, S 1151, DDR4, SATA3, Realtek GbE, USB 3.1 Gen1 A, MicroATX

ASRock
Scan code: LN88954 Manufacturer code: 90-MXB6Z0-A0UAYZ Request call
£50.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Entry Level
Delivery options £5.48 By DPD On 27th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview ASRock H310M-HDV Motherboard
Find the ideal home or office orientated base for your brand new Intel 8th Gen. Coffee Lake CPU with the ASRock H310M-HDV MicroATX Motherboard. Utilising Intel’s latest streamlined chipset; H310, this ASRock mATX Motherboard retains the core features you expect, without the frills to get your day-to-day tasks done. So compact that if it were any smaller it would not be Micro ATX, the H310M-HDV is perfect for users who need an inexpensive & simple motherboard to get dependable performance from Coffee Lake. Sporting a mix of 3 different graphics outputs - whether you are using one of the latest displays with HDMI or DVI, or an older monitor using analog VGA, you’ll be able to take advantage of Intel’s improved UHD Graphics on the new 8th Gen Coffee Lake CPUs. In addition, HEVC 10-bit Decoding/Encoding & the inclusion of ELNA Audio Caps help keep your favourite media, be that video or music, immersive.

Three Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. In addition, the HDMI port supports up to 4K resolution.

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

ELNA Audio Caps
The 3uA leakage current of ELNA audio caps is the key to reduce noise levels and satisfy even the pickiest audiophiles.

Solid Capacitor Design
Brings more stable performance and ensures a longer lifespan.

Water Pump Header
This header provides a maximum of 1.5A power for supporting the most popular water pumps.

Full Spike Protection
Prevents your motherboard’s components (USB, LAN, audio) from being damaged by voltage spikes. Features • Supports 8th Generation Intel® Core Processors (Socket 1151).
• Supports DDR4 2666.
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x1.
• Graphics Output Options: DVI-D, D-Sub, HDMI.
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps.
• 4 SATA3.
• 4 USB 3.1 Gen1 (2 Front, 2 Rear).
• Supports Full Spike Protection, ASRock Live Update & APP Shop.
Specifications
Core Specifications
Edition H310M-HDV
Form Factor MicroATX
CPU Socket 1151
Chipset Intel H310
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Not Supported
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector, Max. 1A (12W)
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 191 x 188 mm
