Scan code: LN82394 Manufacturer code: 90-MXB5S0-A0UAYZ

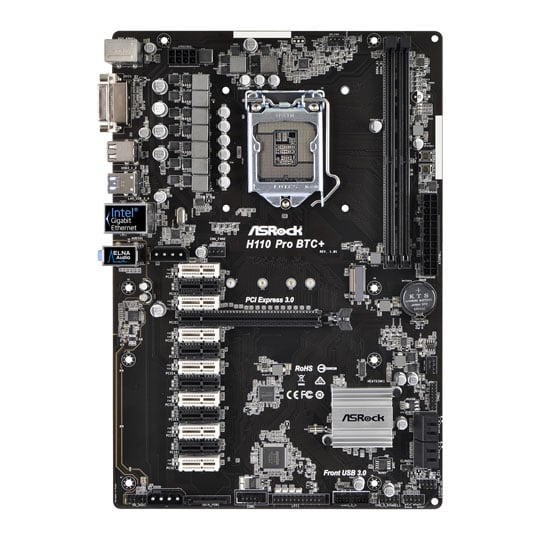

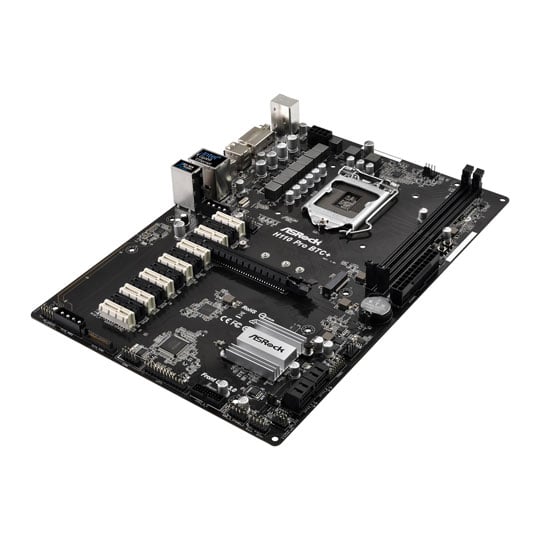

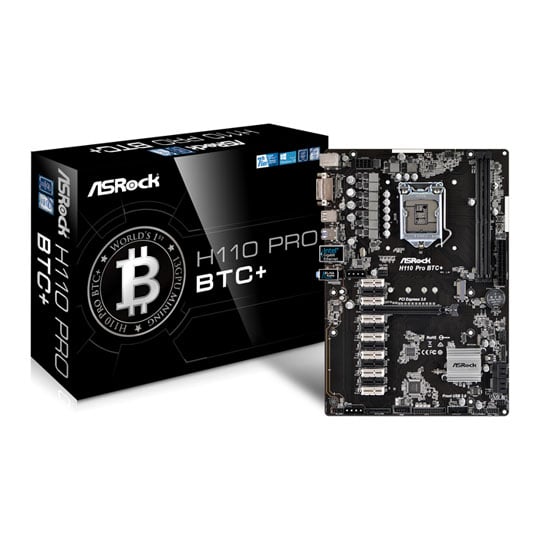

ASRock Intel H110 Pro BTC+ 13 PCIe Cryptocoin Mining ATX Motherboard

ASRock H110 Pro BTC+, Miner, Intel H110, S 1151, DDR4, PCIe 3.0 x16 + 12x PCIe 2.0 x1, SATA3, M.2 SATA, GbE, USB3.0, ATX

Thumbnail 1 : ASRock Intel H110 Pro BTC+ 13 PCIe Cryptocoin Mining ATX Motherboard Thumbnail 2 : ASRock Intel H110 Pro BTC+ 13 PCIe Cryptocoin Mining ATX Motherboard Thumbnail 3 : ASRock Intel H110 Pro BTC+ 13 PCIe Cryptocoin Mining ATX Motherboard Thumbnail 4 : ASRock Intel H110 Pro BTC+ 13 PCIe Cryptocoin Mining ATX Motherboard
Scan code: LN82394 Manufacturer code: 90-MXB5S0-A0UAYZ
£119.99
From £10.78 / month (APR 14.9%)
Monthly Payment: £20.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £124.93
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Jun 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Crypto Mining with H110 Pro BTC+
H110 Pro BTC+ is specifically designed for crypto mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The 13 on-board PCIe slots guarantee fast GPU mining, while the additional power connectors provide advanced system stability while mining.

ASRock H110 Pro BTC+ is ready to mine right out of box, no need to do any additional bios setup to enable multi GPU mining. Hybrid GPU system is very popular among hardcore miners, this motherboard is ready for up to 13 mixed AMD+NVIDIA GPU mining under Windows10, not only that, H110 Pro BTC+ is also fully compatible with professional mining operating system ethOS, it is able to mine Ethereum, Zcash, Monero, and other GPU-minable coins.

2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for better stability.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Power On / Reset Button
Power On & Off system with on-board button is a must for open frame mining.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Important - Please Note: This Motherboard is Intended for Cryptocurrency Mining. Features • 8 Phase Power Design: Designed with a 8 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU with lower temperature.
• Digi Power: For smooth and efficient CPU Vcore voltage.
• 3 Extra Power Connector: Extra 4-Pin & SATA power connector for maximum stability.
• 2oz Copper PCB: 2 ounce copper inner layers delivering lower temperature and higher efficiency for better stability.
• High Density Glass Fabric PCB: Protects the motherboard against electrical shorts caused by humidity.
• All Solid Capacitor Design: Brings more stable performance and ensures a longer lifespan.
• Power On/Reset Button: Power on & off system with on-board button is a must for open frame mining.
• M.2 Socket(SATA type): M.2 SSD for better cable management and performance.
• Intel I219V Gigabit LAN: Provides the best throughput performance, enhanced stability for extended time mining.

Important - Please Note: This Motherboard is Intended for Cryptocurrency Mining.
Specifications
Core Specifications
Edition
Form Factor ATX
CPU Socket 1151
Chipset Intel H110
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors DVI-D
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, SATA
  • 12 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Not Supported
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector, Max. 1A (12W)
  • 2 x 4-pin Molex for PCIe (Power)
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 4 x SATA III - 6Gb/s
  • 1 x SATA Power Connector
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

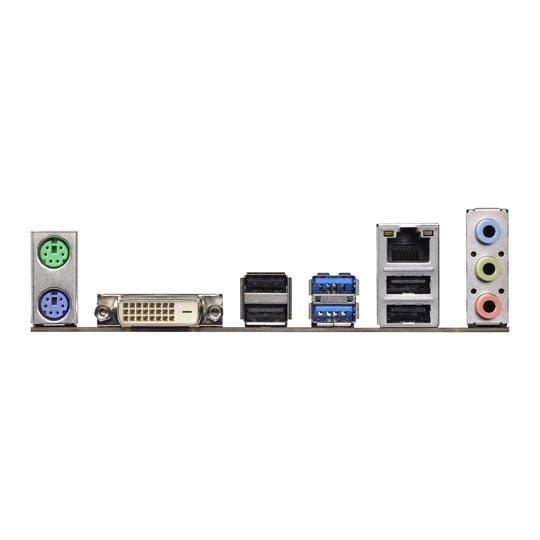

Rear I/O Connectors
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
