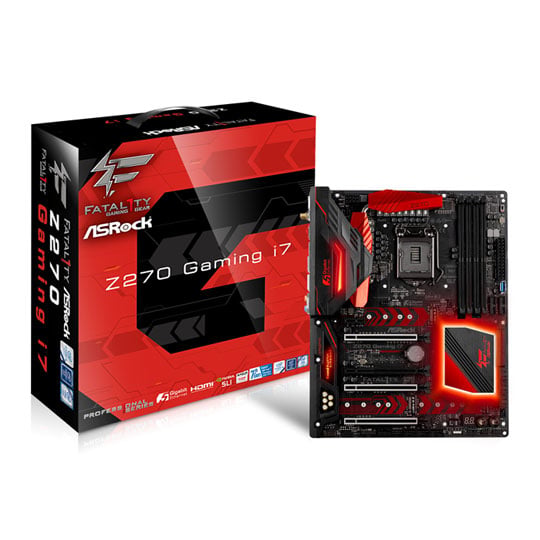

ASRock Intel Z270 Professional Fatal1ty Gaming i7 ATX Motherboard

ASRock Fatal1ty Z270 Gaming i7, Intel Z270, S 1151, DDR4, SATAe, M.2, 2-Way SLi/3-Way CrossFire, 5GbE, WiFi, USB3.1, ATX

ASRock
Scan code: LN79065 Manufacturer code: 90-MXB430-A0UAYZ Request call
£269.48
In stock
Pay on Scan Finance with a 10% deposit from just £6.73 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 26th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Armour Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

AURA RGB LED
Build your own colourful lighting system! AURA RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock AURA RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

Triple Ultra M.2
Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

AQUANTIA® 5Gb/s BASE-T Ethernet
The new 5Gb/s network standard was specially designed to satisfy the users who are seeking for immediate performance improvements but can’t afford more expensive 10Gb/s networking products. Based on AQUANTIA’s AQtion client controller, this motherboard offers blazingly fast 5-gigabit/sec transfer speeds over 100m of Cat5e/Cat6 cables, which is 5X faster than standard gigabit LAN.

PCI-E Steel Slot
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.

SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.

Hyper BCLK Engine II
An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

Dual USB 3.1 (Type-A + Type-C)
This motherboard has a pair of on-board Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices and to deliver up to 10 Gbps data transfer rates.

F-Stream: Modify Your Weapon

Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.

F-Stream
F-Stream is Fatal1ty's multi-purpose software suite with a new interface, more new features and improved utilities.

Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Creative Sound Blaster™ Cinema 3
Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

• 120dB SNR DAC.
• AURA RGB LED.
• Gold Audio connector.
• TI® NE5532 Premium Headset Amplifier.
• Individual PCB Layers for R/L Audio Channel.
• Impedance Sensing on Front Out port.
• PCB Isolate Shielding.
• Pure Power-In.
• Nichicon Fine Gold Series Audio Caps.
• Gold Audio Jacks.

Super Alloy Motherboard

XXL Aluminium Alloy Heatsink
Extra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Nichicon 12K Black Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

I/O Armour
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Gaming Armour: Built to Kill
Allows ASRock to be your most trustworthy ally, providing both hardware and software support.

• CPU Power: Hi-Density Power Connector.
• Memory: 15µ Gold Contact in DIMM Slots.
• VGA Card: 15µ Gold Contact in PCI-E Steel Slots.
• Audio: Creative Sound Blaster™ Cinema 3.
• Cooling: XXL Aluminium Alloy Heatsink, Heat Pipe Design.
• Internet: AQUANTIA® 5G LAN, Intel® LAN.

User friendly UEFI & EZ Mode
ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Gold Audio Jack / Connector
Everything will wear off in time, but gold looks better! Gold audio jack and connector provides stable sound transmission!

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Features • ASRock Super Alloy.
• Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151).
• Supports DDR4 3733+(OC).
• 4 PCIe 3.0 x16, 1 PCIe 3.0 x1.
• NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™.
• Graphics Output Options: HDMI, DisplayPort.
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative SoundBlaster Cinema3.
• 10 SATA3, 2 SATA Express, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3).
• 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 9 USB 3.0 (4 Front, 3 Rear, 1 Fatal1ty Mouse Port).
• AQUANTIA 5Gigabit LAN, Dual Intel® Gigabit LAN.
• Intel® 802.11ac WiFi.
• ASRock AURA RGB LED.
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI
Internal Connectivity
Expansion Slots
  • 3 x M.2, 2230/2242/2260/2280, PCIe/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATAe / SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 15
  • Intel® Smart Response Technology
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Aura RGB Strip Headers
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x Power Switch with LED
  • 1 x Reset Switch with LED
  • 2 x SATA Express (Compatible with 2x SATA III)
  • 6 x SATA III - 6Gb/s
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM Header
  • 3 x USB 2.0 Header
  • 2 x USB 3.0 Header
  • 1 x USB 3.0 Type-A - Vertical
  • 1 x XMP Switch
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
  • Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules
  • 1 x AQUANTIA AQC108 (5GbE LAN)
  • 1 x Intel 802.11ac WiFi/ BT4.0 Module (433Mbps)
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x 100/1000/2500/5000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS switch
  • 1 x DisplayPort 1.2
  • 1 x Fatal1ty Mouse Port (USB 3.0)
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 3 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
