ASRock AMD Ryzen B550M Phantom Gaming 4 AM4 PCIe 4.0 mATX Motherboard
ASRock B550M Phantom Gaming 4, AMD B550, AM4, DDR4, PCIe 4.0, Dual M.2, GbE, USB 3.2 Gen 1, Micro-ATX
By DPD On 3rd Aug
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
PCIe 4.0 for Everyone
The AMD B550 chipset makes PCIe 4.0 possible for anyone who wants higher performance, bandwith and speed. Ready for 3rd Gen AMD Rayzen processors and beyond.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
AMD Smart Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
A Solid M.2-Solution Performer
Dual M.2 For SSD, Supports Type 2280 M.2
Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfil the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket can run PCIe Gen3 x2 and SATA3 mode.
2oz Copper PCB
2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
Rule Your Own Lighting Way - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4K @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimise your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
• Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors.
• 8 Power Phase design.
• Supports DDR4 4733+ (OC).
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1.
• Supports AMD CrossFireX™.
• Graphics Output Options: HDMI, DisplayPort.
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec).
• 4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3).
• 8 x USB 3.2 Gen1 (4 Front, 4 Rear).
• 6 x USB 2.0 (4 Front, 2 Rear).
• Realtek Gigabit LAN.
|Edition||B550M Phantom Gaming 4|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC897 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|On-Board Graphics Connectors||
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Realtek RTL8111H (Gigabit LAN)|

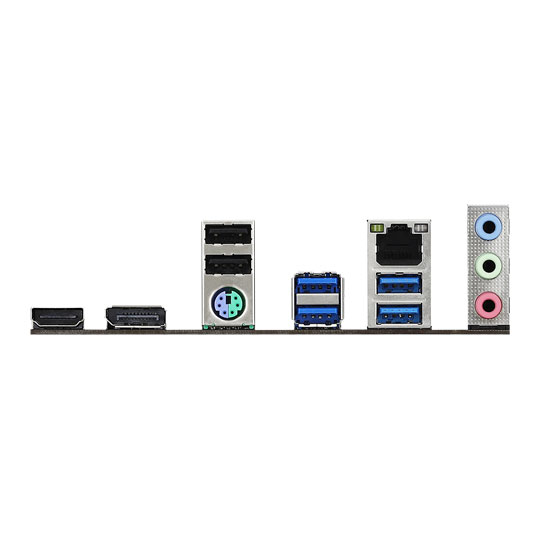

|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
