Scan code: LN108370 Manufacturer code: 90-MXBDJ0-A0UAYZ

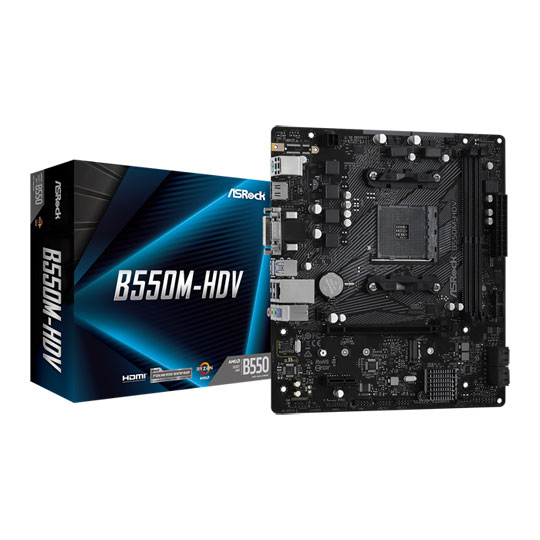

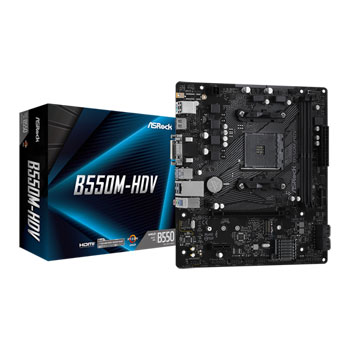

ASRock B550M-HDV Micro-ATX Motherboard

ASRock B550M-HDV Motherboard, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, M.2 PCIe Gen4, GbE, Micro-ATX

Thumbnail 1 : ASRock B550M-HDV Micro-ATX Motherboard Thumbnail 2 : ASRock B550M-HDV Micro-ATX Motherboard Thumbnail 3 : ASRock B550M-HDV Micro-ATX Motherboard Thumbnail 4 : ASRock B550M-HDV Micro-ATX Motherboard
Scan code: LN108370 Manufacturer code: 90-MXBDJ0-A0UAYZ
There are 6 people viewing this product
£81.98Item due on 17 July 2020
Due 17th Jul
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

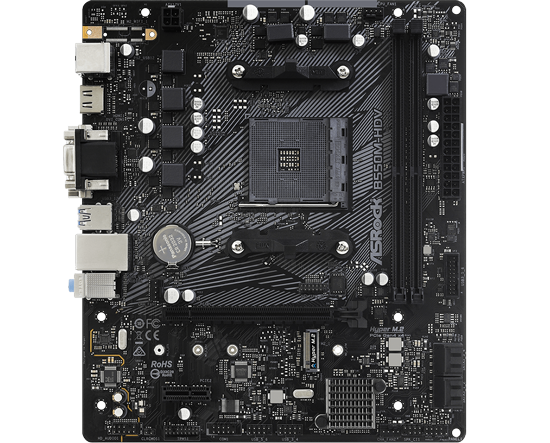

B550M-HDV 3rd Gen AMD Ryzen Micro ATX Motherboard

ASRock B550M-HDV AMD Ryzen Micro ATX Motherboard

Quality Components and Super Alloy Features The AMD B550 chipset makes PCIe® 4.0 possible for anybody who wants an unbeatable performance. The B550M-HDV supports 3rd Generation AMD Ryzen™ processors and beyond, being a Micro ATX motherboard, it offers resilience and features a strong range of components to ensure a reliable performance. Featuring the quick Gigabit LAN and a variety of USB connectivity, and Hyper M.2 which provides users with a lightning fast data transferring experience. This motherboard also supports HDMI 4K 60Hz graphics output, for super smooth viewing.


Please note: B550 Motherboards are ready for 3rd Gen AMD AM4 Ryzen™ Processors and Future AMD Ryzen™ Processors.
Not Compatible with AMD Ryzen™ 5 3400G & AMD Ryzen™ 3 3200G.

AMD B550Chipset

AM4CPU Socket

3rd Gen AMD Ryzen™and Future Compatible CPUs

Micro ATXForm Factor

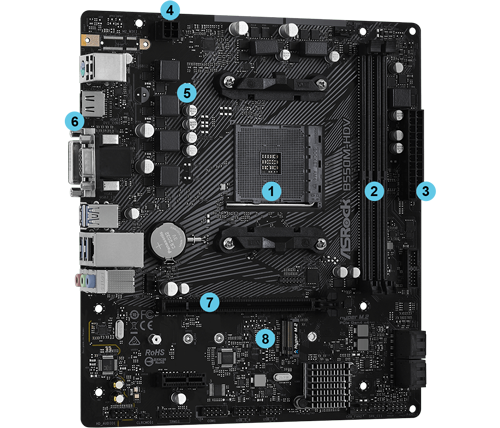

Component Features of the B550M-HDV

Design of ASRock B550M AMD Ryzen Motherboard

1. Supports 3rd Gen / future AM4 AMD Ryzen™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Connector   |   4. 4Pin 12V Power Connector   |   5. Premium 50A Power Choke / 6 Power Phase Design
6. Wired Gigabit LAN / D-Sub (VGA) / DVI-D / HDMI / RJ-45 with LED / 2x USB 2.0 / 4x USB 3.2 Gen1 Type-A
7. 1 PCIe 4.0 x16, 1 PCIe 3.0 x1   |   8. Hyper M.2 Slot supports PCIe Gen4 x4

ASRock Super Motherboard Alloy

power choke

Premium 50A Power ChokeASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

matte black PCB

MATTE BLACK PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

fabric PCB

HIGH DENSITY GLASS FABRIC PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software for your ASRock Motherboard

ASRock Software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

AMD Ryzen Processors
Specifications
Core Specifications
Edition B550M-HDV
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600+(OC)
  • DDR4 - 4666
  • DDR4 - 4733+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x Serial (COM) Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 230 x 201 mm
Note
Additional Information
Scan Code LN108370
Model Number 90-MXBDJ0-A0UAYZ
GTIN 4710483931635
