ASRock B550 Pro4 ATX Motherboard

ASRock B550 Pro4 Motherboard, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, GbE, ATX

Thumbnail 1 : ASRock B550 Pro4 ATX Motherboard Thumbnail 2 : ASRock B550 Pro4 ATX Motherboard Thumbnail 3 : ASRock B550 Pro4 ATX Motherboard Thumbnail 4 : ASRock B550 Pro4 ATX Motherboard
Scan code: LN108366 Manufacturer code: 90-MXBCZ0-A0UAYZ
£134.48
Order now and get it tomorrow, Thu 1st Oct
From £11.21 / month (APR 0%)
Monthly Payment: £11.21
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £134.48
Total inc. interest: £134.48
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 1st Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B550 Pro4 3rd Gen AMD Ryzen ATX Motherboard

ASRock B550 Pro4 3rd Gen AMD Ryzen ATX Motherboard

Everything you Need for Computing This AMD B550 Pro4 motherboard from ASRock is prepared for 3rd Gen AMD Ryzen™ processors and future generation processors. The AMD B550 chipset makes PCI-e 4.0 available for those who desire high performance, bandwidth and velocity. Enjoy stunning lighting and with Polychrome RGB Sync-certified devices you can synchronize across your compatible accessories. With ASRock Super Alloy features you get to appreciate the XXL Aluminium Heatsink, premium components and 2oz Copper PCB delivering lower temperature and higher energy efficiency for overclocking. Featuring a wealth of USB connectivity, HDMI and D-SUB ports. Plus the Dual M.2 with M.2 armor means this solution is compatible to perform for SSD – gamers can take pleasure from the hasty speed that this motherboard delivers.


Please note: B550 Motherboards are ready for 3rd Gen AMD AM4 Ryzen™ Processors and Future AMD Ryzen™ Processors.
Not Compatible with AMD Ryzen™ 5 3400G & AMD Ryzen™ 3 3200G.

AMD B550Chipset

AM4CPU Socket

3rd Gen AMD Ryzen™and Future Compatible CPUs

ATXForm Factor

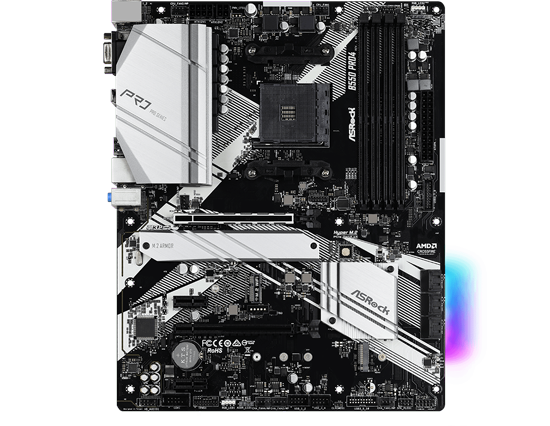

Component Breakdown of the B550 Pro4

Design of ASRock B550 AMD Ryzen Motherboard

1. Supports 3rd Gen / future AM4 AMD Ryzen™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. Premium 50A Power Choke / 8 Power Phase Design / Digi Power VRM
5. 8+4Pin 12V Hi-Density Power Connectors   |   6. XXL Aluminium Alloy Heatsink
7. PCIe Steel Slot, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
8. M.2 Armor Solution / Hyper M.2 Socket, supports PCIe Gen4x4
9. M.2 (Key E) Slot for WiFi *Module not included  |   10.M.2 Socket running PCIe Gen3 x2 / SATA3 mode

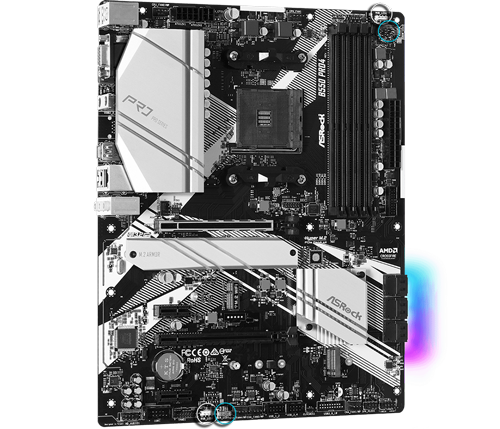

Rule your own Lighting Way with Polychrome RGB

Polychrome RGB Sync

Synchronize across the RGB Sync-certified accessories ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

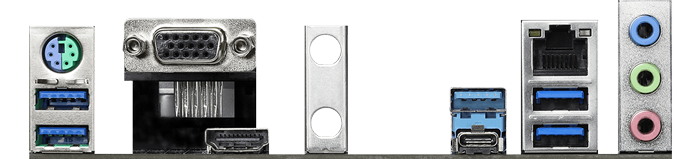

Built with a Wealth of Connectivity

Connectivity

ONBOARD DUAL 3.2 GEN2 TYPE A + C This motherboard includes an array of USB connections with 6 USB 3.2 Gen1 (2 Front, 4 Rear), Gigabit LAN, and also has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and delivers up to 10 Gbps data transfer rates. With the two most popular connectors, B550 Pro4 includes a HDMI and D-SUB combo so now you have even more graphics output solution.

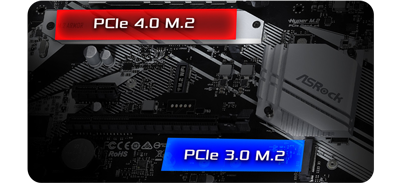

M.2 Armor Provides Protection for SSD Longevity

Armor M.2 Slots

A Solid M.2 Solution Performer Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

Reinforced Steel Slot

PCI-e 4.0

Strong Protection The strengthened steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensures signal stability, and makes sure heavy graphics cards to be well-installed.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Support Software for your ASRock Motherboard

ASRock Software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition B500 Pro4
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4533+(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666(OC)
  • DDR4 - 4733+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA3
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x M.2, 22-60/80/110, PCIe/SATA
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x D-Sub (VGA)
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108366
Model Number 90-MXBCZ0-A0UAYZ
GTIN 4710483931482
