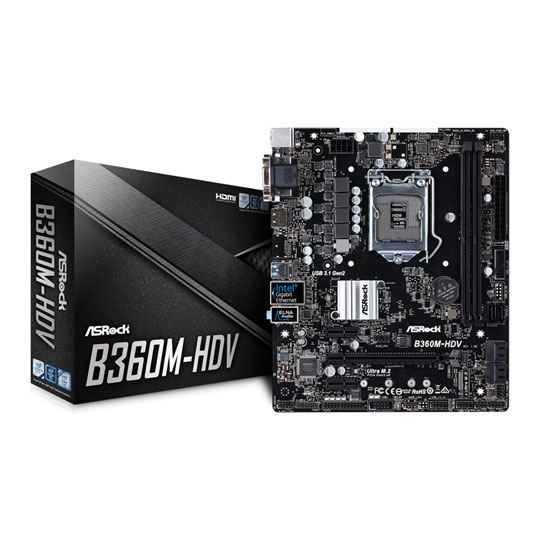

ASRock Intel B360M-HDV Coffee Lake Micro ATX Motherboard

ASRock B360M-HDV, Intel B360, S 1151, DDR4, SATA3, M.2, Intel GbE, USB 3.1 Gen2 A, MicroATX

Thumbnail 1 : ASRock Intel B360M-HDV Coffee Lake Micro ATX Motherboard Thumbnail 2 : ASRock Intel B360M-HDV Coffee Lake Micro ATX Motherboard Thumbnail 3 : ASRock Intel B360M-HDV Coffee Lake Micro ATX Motherboard Thumbnail 4 : ASRock Intel B360M-HDV Coffee Lake Micro ATX Motherboard
Scan code: LN88952 Manufacturer code: 90-MXB730-A0UAYZ
£59.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview ASRock B360M-HDV Motherboard
Go micro in size but not in features for your brand new Intel 8th Gen. Coffee Lake CPU with the ASRock B360M-HDV MicroATX Motherboard. Utilising Intel’s latest chipset; B360, this ASRock mATX Motherboard is a slightly more compact than regular ATX boards, yet retains many of their great features to deliver fantastic performance & configurability in the latest desktop PCs, whilst bringing out the very best from your chosen Coffee Lake Processor in a smaller footprint. The built-in Ultra M.2 Slot supports blazingly fast PCIe NVMe SSDs for the ultimate in storage performance or SATA-based M.2 SSDs for more budget conscious system builders. Sporting a mix of 3 different graphics outputs - whether you are using one of the latest displays with HDMI or DVI, or an older monitor using analog VGA, you’ll be able to take advantage of Intel’s improved UHD Graphics on the new 8th Gen Coffee Lake CPUs. In addition, the Four USB 3.1 Gen2 Type-A ports on the backpanel, ensure the ASRock B360M-HDV is ready for connection to a great deal of 10Gbps USB devices arriving in the near future, while remaining fully backwards compatible with USB 2.0 & USB 3.0.

Ultra M.2 (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Intel® LAN
Better performance, lowered CPU utilization and enhanced stability.

ELNA Audio Caps
The 3uA leakage current of ELNA audio caps is the key to reduce noise levels and satisfy even the pickiest audiophiles.

Three Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. In addition, the HDMI port supports up to 4K resolution.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that rede-fines a new standard of high performance and responsiveness.

4x USB 3.1 Gen2 Ports
Packed with luxurious 4 USB 3.1 Gen2 ports to give ultimate expansion capability for high-speed devices. Features • Supports 8th Generation Intel® Core Processors (Socket 1151).
• Supports DDR4 2666.
• 1 PCIe 3.0 x16, 2 PCIe 3.0 x1.
• AMD Quad CrossFireX™.
• Graphics Output Options: HDMI, DVI-D, D-Sub.
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps.
• 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
• 4 USB 3.1 Gen2 10Gb/s (Rear).
• 2 USB 3.1 Gen1 (Front).
• Intel® Gigabit LAN.
Specifications
Core Specifications
Edition B360M-HDV
Form Factor MicroATX
CPU Socket 1151
Chipset Intel B360
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280, PCIe 3.0/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Not Supported
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector, Max. 1A (12W)
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 226 x 188 mm
