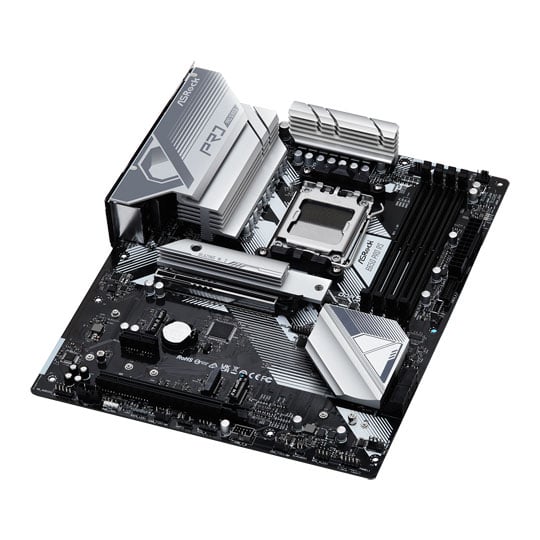

ASRock AMD B650 PRO RS ATX DDR5 Motherboard
ASRock AMD B650 PRO RS, AMD B650, S AM5, DDR5, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX
B650 Pro RS 7000 Series ATX Motherboard from ASRock
Get the latest hardware for the latest CPU Modern and futuristic, with attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. It is built for AMD Ryzen™ 7000 Series Processors and supports DDR5 6200+(OC) memory. Enjoy your custom light show with ASRock Polychrome Sync, a great application to sync your RGB hardware. The B650 Pro RS offers PCIe 4.0 support and a Blazing M.2 Gen5 slot with heatsink for improved heat dissipation and ultra fast performance. Get super fast and reliable connections with Dragon 2.5G Ethernet.
AMD B650Chipset
AM5CPU Socket
Ryzen™ 7000 Series ProcessorsCompatible CPU
ATXForm Factor

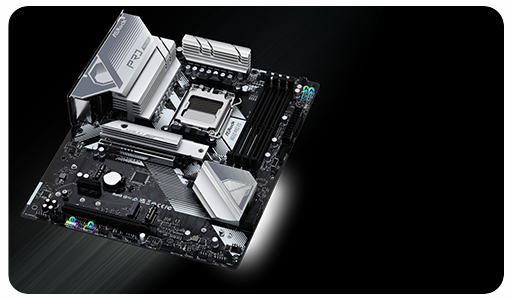

Synchronise your Devices with Polychrome RGB
Get incredible control over your lighting and effectsThis motherboard features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across Polychrome RGB Sync to provide a unique light show that spreads throughout the system.

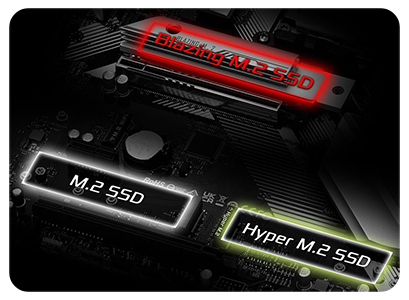

High Speed M.2 Solution
PCIe Gen5 Blazing M.2The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generations. With a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Enhanced Performance & Unmatched Overclocking Capabilities
Sturdy 14+2+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
DDR5 EXPO & XMP SupportAll B650 motherboards are built with an 8-Layer PCB design. Enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/Intel® XMP capable for a simple and affordable overclocking experience.

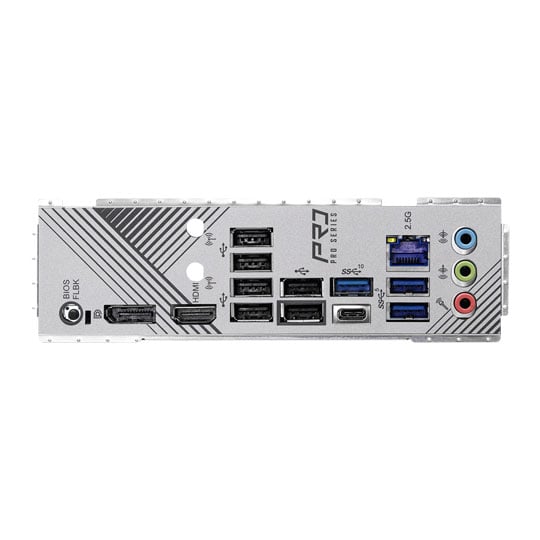

Flexible Integrated I/O Shield
Adjustable Fit for easy installationASRock go above and beyond expectations when it comes to the I/O shield. Aside its stylish aesthetic, the shield reserves more tolerance space for greater adjustability during installation, thus fitting the chassis perfectly without any mechanical issues.
Support for Next Generation USB 3.2 Devices
Front USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Premium High Definition Sound
Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
B650 Pro RS Motherboard Features
Dr.Mos
Smart Power StageMonitors the current and temperature of each phase, delivering premium power to the CPU with enhanced performance and OC capability.
BIOS
FlashbackConvenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply.
Blazing
OC TunerAllows AM5 CPU overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to set up.

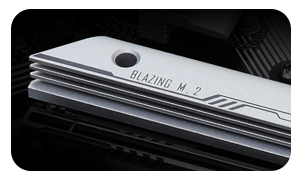

XXL M.2
HeatsinkThe extra large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible. It is able to give better stability while maintaining top performance.
DDR5
Protection Circuit ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowering the risk of damaging your memory module during removal or installation.
