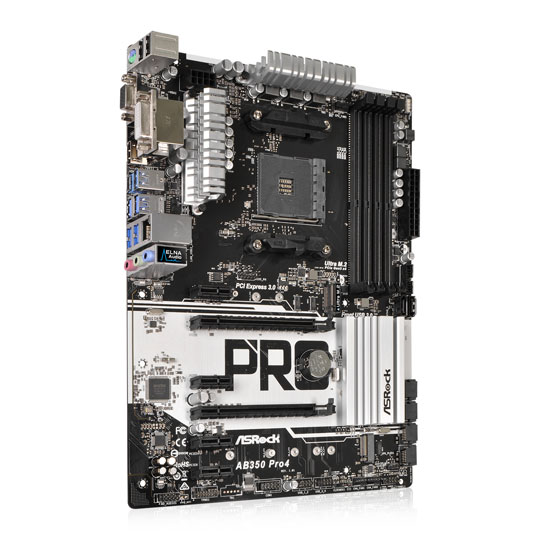

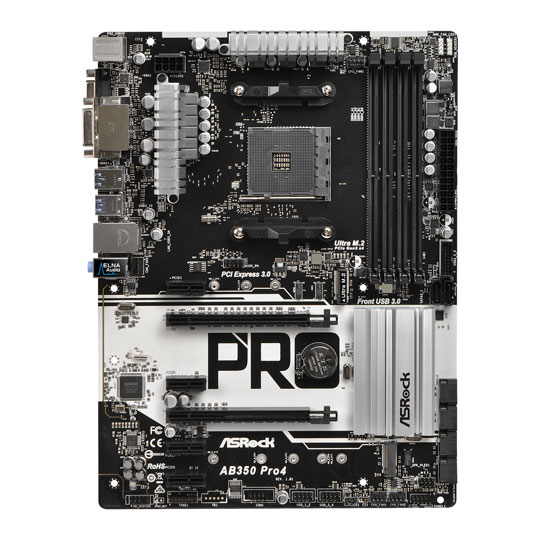

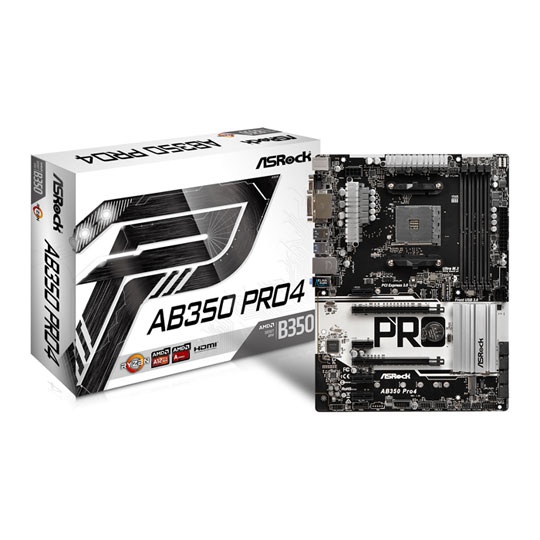

ASRock AMD AM4 Ryzen AB350 Pro4 ATX Motherboard

ASRock AB350 Pro4, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), Realtek LAN, USB 3.0 A+C, ATX

ASRock
Scan code: LN79071 Manufacturer code: 90-MXB510-A0UAYZ Request call
£86.48Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports SATA3 6Gb/s M.2 modules.

Triple Monitor
Choose up to three display interfaces to connect monitors and use them simultaneously.
* AMD A-series APUs Only.

Digi Power
For smooth and efficient CPU Vcore voltage.

ELNA Audio Caps
The 3uA leakage current of ELNA audio caps is the key to reduce noise levels and satisfy even the pickiest audiophiles.

USB Type-C
A latest reversible USB Type-C design that fits the connector either way.

Super Alloy
• Premium Power Choke.
• Sapphire Black PCB.
• High Density Glass Fabric PCB.
• 2oz Copper PCB. Features • ASRock Super Alloy.
• Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen CPUs (Summit Ridge).
• Supports DDR4 2666.
• 2 PCIe 3.0 x16, 4 PCIe 2.0 x1.
• Graphics Output: HDMI, DVI-D, D-Sub.
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3).
• 8 USB 3.0 (1 Type-C, 2 Front, 5 Rear).
• Realtek Gigabit LAN.

Please Note:
This motherboards graphics outputs are intended for use with future AMD processors with on-board graphics. Ryzen 7 CPUs do not feature on-board graphics, so when using these CPUs, the motherboards graphics ports will be disabled, and as such a discrete graphics card will be required for operation.
Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD B350
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support Not Supported
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280/22110, SATA
  • 1 x M.2, 2242/2260/2280, PCIe
  • 4 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~3 ONLY)
  • RAID 1 (SATA 0~3 ONLY)
  • RAID 10 (SATA 0~3 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x AMD Fan LED Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111GR (Gigabit LAN)

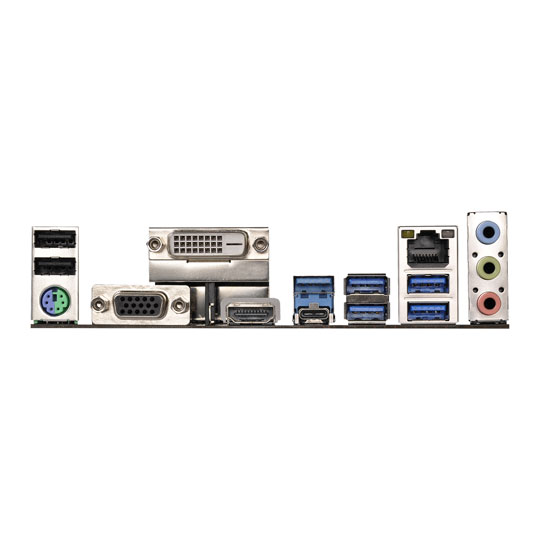

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 5 x USB 3.0
  • 1 x USB 3.0 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
ASRock AB350 Pro4, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), Realtek LAN, USB 3.0 A+C, ATX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from 4 months I've been using this motherboard for about 4 months, after the initial problem of trying to install Windows 7 on it (which is very fiddly so I chose to buy windows 10.) This board has been extremely good. Its been about 15 years since I had an Asrock board and I used to be a massive fan, good performance and super resilient. My son once spilled cordial on one while switched on, I washed it under the tap and dried immediately, it continued working for years. Using an MSI board last time, which was a big disappointment due to it promising SATA3 on the box and spec sheet, it wasn't made clear that you had to set up a raid to achieve it. After this I fell out with MSI. The boot time and flexibility of this board (beside the windows 7 thing) are top notch, Do not be worried about the low price
