ART Tube MP with Compressor
ART - Tube MP with Compressor, Hand-selected 12AX7a tube, 1/4" unbalanced inputs and outputs
Email me when the availability or price changes
Finance this product
- From £15.31 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
PreAmplifier/Compressor

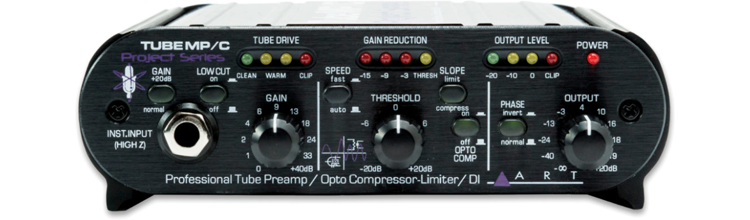

ART - Tube MP/C
multi-purpose tool for audio engineering and recordingARTS's Tube MP/C (PreAmplifier/Compressor) is a multi-purpose tool for audio engineering and recording. Two independent circuits featuring a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control are housed in one, convenient desk-top chassis.
Used as a mic/line preamp or as a DI (direct) box, the Tube MP/C is designed to work seamlessly with any recording, sound-reinforcement, or electronic instrument setup. A R T’s Tube MP/C circuitry is a hybrid design utilizing the latest, most advanced, solid-state and tube technology.
The preamplifier’s active balanced solid-state input provides extremely low noise and excellent common mode rejection. The ¼-inch high impedance input prevents loading of any connected device making the Tube MP/C perfect for DI or line level applications. The preamplifier’s second stage 12AX7a tube runs on a regulated DC voltage providing an additional 20dB of gain.
The compression circuit features a VCA-less design and utilizes optical electronics (Vactrol) coupled with a 12AX7a vacuum tube gain stage for superior musical performance.
Optional ART SM1 stand mount securely attaches the Tube MP/C to any microphone stand for live stage or studio applications is available.
at a glance
• Tube-based mic/line preamplifier with up to 80 dB of gain
• Optical (VCA-less) compressor circuitry = transparent dynamics control
• XLR balanced inputs and outputs
• Selectable output range for Line/Instrument interface levels
• +48V phantom power
• Selectable release time settings
• Custom extruded aluminum chassis
The Tech Spec
| Features | Specification | Frequency Response | 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output |
|---|---|
| Total Harmonic Distortion | <0.1% @ max gain |
| CMMR | > 60 dB @ max gain |
| Equivalent Input Noise | -128dBu typical (“A” wtd., Shorted XLR balanced input, gain @ max) |
| Input Impedance | 1M Ω 1/4″ input, 5K Ω XLR input |

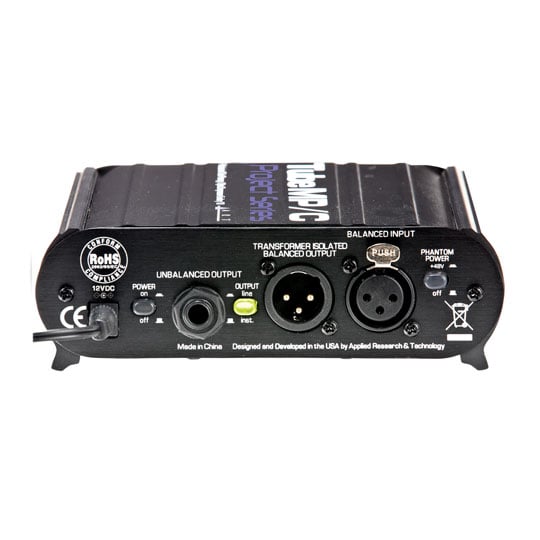

| Input/Output Connections | Input: XLR balanced or 1/4″ balanced. Output: 1/4″ unbalanced XLR balanced, transformer isolated. |
| Maximum Gain | +80 dB (balanced in-out, +64dB (unbalanced input, balanced output) |
| Maximum Input Level | unbalanced (Inst): +15 dBu, balancd (mic): +10 dBu |
| Maximum Output Level | +19 dBu (Line mode) |
| Output Impedance | XLR: <600 Ω, 1/4″: <300 Ω |
| Low Cut Filter | -3 dB @ 70 Hz, 6dB/Octave |
| Phantom Power | Switch selectable, +48Volts DC, filtered, current limited |
| Chassis Type | All aluminum black anodized with integral rubber sides |
| Power Requirements | 9VAC @ 1000mA (external) |
| Attack Time | <1 ms (limit), 20 ms (comp.) |
| Release Time | 150ms (fast), 20ms – 3s Program dependant (Auto) |
| Tube Type | Hand selected 12AX7a |
| Compressor Slope | 2:1 (Comp.) / 11:1 (Limit) |
| Dimensions | 1.75″H x 5.9″ W x 6.5″ D (44.5mm x 150mm x 165mm) |
| Weight | 2.9 lbs (1.32 kg) |
