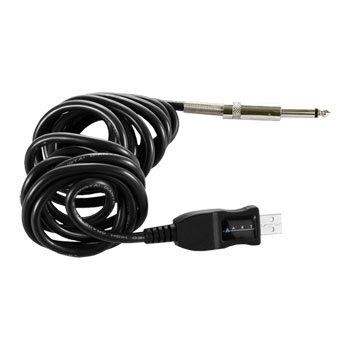

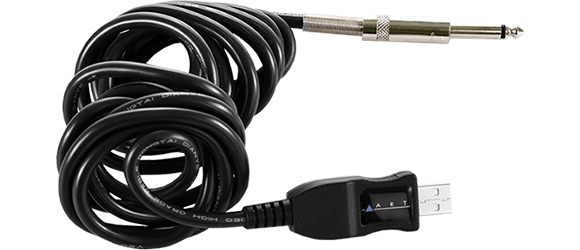

ART TConnect USB to Guitar Interface Cable

ART - TConnect USB to Guitar Interface Cable, High Quality 16-bit, 44.1 kHz or 48 kHz Digital Audio Interface
MORE INFO

MORE INFO

Scan code: LN139625 Manufacturer code: ART-TCONNECT

£25.00

£5.48 NEXT DAY DELIVERY

Item currently awaiting an ETA

Pre Order

Pre order

By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores

Spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

SCANPROTECT Protect against installation damage for 28 days. More info

USB to Guitar Interface Cable
ART - TConnect

easily connect your guitar to a PC or MacThe ART T-Connect offers studio grade 16-bit, 48kHz digital audio and connects directly to your computer's USB Port and works without using any drivers. Just plug your guitar to your computer and play. The TConnect may be used with any recording software that supports USB audio devices.

at a glance • USB recording for any electric musical instrument
• High quality 16-bit, 44.1 kHz or 48 kHz digital audio interface
• LED indicator flashes during signal transmission
• Plug and play with Windows and Mac OS
• Shielded cable with 1/4" TS plug

The Tech Spec

Features	Specification
Connectors	1/4" TS plug (unbalanced), USB Type A
Input Impedance	1 MΩ
Signal-to-Noise Ratio	80 dB
Dynamic Range	83 dB
Frequency Response	20 Hz - 19 kHz (at 48 kHz)
Maximum Input Level	Approx. +2 dBu
Maximum Gain	Approx. +23 dB
Length	10 ft (3m)
Weight	0.5 lbs (0.22 kg)

Specifications
Computer Interface Type
Connections (Input)	1 x 6.35mm (1/4") TRS Jack
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power	No
Sample Rate (Max)
Bit Resolution
iPad Compatible	No
Connections (Output)
Dimensions (mm)
DSP Processing	No
Misc. Notes

Additional Information
Scan Code	LN139625
Model Number	ART-TCONNECT
GTIN	000
