Scan code: LN120422 Manufacturer code: ART-PDB

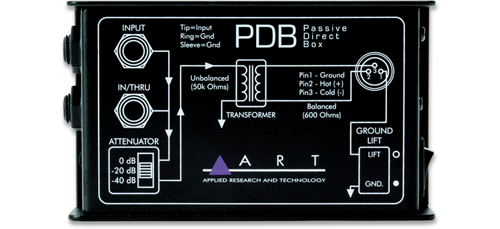

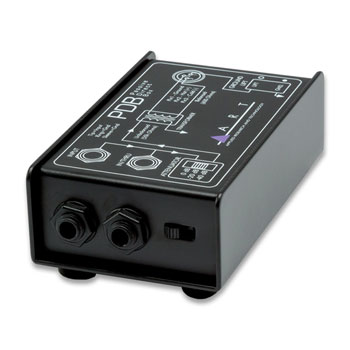

ART - PDB, Passive D.I Box

ART - PDB, Passive D.I Box, Versatile passive DI box, Switchable Attenutation

Thumbnail 1 : ART - PDB, Passive D.I Box Thumbnail 2 : ART - PDB, Passive D.I Box
Scan code: LN120422 Manufacturer code: ART-PDB
Was: £45.00
£38.54
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Passive Direct Box
ART - PDB

ART - dADB Dual Active Direct Box

road-ready DI box The PDB Passive Direct Box from ART is a tough, reliable and road-worthy DI for the connection of the outputs of all manner of electronic musical instruments, to the balanced inputs of mixer consoles and other balanced inputs.

ART’s PDB also offers the ability to connect a music source to an instruments amplifier, all whilst simultaneously patching it to the mixer of your choice.

at a glance • Versatile passive DI box
• Convert high impedance signal to low impedance
• Balances and matches line level signals
• Tough metal case

Potential Applications

Electric guitar and bass pick up output signalsThe high impedance signal from a guitar or bass guitar pickup is translated by the PDB™ into a low impedance balanced signal required by mixing consoles.

DJ console output signalsDJ mixers often supply only an unbalanced -10dB signal. The PDB™ converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.

Keyboards and line level signalsThe PDB™ automatically balances and matches the line level outputs of modern electronic keyboards. If you are using a multiple keyboard setup and your keyboards are all plugged into a single instrument amplifier, the PDB™ can be used to replace individual direct boxes. Simply send the output of the instrument amplifier to the PDB™ and then to the console (instead of a separate DI box for each keyboard).

Speaker level signalsThe PDB’s ability to accept speaker level inputs from a power amplifier’s output allows post-amplifier, post eq and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.

The Tech Spec

Features Specification
Frequency Response 10 Hz – 100 kHz +/- 0.5 dB @ +0 dBu
Output Connections 600 Ω XLR Output Jack
Ground Lift Switchable
Input Attenuation Switchable (0dB, -20dB, -40dB)
Instrument Input 50k Ω
Parallel Link Jack 50k Ω
Dimensions 3″ x 5″ x 2″
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN120422
Model Number ART-PDB
GTIN 840402011392
