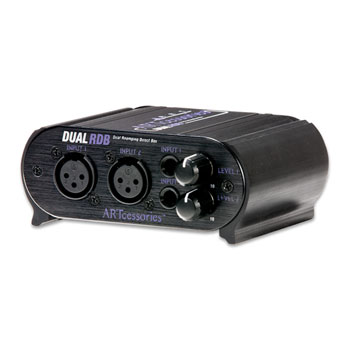

ART - Dual RDB Stereo/Dual direct box
ART - Dual RDB, Stereo/Dual direct box, Re-amping interface for multiple amps

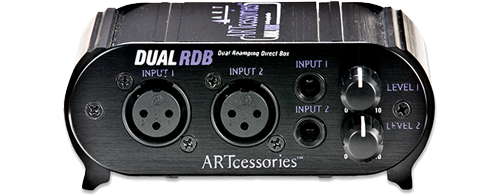

Dual Re-Amping Direct Box
ART - Dual RDB
Re-amping interface for multiple ampsART’s Dual RDB is the perfect interface solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or ¼-inch instrument level inputs.

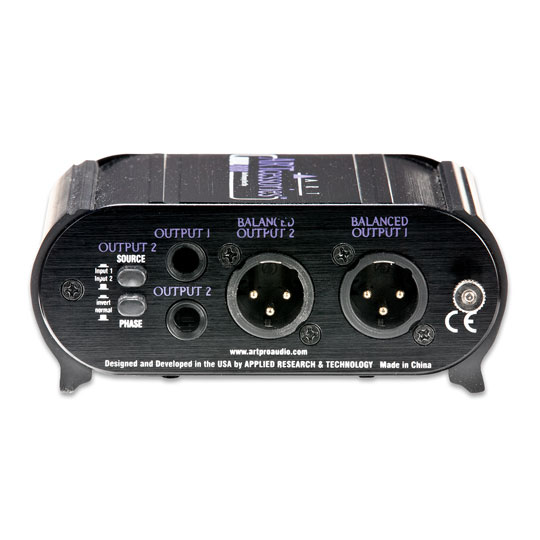

The Dual RDB has two high quality isolation transformers that prevent ground loops when connecting various systems together. The Dual RDB accepts 1/4″ TRS and XLR line level inputs and outputs mic or instrument levels. The Dual RDB’s variable level controls allow volume control to be set at the source rather than in the studio, AV room, audio closet or installation rack. A 20Hz to 20kHz frequency response ensures the Dual RDB will function transparently with any high-quality audio source.
at a glance
• Stereo/Dual direct box
• Re-amping interface for multiple amps
• Stereo Audio/Video interface to low level inputs
• Variable Input pad for mic or instrument inputs
The Tech Spec
| Features | Specification | Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB @ +4 dBu |
|---|---|
| Total Harmonic Distortion | .01% @ 1kHz, +18 dBu <.05% @ 100Hz, +18dBu |
| Channel Separation | > 80 dB (typical) |
| Input Connections | 1/4″ TRS balanced, XLR balanced female |
| Thru Connections | 1/4″ TRS balanced, XLR balanced female |
| Insertion Loss | -20dB @100k Ω load, -25dB @600 Ω load |
| Dimensions | 1.85″H x 4.6″W x 3.9″D (47mm x 117mm x 99mm) |
| Weight | 0.88 lbs (0.40 kg) |
