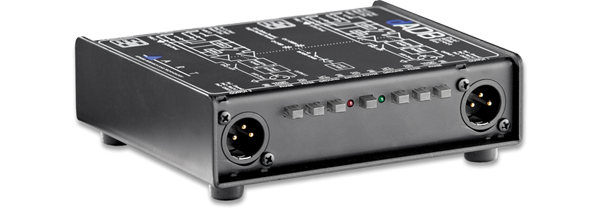

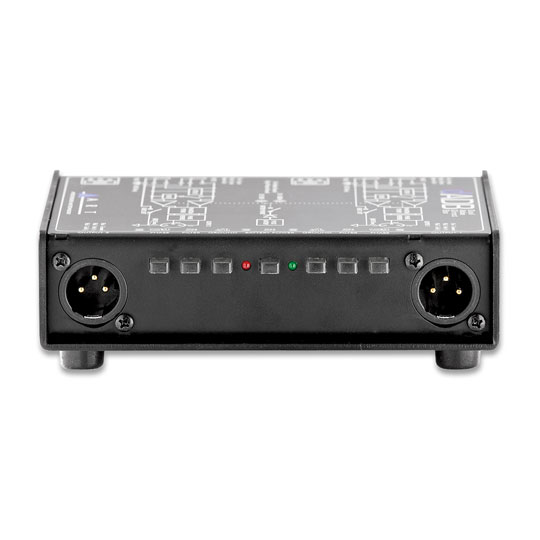

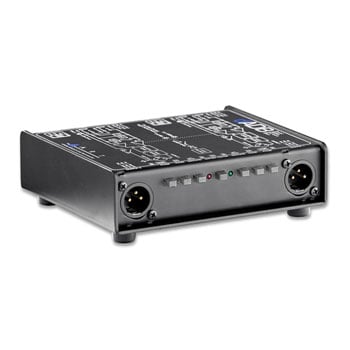

ART - dADB - Dual Active D.I Box

ART - dADB, Dual Active D.I Box, Fully Active Design, Switchable Input Attenuation

Thumbnail 1 : ART - dADB - Dual Active D.I Box Thumbnail 2 : ART - dADB - Dual Active D.I Box Thumbnail 3 : ART - dADB - Dual Active D.I Box Thumbnail 4 : ART - dADB - Dual Active D.I Box
Scan code: LN120419 Manufacturer code: ART-DADB
£81.00
FREE DELIVERY ON YOUR ENTIRE BASKET
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Oct to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

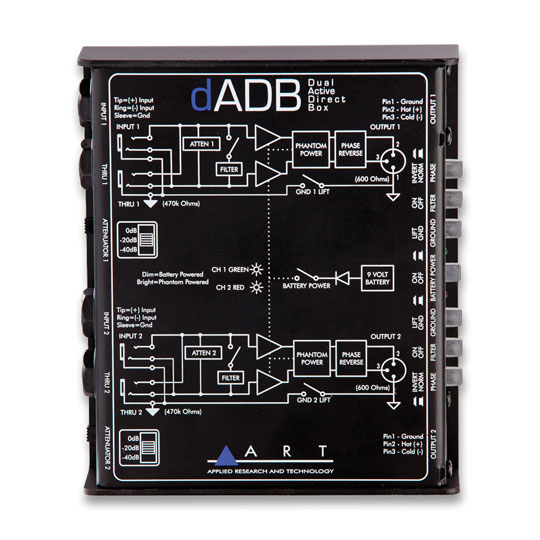

Dual Active Direct Box
ART - dADB

Antelope Audio - Zen Q Synergy Core

featuring Fully Active Design ART’s dADB dual active direct box acts in a unique fashion as two independent, high grade active interfaces for connecting your instrument, line, or speaker level signal to balanced inputs. The high impedance ¼” inputs are buffered and then converted via extremely low noise active electronics to offer island, balance and low impedance outputs.

The dADB delivers an incredibly flat and wide frequency response even at the highest of input levels, making it a virtually acoustically transparent DI solution. Input attenuation on each channel allows for a wide range of source signal levels. Independent parallel thru jacks allow for tapping the signal chains. A Ground Lift on each channel allows for totally separate the input and output signal grounds to isolate two systems when required, thus reducing hum and ground-loop noise.

Switchable low pass Bessel filters eliminate high frequency interference. Operating outside of the audio range these complex and effective filter circuits are primarily intended to eliminate radio frequency interference before it gets into the main system. They effectively reduce digital computer noise making the dADB the ideal DI solution for laptops, computer workstations and peripherals when used in stereo PA applications.

The dADB’s active circuitry is powered by phantom power or by an internal 9V battery when external power is not available. Low current draw (less than 7.5 mA) should provide more than 100 hours of operation with a new battery (alkaline recommended).

Lastly, the goregous compact black all steel case and active design ensure unmatched long-term reliability in Live Sound, Permanent/Fixed Install, D.J., or virtually any PA application.

at a glance • Fully Active Design
• Operates on Phantom Power or 9V Battery
• Converts High-Impedance Balanced / Unbalanced Inputs Into 600 ohm Balanced Outputs
• Independently Switchable Low Pass Filter on each Channel
• Independently Switchable Ground Lift on each Channel
• Switchable Input Attenuation (0, -20, -40 dB)
• XLR Connectors for Balanced Outputs

The Tech Spec

Features Specification
Frequency Response 10 Hz – 100 kHz +/- 0.5 dB @ +0 dBu
Total Harmonic Distortion <.05% (typical)
Dynamic Range > 100 dB (typical)
Channel Separation > 80 dB (typical)
Maximum Input Level +4, +24, +44 dBu (depending on attenuator setting)
Maximum Output Level +6 dBu (battery powered), +14 dBu (phantom powered)
Input Connections 1/4″ TRS balanced / unbalanced (2), 470k Ω
Thru Connections 1/4″ TRS (2)
Output Connections XLR male balanced (2), <600 Ω
Input Attenuation Switchable (0dB, -30dB)
Power Requirements 9V @ 7.5 mA (battery, alkaline recommended) / 18-48V DC @ 6.4 mA (phantom power , per channel)
Dimensions 2″ x 5″ x 5.75″ (51mm x 127mm x 146mm)
Weight 2.7 lbs (1.22 kg)
