Scan code: LN62569 Manufacturer code: ART-DTI

Art DTI Box

Art DTI Dual Transformer Isolator - The Best Solution For Ground Loop Noise Issues - 2 Channel

Scan code: LN62569 Manufacturer code: ART-DTI
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
£66.00
Get it Tomorrow, 22 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Dual Transformer/Isolator
ART - DTI Box

ART DTI Box

High Quality, High PerformanceThe ART DTI Dual Transformer/Isolater is a high quality and fully passive audio interface that employs two high performance transformers to totally separate input and output signal grounds and isolating two systems whilst reducing hum and ground-loop noise. The DTI’s audio transformers have an incredibly flat and wide frequency response, capable of handling high signal levels using an isolated balanced output. This gives the DTI a very clean and neutral sound with a wide range of maintaining signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 ohms to 100k ohms.

at a glance • Isolates Components in Sound Systems to Eliminate Ground Issues
• XLR, 1/4-inch and RCA Inputs and Outputs
• Rugged Anodized Aluminum Case
• High Quality Transformers
• Passive Design

Versatile Connectivity

ART DTI Box

Enhanced Feature SetWhat makes DTI stand out from other isolation boxes is its connection versatility. XLR, 1/4″ phone, and RCA type phono connections on all inputs and outputs are provided, allowing it to easily fit into virtually any audio system and be the clean patch point between all types of systems.

If you need an interface between a computer based audio workstation and your monitor system, isolation on long cable runs in a fixed installation, isolation of a signal source from your recording equipment, or most commonly, just a safer connection between two audio systems, the DTI can accommodate.

The compact black anodized all aluminum case and it’s passive design allows the DTI to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full feature set, rugged construction, and high-end specifications make the DTI the superior choice.

The Tech Spec

Features Specifications
Frequency Response 10Hz-50kHz +/-.5dB@+4dBu
Total Harmonic Distortion .01% Typical @ 1kHz, +18dBu, <.05% @ 100Hz, +24dBu
Insertion Loss .4dB@100k Ω load
5.5dB @ 600 Ω load

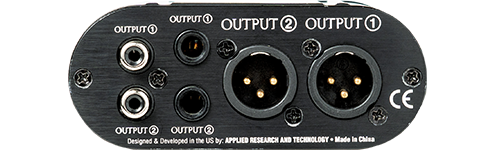

Input Connectors XLR-F Balanced,1/4-inch TRS Balanced / Unbalanced, and RCA Jacks
Output Connectors XLR-M Balanced, 1/4-inch TRS Balanced / Unbalanced and RCA Jacks
Power Requirements Passive
Dimensions 1.75″H x 4.2″W x 3.5″D (44.5mm x 107mm x 89mm)
Weight .75 lbs (0.34kg)
Specifications
Circuit
Channels
Transformer Isolator No
Battery Option No
Thru No
Additional Information
Scan Code LN62569
Model Number ART-DTI
GTIN 840402016380
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
