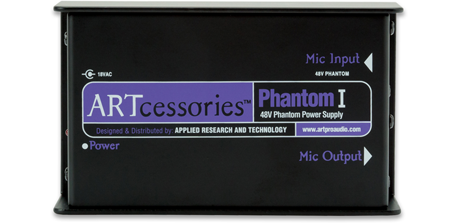

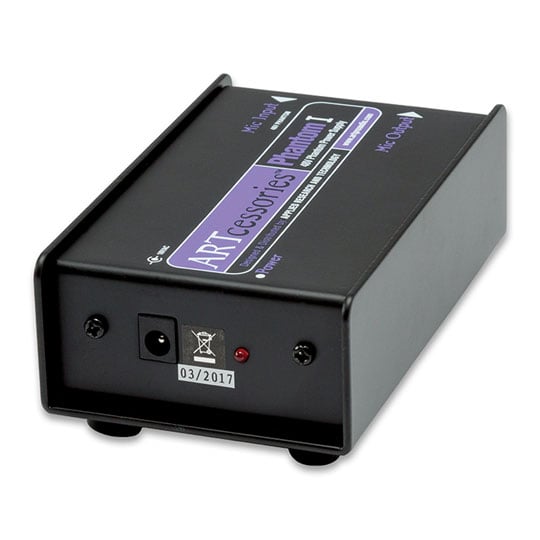

48V Phantom Power Supply
ART - 'Phantom 1'

ART - 'Phantom I'

18V DC Adapter includedDifferent condenser microphones specify varying amounts of required phantom power. As a rule, these ratings can range from 48 volts all the way down to 9 volts. However, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be “more is better.”

For example, a 24-volt condenser mic will run perfectly on 48 volts. In fact, mics rated at as little as 9 volts can often operate on 48 volts, but you should check with the manufacturer first. Conversely, a mic will generally perform best driven by not less than its rated voltage so, for a 48V mic, you would obtain best results with 48 volts of phantom power. The ‘Phantom I’ from ART is the perfect choice for all the above requirements and scenarios.

The Tech Spec

Features Specification
Input Connections XLR female
Output Connections XLR male
Frequency Response 10Hz – 25kHz
Output Phantom Power 48V DC +/- 2V
Output Noise -115 dBV
Current Drain 14mA
Power 18V DC (Adapter included)
Dimensions 5.25×2.75×1.75 inches (130mm x 74mm x 45mm)
Weight 1.3 lbs (315g)
