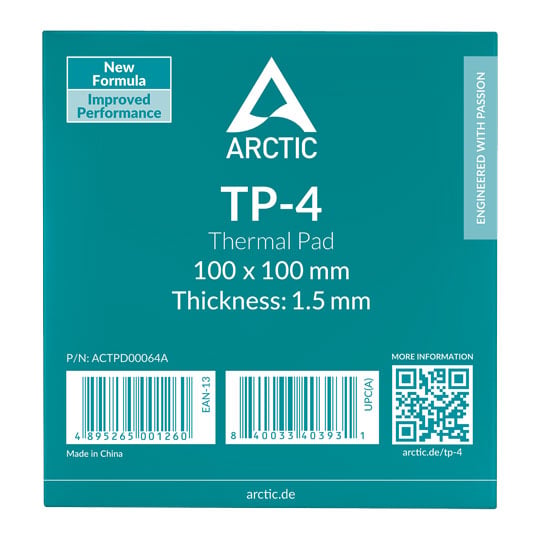

Arctic TP-4 100x100 / 1.5mm Silicon Based Premium Performance Thermal Pad
Arctic TP-4 Thermal Pad, 100x100 / 1.5mm, Silicon-Based, Cuttable, Stackable, Non-Adhesive, Grey
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High Performance — Extremely Soft
The silicone-based TP-4 combines high thermal conductivity with extremely low hardness and reliably compensates for manufacturing tolerances between chips.
Safe Application
Electrically insulating, non-adhesive, and easy to handle — for safe and reliable heat transfer.
Minimizing Thermal Resistance
The thinner the pad, the lower the thermal resistance. Depending on mounting pressure, the TP-4 can be compressed to up to 60% of its original thickness.
Bridging Uneven Surfaces
Adapts optimally to varying chip heights, air gaps, and uneven surfaces to ensure reliable contact.
Available in Various Thicknesses and Sizes
Available in 0.5 mm, 1.0 mm, and 1.5 mm thicknesses as well as multiple sizes. Can be individually cut to size if needed.
Stackable Without Performance Loss
Thanks to its low hardness and low interface resistance, multiple pads can be combined without affecting thermal transfer performance.
Versatile Applications
Ideal for RAM, chipsets, GPUs, consoles, laptops, and many other electronic components. Flexible, vibration-dampening, and easy to cut.
• High-performance 100x100 1.5mm silicone-based thermal pad.
• Extremely soft 50 Shore OO hardness.
• Designed to bridge air gaps and uneven surfaces.
• Conforms to varying chip heights and manufacturing tolerances.
• Compresses to up to 60% of its original thickness.
• Low interface resistance helps minimise thermal resistance.
• Electrically insulating and non-adhesive.
• Flexible and easy to cut to size.
• Suitable for RAM, chipsets, GPUs, consoles, laptops and more.
• Multiple thicknesses and sizes available.
• Stackable without performance loss.
• Vibration-dampening properties.
• Operating temperature range of -40°C to 200°C.
• UL 94 V-0 flammability rating.
