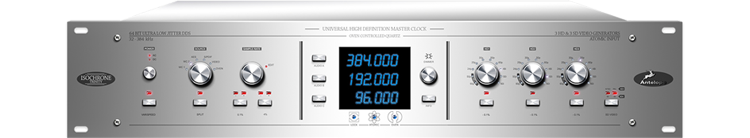

Antelope Audio TRINITY Universal High Definition Master Clock
Antelope Audio TRINITY Professional Grade Universal High Definition Master Clock, HD and SD Video BNC
'A Master Clock That Stands Out'
Antelope Audio - Isochrone Trinity
Master Clock with 9 Independent HD/SD Video
& Audio Generators up to 384kHz with Varispeed
In the fickle world of Audio & Video formats, Trinity is the Master Clock that stands out from the crowd, with the kind of features that others can only aspire to. With dedicated functions and controls, Trinity is the best sounding and most versatile Master Clock available anywhere.
Installed in some of the most prominent audio and post production facilities around the globe, Trinity is in the roots of great percentage of the contemporary music and movie productions. Trinity is also an integral component of some of the largest live concerts and events nowadays
at a glance
• 64-bit DSP Acoustically Focused Clocking
• 384kHz Sample Rate
• Supreme Clocking
Stable Clocking & Advanced
Jitter Management
'the NEXT LEVEL OF PERFECTION'Powered by an ultra stable oven controlled crystal oscillator, Trinity’s completely redesigned timing engine with 4th generation 64-bit Acoustically Focused Clocking provides supremely low jitter and high stability, with distinct sonic advantages that are immediately apparent.
An atomic input makes it a perfect match for the 10M Atomic Clock, while user re-calibration and dual redundant power supply will keep the unit running smoothly and prevent costly downtime.
The Features Which Make It Unique
'AS PRO AS YOU CAN GO'Trinity takes care of requirements that usually would have needed several units. With 3 HD and 2 SD generators the unit locks to and generates all known professional video format, while simultaneously offering 3 independent audio channels capable of 384 kHz with varispeed adjustment in cents or percent!
With its wealth of connectivity, flexibility, and ease of use, Trinity is the ideal linchpin for a modern studio.
Premium Features
64-BIT DSP ACOUSTICALLY
FOCUSED CLOCKINGA new level of detail via 4th Generation of Acoustically Focused Clocking employing 64 bit DSP
SUPREME
CLOCKINGSupremely low jitter thanks to Antelope's Oven Controlled Crystal Oscillator or sync via Atomic Input
384 KHZ SAMPLE
RATESample rate up to 384 kHz, 3 independent & simultaneous audio generators & 3 independent audio channels
The Tech Spec
| Features | Specification | Clock Type | Damping, Pre-Delay, Reverb, Decay, Infinite Switch |
|---|---|
| Inputs | 1 x XLR 3-Pin AES3 Input 1 x RCA Coaxial S/PDIF Input 2 x BNC Word Clock Input 1 x BNC Atomic Clock Input 1 x BNC Video Input |
| Outputs | 4 x XLR 3-Pin AES3 Output 4 x RCA Coaxial S/PDIF Output 16 x BNC Word Clock Output 10 x BNC Video Output |
| AC Input Power | 120 VAC, 60 Hz 230 VAC, 50 Hz |
| AC/DC Power Adapter | 12 VDC |
| Power Consumption | 20 W (Maximum) |
| Rackmount Size | 2 RU |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 19 x 8 x 3.5" / 48.26 x 20.32 x 8.89 cm |
| Weight | 8.8 lb / 4.0 kg |
