32-Channel Audio Interface with Dante, HDX & Thunderbolt 3
Antelope - Galaxy 32 Synergy Core
А proud legacy
still in the making

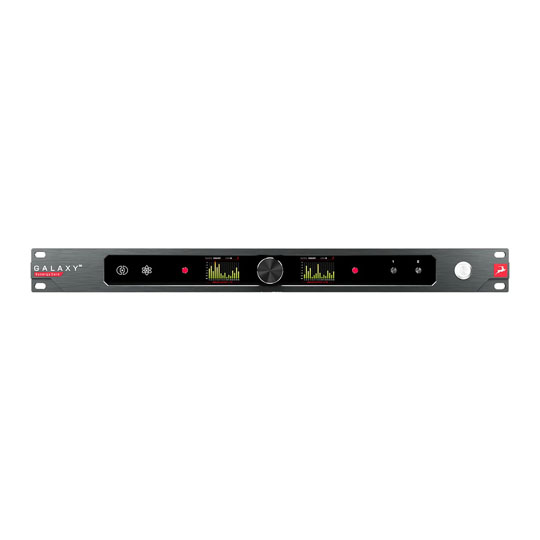

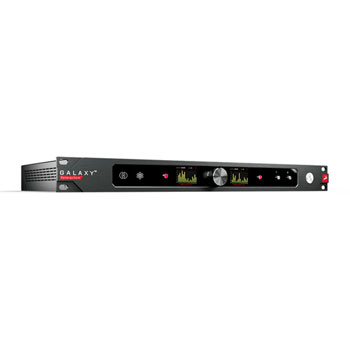

Antelope’s Galaxy 32 Synergy Core raises the bar in this class through expansion of the capabilities of the Orion 32 line with Dante audio networking and Synergy Core processing. Designed and engineered for use in pro recording studios and high-profile production and broadcast houses, this powerful interface delivers 32 channels of analogue I/O with mastering grade AD/DA conversion and clocking, alongside the industry standard HDX and Thunderbolt for quick and simple integration into your setup.
at a glance
• Dante, HDX & Thunderbolt 3 Connectivity
• 32 Channels of AD/DA Conversion
• Up to 24-Bit / 192 kHz Resolution
• AC Powered / Mac and Windows
• Optical MADI, ADAT, and S/PDIF I/O
• Includes 37 Real-Time Plug-Ins
Connectivity
Full integration, more flexibility The multi-channel box allows you to connect all your gear into an 1U rack-mountable chassis. Aside from taking on the role of a patch bay, the interface handles all routing, recording, and monitoring and allows you to easily interconnect multiple rooms. Placing the Galaxy 32 Synergy Core as the hub of your setup means less complexity and pristine conversion for all connected gear.
32 Analogue Ins
32 Analogue Outs
Audio over
IP
dual
hdx ports
thunderbolt 3
port
mac/win custom drivers
Transfer Audio Easily with Dante
DANTE® AUDIO OVER IPThe interface utilizes Dante to seamlessly fit into your existing audio-over-IP network, or as the foundation of your very first network for digital audio transfer.
With Galaxy 32 Synergy Core as the hub of your interconnected system you have 64 channels of audio via Dante as well as the entire I/O of the device available at all times. Simply connect a LAN Ethernet cable and your entire facility becomes a beneficiary of the interface’s features and conversion. A secondary, mirrored port is also available for redundancy.
Superior Pro Tools
HDX integration

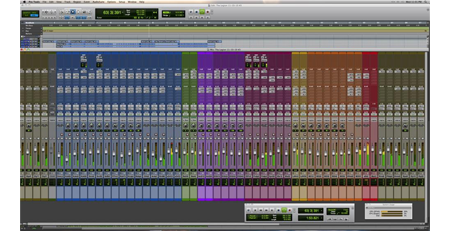

HDX CONNECTIONGalaxy 32 Synergy Core integrates seamlessly with Pro Tools through two HDX ports and allows you to maintain 64 I/O channels even at 192kHz, thanks to a unique FPGA configuration.
That means, you will no longer need to stack up additional hardware to record and mix so many channels at such a high sample rate. Combined with HD Native or HDX’s low latency monitoring and delay compensation for hardware inserts, the Galaxy 32 Synergy Core’s extensive connectivity and pristine conversion make your Pro Tools system as formidable as it gets.
Workflow-Enhancing Features
VIRTUAL
PATCH-BAYThe signal routing of the Galaxy 32 Synergy Core boils down to a simple drag and drop of the color-coded analog and digital inputs and outputs. With the virtual patch-bay you can distribute a single source to multiple destinations at the same time for creative routing scenarios which can be saved as presets for later use. Once the cables go into the interface, cable management is one less thing to worry about in the studio.
ONBOARD
LOW LATENCY MIXERSThe four onboard low-latency stereo mixers with 32 input channels each, can be split into individual cue mixes and sub-mixes, that allow you to adjust levels and panning while applying reverb and other effects. This makes the mixers ideal for monitoring and summing.
SIMULTANEOUS USE
OF ALL DIGITAL PORTSThe Galaxy 32 Synergy Core is the only interface that allows you to use the Thunderbolt, Dante, HDX, MADI and ADAT ports all at once within a single hardware frame. The channel count of the individual ports remains the same when using them simultaneously and is available at all times. This gives you the flexibility to work in Pro Tools over HDX and another DAW application over Thunderbolt while using a total of up to 598 channels of I/O at the same time.
LOW LATENCY
DIRECT MONITORINGRecord and monitor with analog-modeled effects processed with imperceptible latency in real-time. This feature allows you to use the onboard effects as you would use outboard effects – processing your sound directly on the way in, thus committing to your sound early in the process.
STANDALONE
OPERATIONThe interface uses a proprietary client/server system, which allows you to work without being plugged into a computer once you establish connection to a local network. This feature is ideal when using the I/O and conversion of the interface for live recording.
CUSTOMIZABLE
PRESETSCreate custom presets by adjusting signal routing, levels, audio mixers, and effects. Everything can be custom configured for individual recording sessions, live events, and pre/post-production sessions. Preset files can be shared across multiple studios and devices to ease workload and optimize the production process.
Synergy Core Collection
More processing
than you can imagineThe onboard Synergy Core platform gives you access to a wide variety of effects modeled after iconic studio equipment. They can be applied in real-time during monitoring, post-production, and live recording with latency far below the threshold of noticeability and no host CPU load. The onboard Synergy Core contains the processing power of a complex multi-rack setup which enables you to load up to 128 instances of your favorite signal processors in a single session.
At any time, you can expand your collection by purchasing more analog-modeled effects such as Grove Hill’s Liverpool, and 3rd party effects like Antares’ Auto-Tune.
32Virtual Racks
8Effects Each
128Effects Instances

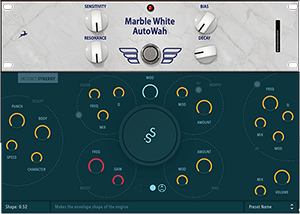

pedals, delay
& modulation

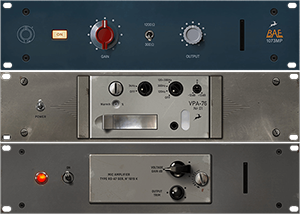

preamps &
channel strips

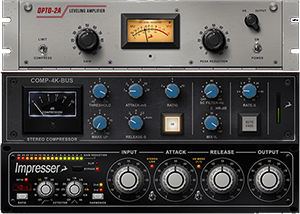

dynamics
processors
Now Atmos-Ready
a new level of immersionThe Galaxy 32 Synergy Core now becomes the perfect interface for any surround or immersive audio setup – from studio use such as music mixing and mastering, film, TV, game and VR audio production to live use utilizing multi-channel speaker array sound systems for venue PA use, theater and performance spaces, art installations, etc.
More than 23 format
variations
supportedSeamless setup of a wide range of formats, all the way
from stereo and 2.1, up to surround and immersive
formats with Dolby Atmos 9.1.6 at the 16-channel limit.
Comprehensive speaker calibration capabilitiesEach of the sixteen supported channels utilizes an 8-band parametric equalizer, independent level adjustment and delay line, for speaker tuning and room correction.
Powerful monitoring
controller
built-inColor-coded, speaker layout visual representation allows
mute and solo functionality, with metering and output
volume controls, enabling seamless workflow.
Broad compatibility
via full
I/O accessHardly any setup configuration is left unaccounted for
with access to the interface’s Thunderbolt,TM Dante, MADI,
HDX, ADAT, S/PDIF or analog line-level audio connectivity!
Bass management for
low-fq
content monitoringFlexible crossover filters on each speaker channel allow
for sending low-frequency information to the LFE
channel, to facilitate mixing on monitoring setups lacking
full-range speakers across the setup.
Features
• Wide compatibility, both setup and format wise
• Any combination of the interface’s Dante, MADI,
HDX, ADAT, S/PDIF and analog I/O
is available
• 23 formats with path order selection readily
available, including 2.1, 5.1, 7.1 surround sound
and 5.1.2, 7.1.4, 9.1.6 Dolby Atmos to name a few
• Other channel/object/scene-based formats
within the 16-channel limit are also configurable
via the interface’s signal routing matrix
• Monitor controller functionality for improved
mixing workflow
• Color-coded speaker selection with mute, solo
and metering functionality
• Main speaker volume level also available via
front panel encoder>
The Tech Spec
| Features | Specification | Form Factor | 2 x 1.8" / 4.6 cm Color LCD |
|---|---|
| Channels of I/O | Analog:
32 Inputs / 32 Outputs Dante: 64 Inputs / 64 Outputs at 44.1/48 kHz DigiLink: 64 Inputs / 64 Outputs at 192 kHz Thunderbolt: 64 Inputs / 64 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |

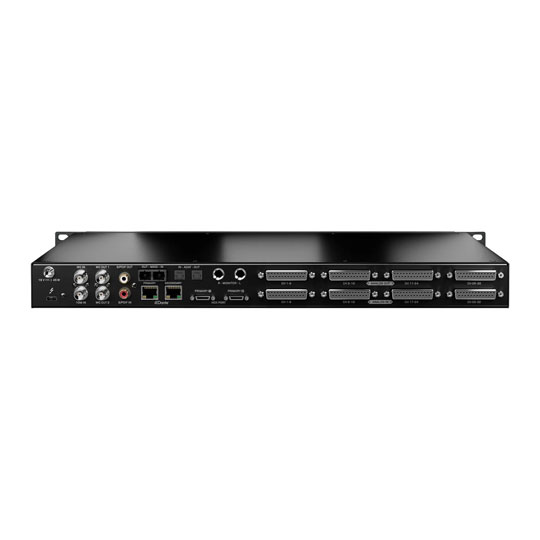

| Analogue Audio I/O | 4 x DB-25 25-Pin Balanced Line Input (AES 59/Tascam Pinout) 4 x DB-25 25-Pin Balanced Line Output (AES 59/Tascam Pinout) 2 x 1/4" TRS Balanced Monitor Output |
| Digital Audio I/O | 1 x SC-Plug Optical MADI Input (Dual-Wire, S/MUX Support) 1 x SC-Plug Optical MADI Output (Dual-Wire, S/MUX Support) 1 x TOSLINK Optical ADAT Input (S/MUX Support) 1 x TOSLINK Optical ADAT Output (S/MUX Support) 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 1 x USB Type-C (Thunderbolt 3) 2 x DigiLink Mini (Avid Proprietary) |
| Sync I/O | 1 x BNC Atomic Clock Input 1 x BNC Word Clock Input 2 x BNC Word Clock Output |
| Network I/O | 2 x RJ45 Dante |
| Gain/Trim Range | DB-25 Line Inputs:
+12 dBu to +22 dBu (in 1 dB Steps) DB-25 Line Outputs: -∞ to +22 dBu (in 1 dB Steps) 1/4" Monitor Outputs: -∞ to +22 dBu (in 1 dB Steps) |
| Impedance | DB-25 Line Inputs:
11.2 Kilohms (Balanced) DB-25 Line Outputs: 56 Ohms (Balanced) 1/4" Monitor Outputs: 56 Ohms |
| Dynamic Range | DB-25 Line Inputs:
122 dB DB-25 Line Outputs: 128 dB 1/4" Monitor Outputs: 130 dB |
| THD+N | DB-25 Line Inputs:
-116 dB (A-Weighted) DB-25 Line Outputs: -115 dB (A-Weighted) 1/4" Monitor Outputs: -115 dB (A-Weighted) |
| Sample Rates | Up to 192 kHz |
| Bit Depths | Up to 24-Bit |
| Sync Sources | ADAT, Atomic Clock, Dante, Internal, MADI, S/PDIF, Word Clock |
| Clocking | Word Clock: Input Termination: 75 Ohms Input Voltage: 3 V p-p Output Voltage: 3 V p-p |
| OS Compatibility | macOS Windows |
| Included Plug-Ins | Preamp & Channel Strip:
BA-31
Gyraf Gyratec IX Equalization: BAE-1023 BAE-1084 NEU-PEV Clear Q NEU-W492 NEU-W495 VEQ-1A VEQ-55A VEQ-4K Black VEQ-4K Brown VEQ-4K Orange VEQ-4K Pink VEQ-HA32C VEQ-HLF VEQ-STU 089 VEQ-STU 169 VEQ-STU 900 VMEQ-5 Dynamics: ALT-436C BAE 10DCF FET-A76 FET-A78 PowerEX PowerFFC PowerGate Stay-Levin SMT-100A Tube 176 VCA160 X903 Reverb & Room: Auraverb Special Processing: Marble White AutoWah Vari-Speed Tremolo Master De-Esser Tuning: A-Tuner |
| Dimensions | 19 x 11 x 1.7" / 48.3 x 27.9 x 4.4 cm |
| Rackmount Size | 1 RU (with Included Hardware) |
