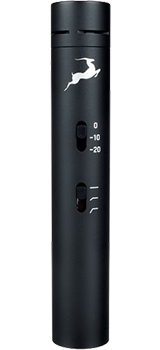

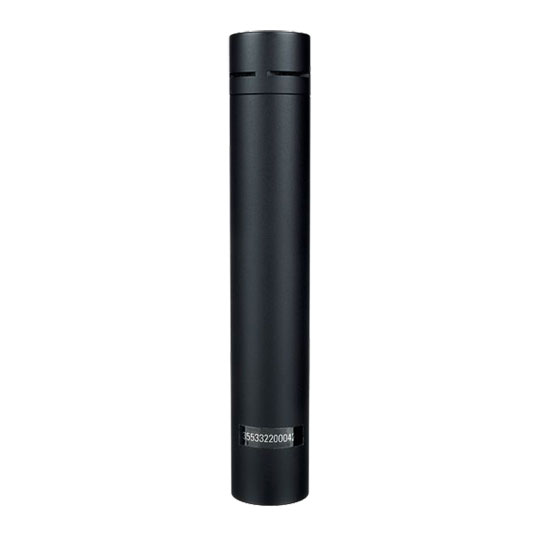

Antelope Audio Edge Note Emulation Microphone
Antelope Audio - Edge Note Emulation Microphone with 13 Emulations, 146dB Max SPL, -10db & -20dB Pad
- SCANPROTECT Protect against installation damage for 28 days. More info
Emulation Microphone
Antelope Audio - Edge Note
One mic. 13 emulations.The Antelope Edge Note modeling microphone is the perfect audio solution for capturing a wide range of musical instruments at incredible volumes. Featuring 13 classic mic emulations, it’s one of the most versatile mic modeling options for instrumentalists, recording engineers, and studio owners alike. With an incredible SPL of 146 dB, the Edge Note has been designed to provide clear recordings for even the loudest sources, such as drum solos to trumpet trills, this small diaphragm condenser mic records without clipping the converter.
69dB(A)SNR
20Hz - 20kHzFrequency Response
25dB(A)Self-Noise
Amazing Features
• Microphone emulations can recreate 13 classic microphone models
• Back-electret design delivers transparent, balanced sound, & accurate transient responses
• Cardioid polar pattern suits multiple recording purposes
• 20Hz–20kHz frequency response covers the full audible spectrum
• -10db and -20dB pad attenuation switch
13 Iconic Studio Microphones In One
MICROPHONE EMULATIONSThe Edge Note isn't just a small condenser mic, it’s 13 digital recreations of classic vintage microphones. Antelope Audio have assembled a diverse collection of revered models that were hand-selected as the top picks for many award-winning engineers and producers. The accuracy of these mic emulations keeps the same frequency response and colour of the originals.
Enhanced Recording Features

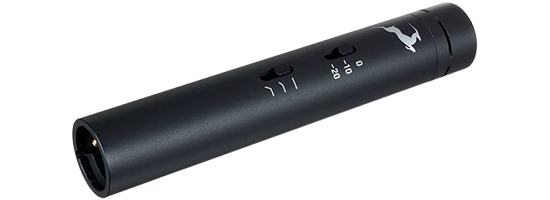

High-pass filterThis pencil mic includes a high-pass filter with two steps at 75Hz and 115Hz. The result is reduced lower frequencies and a cleaner, tighter low-end recording.
Pad AttenuatorThe Edge Note’s pad lets you to reduce the input signal with -10dB or -20dB. Keeping the detail and realism without clipping or distortion.
Accurate Audio Capturing
MultipurposeEdge Note is the best small condenser microphone for accurately recording loud sources such as piercing snares and hi-hats, sharp brass instruments, gentle guitars, and sweeping strings.

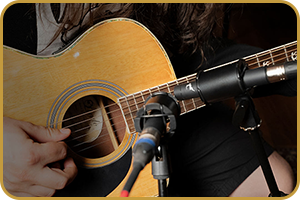

Acoustic Guitar

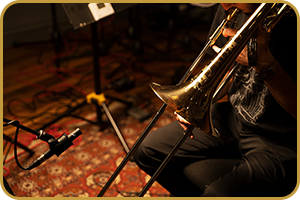

Brass Instruments

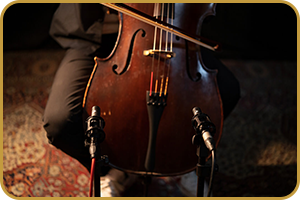

Stringed Instruments
Edge Note | One Mic. 13 Emulations.
The Tech Spec
| Features | Specification | Capsule | Single Capsule |
|---|---|
| Diaphragm | Small condenser |
| Diaphragm Diameter | 16.1mm |
| Polar Pattern | Cardioid |
| Frequency Response | 20Hz - 20kHz |
| Self-Noise | 25dB(A) |
| SNR | 69dB(A) |
| Sensitivity | -42dB | 8mV/Pa (+/-3dB |
| Power Requirements | 48V DC Phantom Power |
| Output Impedance | 65 Ohms @ 1kHz |
| Output Connector | 3-pin male XLR |
| Output Channels | Single |
| Dimensions (mic body) | 4.5″ x 0.8″ (114mm x 20mm) |
| In The Box | Shock Mount Getting Started Leaflet |
