Amaran PT2c 2ft LED Pixel Tube Light
Amaran PT2c, 2ft LED Pixel Tube, 11.5W, 2700K - 10000K, CRI 95, TLCI 98, 195Lux@1m, Location/Studio
Email me when the availability or price changes
amaran - 'PT2c'
2-foot LED Pixel Tube
LINEAR AND LIGHTWEIGHTThe amaran PT2c is a 2-foot battery-powered pixel tube ideal for filmmakers and lighting designers who need a portable tube light capable of producing unique pixel effects. Available in 1-foot, 2-foot and 4-foot lengths all featuring multiple Pixel FX, RGBWW colour quality, Sidus Link app & DMX(1) control, and USB-C rechargeable batteries pack into their sleek form factor.
Featuring 8 built-in pixels that can be independently adjusted via the Sidus Link app nad 7 pre-programmed Pixel FX for a variety of scenarios in addition to 9 System FX. The PT4c’s RGBWW LED chipset produces stellar colour quality and accurate skin tones throughout its CCT range of 2,700k to 10,000K with full green-magenta control, achieving high CRI (95), TLCI (98) and SSI values across the board, with an SSI (Tungsten) of 85 and SSI (D56) of 75.
Freedom to Create
Designed for CreatorsThe PT2c shines as an effects, fill, eye light, and so much more. Whether used for practical lighting backgrounds, producing unique lighting effects for long-exposure photography, creating linear reflections over intricate sets for product cinematography, or adding visual interest to stylized music videos and commercials, the PT2c grants you the freedom to get creative and bring your lighting designs to life.
8 Lighting Zones
Perfect Pixel CapabilitiesWith 8 lighting zones that can be independently controlled, the PT2c’s pixel capabilities introduce new and exciting avenues to the amaran family and outshine other lights with a new layer of effects. Use its 7 pre-programmed Pixel FX to create some truly unique and dynamic pixelated effects across its multiple pixels and take your creations to the next level.
CRI 95 RGBWW LED Light
Colour Accurate amaran consistently delivers stellar colour quality with its RGBWW LED chipset, and the Pixel Tubes are no different. Adjust the hue, saturation, and intensity of your pixel light with white point CCT tunability from 2,700K to 10,000K with full plus/minus green controls. And with a CRI of 95, TLCI of 98, and Tungsten SSI of 85, you can be sure that the Pixel Tubes will elevate your productions with accurate colours.
Built-in 38.5Wh Battery
BUILT-IN BATTERIESThe PT2c is powered by a 38.5Wh internal Lithium-ion battery for up to 170 minutes of run time, and can be charged via USB-C or even fast charge at 20W with PD Quick Charging, reaching its full capacity in under 3 hours. The integrated batteries can improve your workflow on-set by granting you the flexibility of placing or hiding the LED Pixel Tubes virtually anywhere.
Functional Design

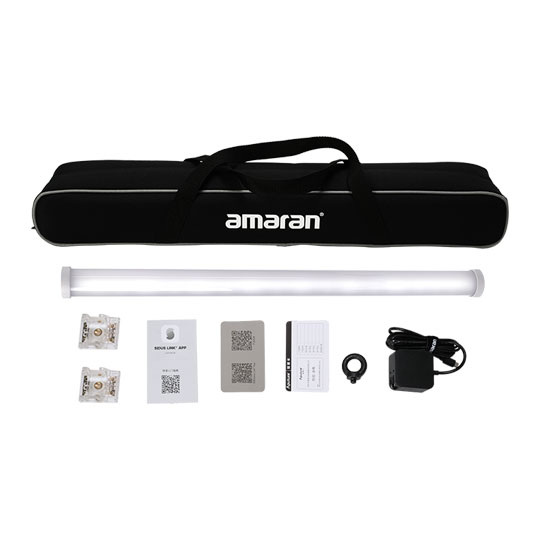

ENDLESS MOUNTING POSSIBILITIESFor enhanced versatility, the PT2c is equipped with a 5-sided end cap design, allowing the pixelated light to be positioned at 5 different angles, from 0º to 45º, 90º, 135º, and 180º of rotation. And when attaching the included magnetic T12 brackets or 3/8-16in eye bolt, creating interesting visuals and set pieces have never been easier.
Sidus Link
ADVANCED CONTROLSWith the power of the Sidus Link Bluetooth app, you can control all of your Aputure and amaran lights in a scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, the new amaran USB-C to DMX Adapter* unlocks DMX control while simultaneously charging your pixelated tube light, making your workflow even more efficient and seamless.
* amaran Type-C to DMX Adapter with Type-C Input sold separately.
Available in 2-Light Kit
PRODUCTION READYFor For filmmakers looking for more lights for in-camera practicals, symmetrical lighting for one or multiple subjects, and twice the output of a standalone fixture, the PT2c 2-Light Production Kit unlocks even more possibilities to enhance your frame, coming fully equipped with additional accessories for all your creative needs.
Available Here
Illumination (lux/fc)
| CCT | Distance | 2,700K | 0.5m: 586 lux / 54 fc 1.0m: 180 lux / 17 fc |
|---|---|
| 3,200K | 0.5m: 595 lux / 55 fc 1.0m: 181 lux / 17 fc |
| 4,300K | 0.5m: 613 lux / 57 fc 1.0m: 185 lux / 17 fc |
| 5,600K | 0.5m: 647 lux / 60 fc 1.0m: 194 lux / 18 fc |
| 6,500K | 0.5m: 643 lux / 60 fc 1.0m: 330 lux / 31 fc |
| 7,500K | 0.5m: 612 lux / 57 fc 1.0m: 185 lux / 17 fc |
| 10,000K | 0.5m: 563 lux / 52 fc 1.0m: 170 lux / 16 fc |
| Red | 0.5m: 354 lux / 33 fc 1.0m: 113 lux / 10 fc |
| Green | 0.5m: 539 lux / 50 fc 1.0m: 165 lux / 15 fc |
| Blue | 0.5m: 121 lux / 11 fc 1.0m: 37 lux / 3 fc |
PT2c Specifications
| Features | Specification | CCT | 2,700K – 10,000K |
|---|---|
| CRI (@ 5,600K) | 95 |
| TLCI (@ 5,600K) | 98 |
| CQS (@ 5,600K) | 96 |
| SSI (D56) | 75 |
| SSI (Tungsten) | 85 |
| TM-30 RF (@ 5,600K) | 92 |
| TM-30 RG (@ 5,600K) | 100 |
| Max Power Output | 11.5W |
| Max Power Consumption | 16W |
| Pixel Mapping | 8 Pixels |
| Lumens | 721lm |
| Beam Angle | 180º |
| Charging Input | USB Type-C PD 20W |
| Power Supply | USB PD 5V/9V/12V/15V/20V, 1.8m Cable |
| Battery Voltage | 14.8V |
| Battery Capacity | 2600mAh, 38.48Wh |
| Runtime | Approx. 170 Mins @ 100% Output Approx. 210 Mins @ 75% Output Approx. 294 Mins @ 50% Output Approx. 668 Mins @ 10% Output |
| Charge Time | Approx. 170 Mins (20V/1A) |
| Operating Temperature | 10°C ~ 40°C |
| Control Methods | On-board, Sidus Link App, DMX via USB Type-C (Sold Separately) |
| Firmware Upgradeable | Sidus Link |
| Wireless Operating Range | ≤80m / ≤262.5ft (Bluetooth) |
| Screen Type | TFT |
| IP Rating | IP20 |
| Dimensions | Fixture: φ42 x 600 mm Magnetic T12 Bracket: 54 x 46 x 42mm Power Adapter : 58 x 58 x 29mm Eyebolt: 36 x 20 x 40mm Carrying Case: 650 x 110 x 100mm |
| Weight | Fixture: 705g Magnetic T12 Bracket: 54g Power Adapter : 185g Eyebolt: 41g Total with Case: 1.55kg |
