Amaran F22x

Amaran F22x, 200W Output 2’x2’ Bi-Color Flexible LED Mat, 6960+ Lux, 2500K - 7500K CCT, CRI:95+ TLCI:98+, 9 FX

Thumbnail 1 : Amaran F22x Thumbnail 2 : Amaran F22x Thumbnail 3 : Amaran F22x Thumbnail 4 : Amaran F22x
Scan code: LN131566 Manufacturer code: 6971842183296
£670.99Item currently awaiting an ETA
Pre order
From £23.50 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £60.79
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £670.99
Total inc. interest: £729.49
Monthly Payment: £32.77
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £670.99
Total inc. interest: £786.31
Monthly Payment: £23.50
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £670.99
Total inc. interest: £845.85
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £17.83 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Amaran - 'F22x'

Amaran F22x

2'x2' Bi-Color LED Flexible Fabric LightThe Amaran F22x is a 2’x2’ flexible LED mat designed with filmmakers, videographers, content creators and even photographers in mind. As an ultra-light, ultra-thin fabric light, the F22x is compatible a wide range of use cases and exceeds expectations in on-the-go situations and tight spaces with the ability to fold compactly, to work perfectly as a close-up key light. The F22x features a high-output bi-colour chipset with an expanded CCT range from 2,500K to 7,500K to match a massive variety of white light environments.

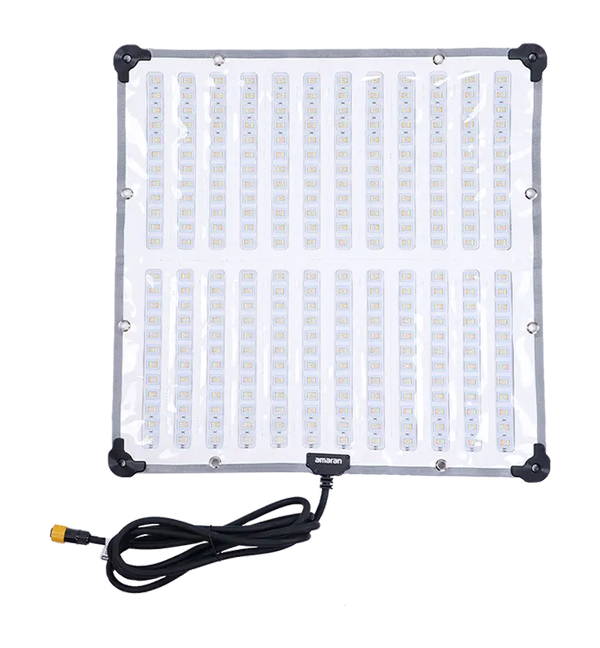

2’x2’ Ultra-Lightweight Flexible LED Mat

Amaran F22x

BI-COLOUR FLEXIBLE MATThe Amaran F22x is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and colour rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution.

On-The-Go Travel

Amaran F22x

2X2 FORM FACTORAs an ultra-light, ultra-thin fabric light, the F22x is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ square form factor allows the F22x to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.

CCT Range From 2,500K To 7,500K

Amaran F22x

OUTSTANDING LIGHT OUTPUTWith 200W of output power, the ultra-lightweight bi-colour flexible panel produces unmatched strength, outputting 6,960+ lux at 1 meter. You can also tune the F22x’s high-output bi-colour chipset over its wide CCT range from 2,500K to 7,500K to match a variety of white light environments, coupled with stepless dimming from 0 to 100%, frequency selection for tuning out flicker, and 9 built-in lighting FX.

Compact Setup Design

Amaran F22x

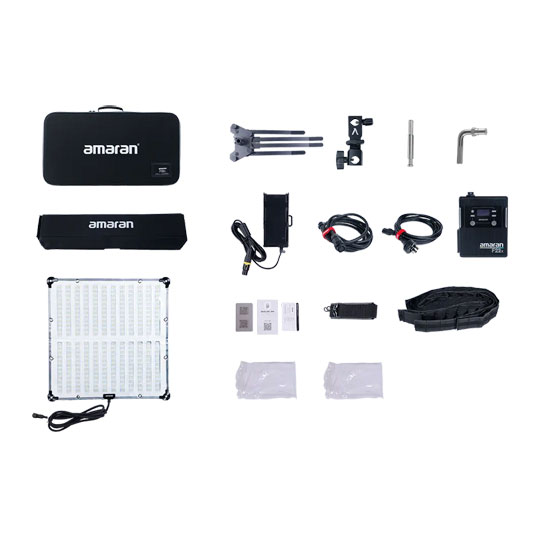

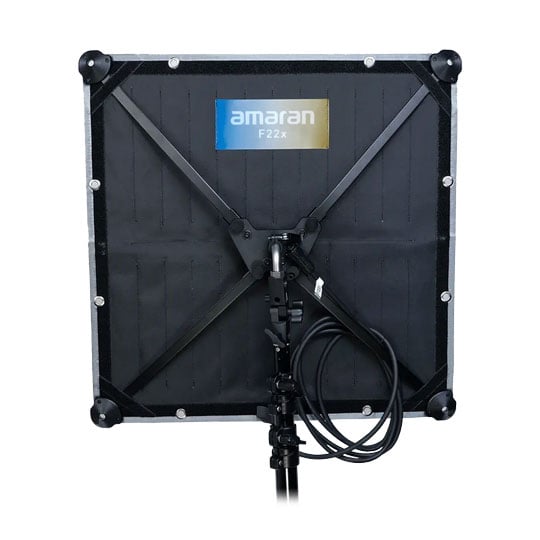

COMPACT SETUPThe F22x and its compact setup design is ideal for all types of filmmakers and creators. The F22x includes a compact, folding X-Frame to quickly build the F22x into a rigid panel with ease. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter, or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount.

A Seamless User Experience

Amaran F22x

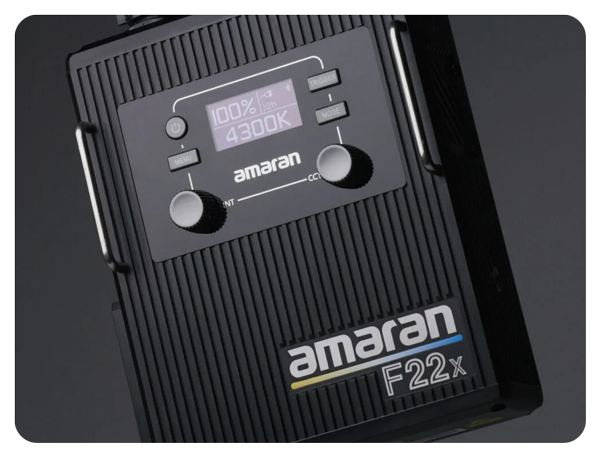

POWER SOLUTIONSFor creators looking for a compact and portable lighting solution with a seamless user experience, the F22x control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.

Included Soft Box

Amaran F22x

SOFT DIFFUSIONTo add a beautifully controlled soft light to your scene, attach the included soft box, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22x can also be combined with the Amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.

Mobile App Control

Amaran F22x

SIDUS LINK APPFor content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and Amaran ecosystems to control the F22x. With the Source Match, Colour Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect colour for the scene has never been easier.

Introducing The F22x

Amaran F22x

The Tech Spec

Features Specification
CCT 2500K-7500K
CRI ≥95
TLCI ≥98
CQS ≥96
TM-30 RF (Average) 94
TM-30 RG (Average) 104
SSI (Tungsten) ≥81
SSI (D56) ≥72
Beam Angle 180°
Max Power Output ≤200W
Max Power Consumption ≤240W
Operating Current 5A
AC Power Supply 48V DC
D-Tap Battery 12-28.8V DC
Battery Compatibility 16.8V, 26V, 28.8V full power output
DC Input (3m) DC Self-locking
AC Power Cable Self-locking IEC C13 AC Power Cable (4m)
Operating Temperature -10°C - 40°C / -4°F - 113°F
Control Methods On-board, Sidus Link App, DMX
Connectivity Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range ≥80m / 262.5ft
Firmware Upgradeable Sidus Link OTA
Display Type OLED
Fixture Cooling Method Natural Dissipation
Control Box Cooling Method Natural Dissipation
Umbrella Holder Yes
Soft Box Yes
Mounting 1/4-20in * 3, Tilting Support Column
Estimated LED Lifetime (L70) 50,000 Hours
Estimated Color Shift Over Lifetime (CCT) 2% over 6,000 Hours
Certifications CE, FCC, cTUVus, KC, NCC, ROHS
