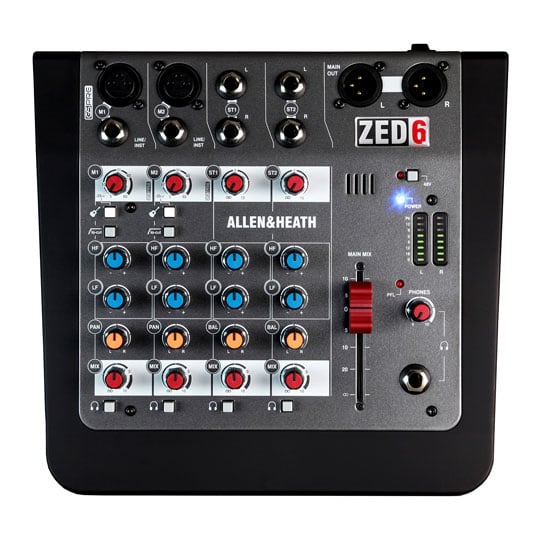

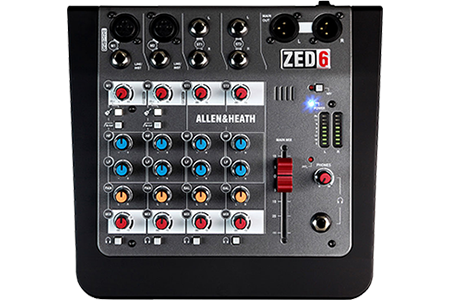

Allen & Heath ZED-6 Compact 6 Input Analogue Mixer
Allen & Heath ZED-6 Analogue Mixer, 6-Channels, 2 High Impedance DI Inputs, 48V Phantom Power
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Allen & Heath - ZED-6
Compact 6 Input Analogue Mixer
Ideal For The Quality ConsciousThe Allen & Heath ZED-6 has been designed for musicians, singer / songwriters and venues in search of Allen & Heath’s renowned build and audio quality in a compact, portable format. If you're bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6 is a versatile tool for every step of the creative process.
Made using a GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED features exceptionally low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will love that the ZED-6 comes with a pair of Guitar DI high impedance inputs, so guitars can be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.
Amazing Features
• 2 Mic / Line Inputs with separate XLR and TRS jack sockets
• 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
• Lo-cut filter for cleaning up unwanted low frequency noise
• 2 band EQ for easy creative and corrective tonal shaping
• 2 Stereo Inputs with TRS jack sockets
Exceptional Audio Quality
Renowned TechnologyZED-6 features an impressive new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console.
Known as GSPre, the preamps deliver exceptionally low noise and huge headroom, and the warmth and depth that Allen & Heath’s analogue range is known for.
For tonal shaping, the precise MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.
Performance You Can Rely On
ROAD TOUGHEvery ZED mixer is designed and made to Allen & Heath’s legendary touring grade standards to provide a long life in challenging environments. All channels are on individual, vertical circuit boards and all rotary controls are fixed to the front panel with a steel nut to protect against impact damage.
MADE FOR GUITARSZED-6 features two Guitar DI high impedance jack inputs, allowing guitars to be plugged directly into the mixer without the need for DI boxes. That’s one less piece of gear to buy, carry and set up.
IT’S AN ALLEN & HEATHAllen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality remains.
Jam - Perform - Record - Share
Plug Straight In ZED-6, ZED-6FX and ZEDi-8 have been created for musicians, singer / songwriters and venues seeking Allen & Heath’s renowned build and audio quality in a compact, portable format. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED is a versatile companion for every step of the creative journey.
The Tech Spec
| Features | Specification | Type | Analogue mixer |
|---|---|
| Channels | 6 |
| Faders | 1 x 60mm Master Mix fader |
| Inputs - Mic Preamps | 2 |
| Phantom Power | 2 |
| Inputs - Line | 2 x 1/4" (line/instrument) |
| Inputs - Other | 4 x 1/4" TRS (stereo paired) |
| Outputs - Main | 2 x XLR (left, right) |
| Headphones | 1 x 1/4" |
| EQ Bands | 2-band EQ |
| Dimensions | Height - 3.5" Width - 9.8" Depth 9.3" |
| Weight | 2.8 lbs |
| Manufacturer Part Number | AH-ZED6 |
